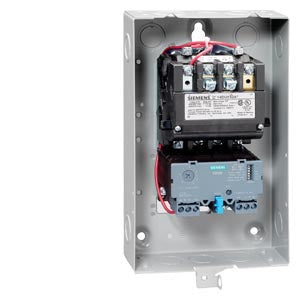

14DUB32BA - Siemens 3 Pole 27A 600V Class 14 NEMA 1 Non-Reversing Motor Starter with Solid-State Overload Relay, 110-240VAC Coil

14DUB32BA

This heavy-duty full voltage starter features a solid-state overload relay, automatic/manual/remote reset, and is designed for demanding industrial applications. It is housed in a NEMA 1 enclosure, ensuring protection against dust and light splashing. The starter supports a wide range of coil voltages and is rated for high cycle life, making it a durable choice for continuous operation.

Key Specifications
• Amperage: 27A (main contacts), 0.75Ð3.4A (overload relay range)
• Voltage: 600V AC (load), 110Ð120/220Ð240V AC (coil, 60 Hz)
• Poles: 3
• Mounting Type: Screw terminal, NEMA 1 enclosure
• Interrupt Rating: Not specified in available data
• Series/Frame: Class 14, NEMA Size 1
• Trip Unit: Solid-state overload relay
• Certifications: UL listed (auxiliary contacts: 10A@600VAC, 5A@600VDC)
• Horsepower: 1/2 HP @ 208V, 3/4 HP @ 230V, 1-1/2 HP @ 480V, 2 HP @ 600V
• Operating Cycles: 10,000,000
• Dimensions: 7" (more...)


  Specifications

  • Part Number: 14DUB32BA
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Family : Class 14
  • Type : 14DU
  • Voltage : 600
  • Amperage : 4
  • Phase : 3
  • Poles : 3
  • Horse Power : HP @ 3 Phase - 208V 1/2 hp HP @ 3 Phase - 240V 3/4 hp HP @ 3 Phase - 480V 1 1/2 hp
  • Configuration : Non-Reversing
  • Aux Contacts : 1NO
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220
  • Nema Rating : 1
  • Amperage Maximum : 3.4
  • Amperage Minimum : 0.75
  • Enclosure : 1



  Product Data

  • UPC : 783087943520
  • GTIN : 00783087943520
  • Country of Origin : Mexico
  • Dimensions : 6.41 in x 10.97 in
  • Weight : 8.025
  • Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
