14DUB32AA - Siemens Class 14 Motor Starter, 3 Pole, 3 Phase, 600V, 0.75-3.4A, Solid-State Overload Relay, Size 1, Non-Reversing, 110-120/220-240VAC Coil

14DUB32AA

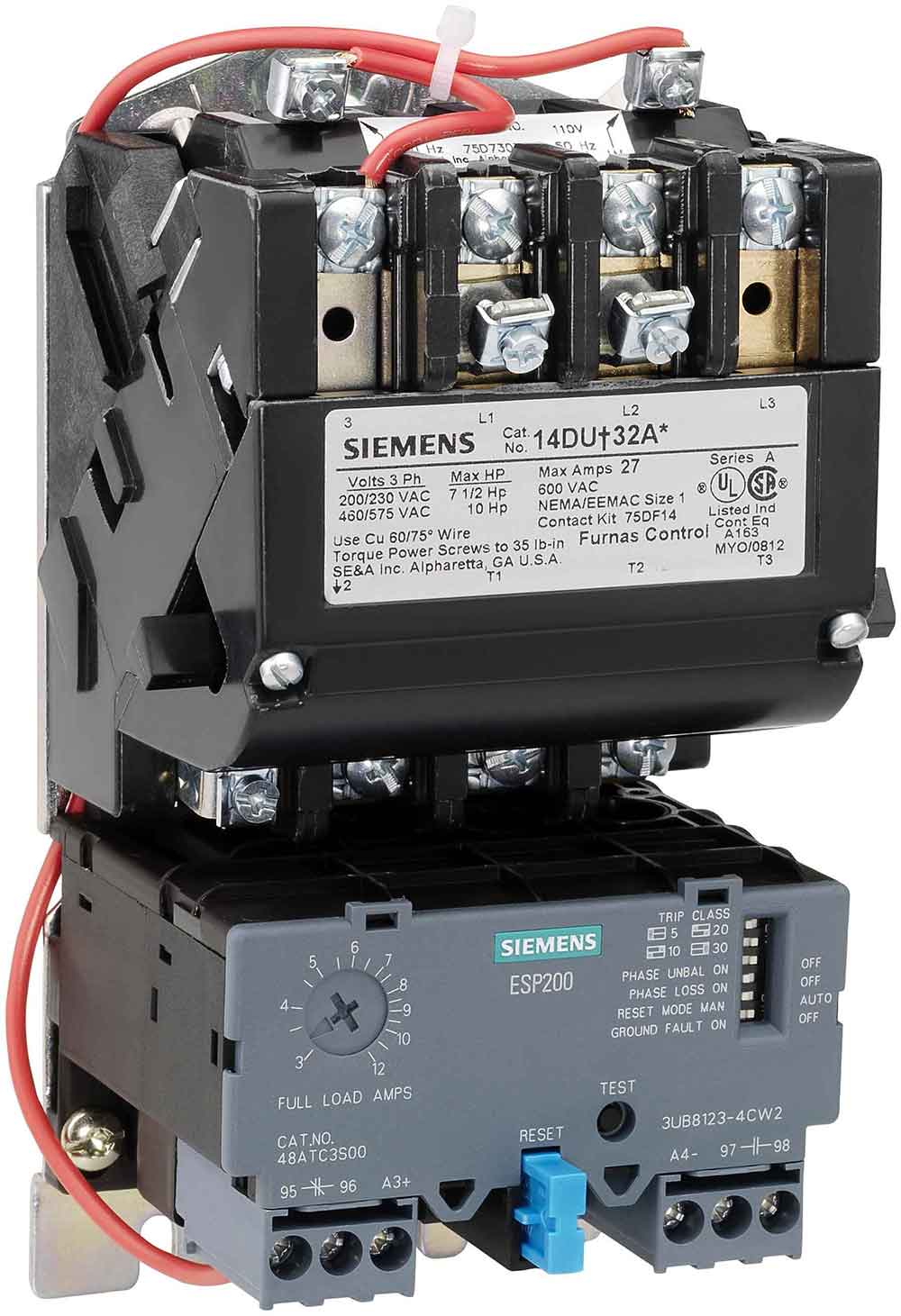

14DUB32AA Siemens Class 14 Motor Starter is a three-phase, non-reversing, full voltage starter designed for reliable motor control in industrial applications.

This solid-state overload relay starter features a Size 1 frame, 3 poles, and is rated for 600VAC. It is suitable for manual or automatic operation and is engineered for precise overload protection with a 0.75-3.4A adjustable trip range. The coil operates at 110-120/220-240VAC, 60Hz, and the unit is designed for easy integration into motor control centers.

Key Specifications
• Manufacturer: Siemens
• Part Number: 14DUB32AA
• Series/Frame: Class 14, Size 1
• Mounting Type: Combination (manual/automatic)
• Poles: 3
• Voltage: 600VAC
• Amperage: 0.75-3.4A (overload relay range)
• Trip Unit: Solid-state overload relay
• Coil Voltage: 110-120/220-240VAC, 60Hz
• Operation: Non-reversing
• Certifications: Not specified in available data
• Interrupt Rating: Not specified in available data

At Essential Parts, we offer &l(more...)

Specifications

• Part Number: 14DUB32AA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14DU
• Voltage : 600
• Amperage : 4
• Phase : 3
• Poles : 3
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Horse Power : HP @ 3 Phase - 208V 1/2 hp HP @ 3 Phase - 240V 3/4 hp HP @ 3 Phase - 480V 1 1/2 hp
• Configuration : Non-Reversing
• Aux Contacts : 1NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 1
• Amperage Maximum : 3.4
• Amperage Minimum : 0.75

Product Data

• UPC : 783087817784
• GTIN : 00783087817784
• Country of Origin : Mexico
• Dimensions : 1.52 x 1.114 x 0.76 inch
• Weight : 3
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
