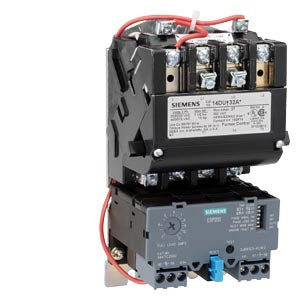

14DUB32AC - Siemens 3 Pole 600V 27A NEMA Size 1 Open Motor Starter with Solid-State Overload, 240/480V Coil, Class 14

14DUB32AC

This open-type starter features a solid-state overload relay adjustable from 0.75 to 3.4A, dual-rated 220/240V or 440/480V AC coil, and is rated for 600VAC, 3-phase operation. It is suitable for motors up to 1.5 HP at 460V and includes a normally open auxiliary contact for control circuit flexibility. The overload relay offers manual or automatic reset options and provides phase loss protection, tripping within 3 seconds on fault. The starter is part of the Siemens 14DU series, known for industrial durability and easy maintenance.

Key Specifications
• Amperage: 27A (contactor), 0.75Ð3.4A (overload adjustable)
• Voltage: 600VAC, 3-phase
• Poles: 3
• Mounting Type: Open
• Interrupt Rating: Not specified in available data
• Series/Frame: 14DU, NEMA Size 1
• Trip Unit: Solid-state overload, manual/automatic reset
• Certifications: UL listed (file #E14900), CSA certified (file #LR 6535)
• Coil Voltage: 220/240VAC or 440/480VAC (dual r(more...)


  Specifications

  • Part Number: 14DUB32AC
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Family : Class 14
  • Type : 14DU
  • Voltage : 600
  • Amperage : 4
  • Phase : 3
  • Poles : 3
  • Configuration : Non-Reversing
  • Coil Voltage Maximum : 480
  • Coil Voltage Minimum : 440
  • Nema Rating : 1
  • Amperage Maximum : 3.4
  • Amperage Minimum : 0.75



  Product Data

  • UPC : 783087943445
  • GTIN : 00783087943445
  • Country of Origin : Mexico
  • Weight : 3
  • Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
