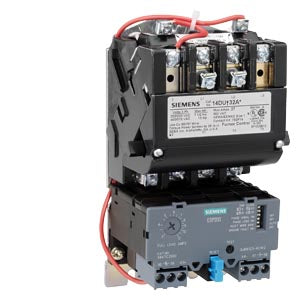

14DUA32AA - Siemens 3 Pole 3 Phase 600V 1A NEMA 1 Motor Starter, Class 14, Solid State Overload, 120/240V Coil, Open Enclosure

14DUA32AA

This heavy-duty NEMA size 1 starter features a solid state overload relay adjustable from 0.25 to 1A, a 3-pole contactor rated for 600V, and a dual-voltage AC coil (120/240V). The open enclosure design supports panel mounting, and the unit is UL and CSA certified for safety and compliance. The overload relay offers both manual and automatic reset options, with phase loss detection for enhanced protection. A normally open auxiliary contact is included for low voltage release applications.

Key Specifications

• Amperage: 0.25Ð1A adjustable solid state overload
• Voltage: 600V, 3 phase
• Poles: 3
• Mounting Type: Panel (open enclosure)
• Interrupt Rating: 600V
• Series/Frame: Class 14, NEMA size 1
• Trip Unit: Solid state overload, manual/automatic reset
• Certifications: UL listed, CSA certified
• Coil Voltage: 120/240V AC dual rated
• Horsepower: 1/6 HP @ 208V, 1/3 HP @ 460V
• Frequency: 50/60 Hz

• Specifications

  • Part Number: 14DUA32AA
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Family : Class 14
  • Type : 14DU
  • Voltage : 600
  • Amperage : 1
  • Phase : 3
  • Poles : 3
  • Horse Power : HP @ 3 Phase - 208V 1/6 hp HP @ 3 Phase - 240V 1/6 hp HP @ 3 Phase - 480V 1/3 hp
  • Configuration : Non-Reversing
  • Aux Contacts : 1NO
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220
  • Nema Rating : 1
  • Amperage Maximum : 1
  • Amperage Minimum : 0.25



  Product Data

  • UPC : 783087942707
  • GTIN : 00783087942707
  • Country of Origin : Mexico
  • Dimensions : 3.5 in x 7.44 in
  • Weight : 3
  • Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
