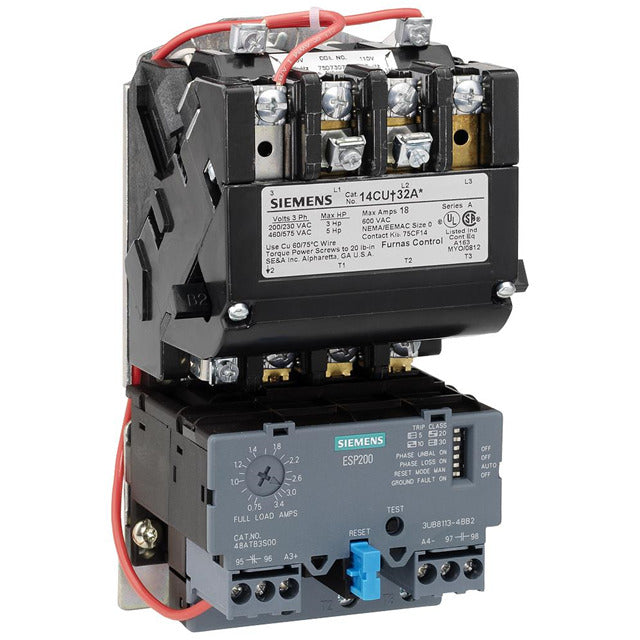

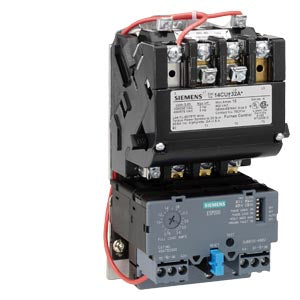

14CUD32AA - Siemens 18A 600VAC 3-Pole NEMA 0 Motor Starter with 110-240VAC Coil

Save $439.35
SKU: 14CUD32AA-New
Condition: New
Price:
$453.65 $893.00
Stock:
35 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

14CUD32AA - Essential Electric Supply
14CUD32AA - Siemens 18A 600VAC 3-Pole NEMA 0 Motor Starter with 110-240VAC Coil - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
14CUD32AA - Essential Electric Supply
14CUD32AA - Siemens 18A 600VAC 3-Pole NEMA 0 Motor Starter with 110-240VAC Coil - Essential Electric Supply

Description

14CUD32AA


14CUD32AA is a Siemens heavy duty 3-pole motor starter designed for reliable motor control applications with a solid state overload relay adjustable from 5.5 to 22 amps.

This NEMA size 0 starter supports 3-phase motors up to 6 HP at 460 VAC and 3 HP at 230 VAC. It features a dual voltage coil rated for 110/120 or 220/240 VAC at 60 Hz, a solid-state overload relay with manual or automatic reset, and trips within 3 seconds on phase loss detection. The starter includes a normally open auxiliary contact for low voltage protection or release and is UL listed and CSA certified for industrial use.

    Key Specifications
    • Amperage Range: 5.5 to 22 Amps
    • Voltage Rating: 600 VAC Load
    • Coil Voltage: 110-120/220-240 VAC
    • Poles: 3
    • NEMA Size: 0
    • Horsepower: 3 HP @ 230 VAC, 6 HP @ 460 VAC
    • Overload Relay: Solid State, adjustable, manual/auto reset
    • Enclosure Type: Open (NEMA 0)
    • Trip Feature: Phase loss trip within 3 seconds
    • Certifications: UL Listed (File #E14900), CSA Certified (File #LR 6535)

At Essential Parts&lt(more...)

Specifications

  • Part Number: 14CUD32AA
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Family : Class 14
  • Type : 14CU
  • Voltage : 600
  • Amperage : 22
  • Phase : 3
  • Poles : 3
  • Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
  • Configuration : Non-Reversing
  • Aux Contacts : 1NO
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220
  • Nema Rating : 0
  • Amperage Maximum : 22
  • Amperage Minimum : 5.5

Product Data

  • UPC : 783087817753
  • GTIN : 00783087817753
  • Country of Origin : Mexico
  • Dimensions : 1.657 x 1.114 x 0.823 inch
  • Weight : 3
  • Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
