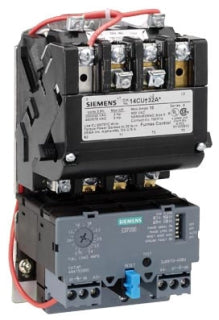

14CUC32AF - Siemens 18A 600VAC 3-Pole Class 14 Full Voltage Heavy Duty Motor Starter NEMA 0 Open Frame

14CUC32AF

14CUC32AF is a Siemens Class 14 full voltage heavy duty motor starter designed for non-reversing applications with a 3-pole configuration and NEMA 0 open frame enclosure.This motor starter features an 18 ampere current rating with a voltage rating of 600 VAC and a coil voltage of 110 to 120 VAC at 50/60 Hz. It supports motor power ratings of 2 to 5 horsepower and includes a solid-state overload relay adjustable from 3 to 12 amps. The starter offers automatic, manual, and remote reset options with timing of 19 to 29 ms on and 10 to 24 ms off. It is built for durability with 10 million operating cycles and is suitable for three-phase motors.

Key Specifications
• Amperage Rating: 18 A
• Voltage Rating: 600 VAC
• Coil Voltage: 110-120 VAC, 50/60 Hz
• Number of Poles: 3
• Enclosure Type: NEMA 0 / Open
• Motor Power: 2 hp to 5 hp
• Overload Relay: Solid State, adjustable 3-12 A
• Trip Unit: Automatic/Manual/Remote Reset
• Operating Cycles: 10,000,000
• Timing: 19-29 ms On / 10-24 ms Off
• Connection Type: Screw, Threaded
• Phase: 3
(more...)


Specifications

• Part Number: 14CUC32AF
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14CU
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 3
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Horse Power : HP @ 3 Phase - 208V 2 hp HP @ 3 Phase - 240V 2 hp HP @ 3 Phase - 480V 5 hp
• Configuration : Non-Reversing
• Aux Contacts : 1NO
• Coil Voltage Maximum : 120
• Amperage Maximum : 12
• Amperage Minimum : 3



Product Data

• UPC : 783087817739
• GTIN : 00783087817739
• Country of Origin : Mexico
• Dimensions : 1.52 x 1.114 x 0.791 inch
• Weight : 3
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
