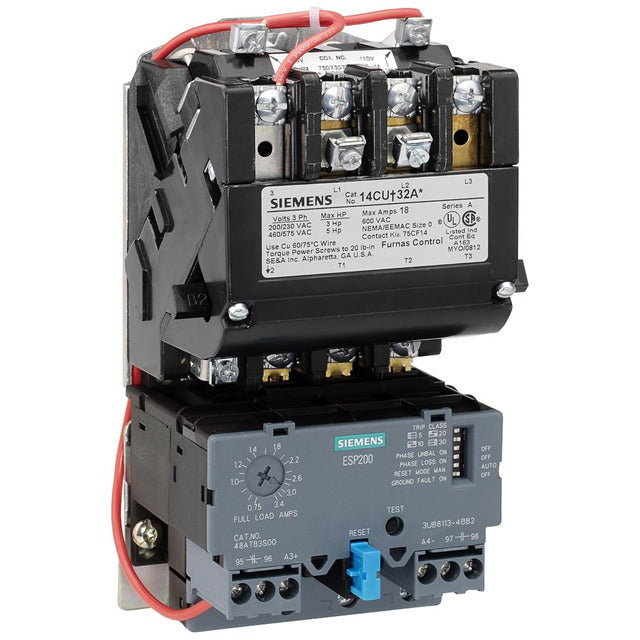

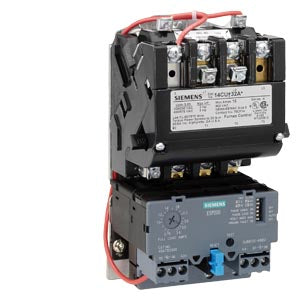

14CUC32AA - Siemens 3-12A 3-Phase Motor Starter NEMA Size 0 110/120-220/240VAC Coil

14CUC32AA

This NEMA Size 0 motor starter supports 3-phase full voltage operation with a coil voltage of 110/120 or 220/240 VAC at 60 Hz. It features a solid-state overload relay with manual or automatic reset, trips within 3 seconds on phase loss, and includes a normally open auxiliary contact for low voltage protection. Rated for up to 2 HP at 230V and 5 HP at 460/575V, it offers rugged industrial design, large silver cadmium contacts, and UL and CSA certifications.

Key Specifications
• Amperage Range: 3 to 12 Amps
• Voltage: 110/120 or 220/240 VAC Coil
• Poles: 3
• NEMA Size: 0
• Frame Size: A1
• Horsepower Rating: 2 HP @ 230V, 5 HP @ 460/575V
• Overload Relay: Solid State, Manual/Auto Reset
• Auxiliary Contact: 1 Normally Open
• Trip Feature: Phase Loss Trip within 3 seconds
• Certifications: UL Listed, CSA Certified
• Mounting Type: Open Type Enclosure
• Non-Reversing Starte(more...)


  Specifications

  • Part Number: 14CUC32AA
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Family : Class 14
  • Type : 14CU
  • Voltage : 600
  • Amperage : 12
  • Phase : 3
  • Poles : 3
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Horse Power : HP @ 3 Phase - 208V 2 hp HP @ 3 Phase - 240V 2 hp HP @ 3 Phase - 480V 5 hp
  • Configuration : Non-Reversing
  • Aux Contacts : 1NO
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220
  • Nema Rating : 0
  • Amperage Maximum : 12
  • Amperage Minimum : 3



  Product Data

  • UPC : 783087817715
  • GTIN : 00783087817715
  • Country of Origin : Mexico
  • Dimensions : 1.52 x 1.102 x 0.76 inch
  • Weight : 3
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
