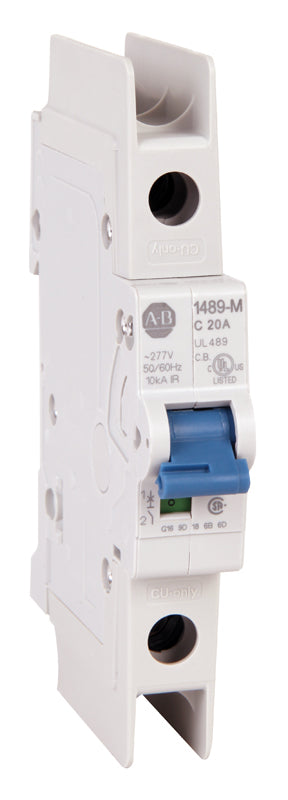

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Allen-Bradley
- Sub-Category
- Molded Case
- Rated current
- 20
- Voltage
- 277V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@277V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Feed-Thru
- Mounting
- DIN Rail
- Standards
- UL489
- UPC
- 885630619484
- Weight
- 0.24
Product description & additional details
1489-M1C200
1489-M1C200 is a 20A, 1-pole miniature circuit breaker from Allen-Bradley, designed for reliable branch circuit protection in industrial and commercial applications. This UL489 listed device features a C-trip curve for moderate inrush current protection and is suitable for use in power distribution panels. The 1489-M1C200 breaker is engineered for durability and safety, with a robust thermal-magnetic trip mechanism and high interrupt rating. It is ideal for protecting sensitive equipment and wiring from overloads and short circuits in AC and DC systems.
- Part Number: 1489-M1C200
- Manufacturer: Allen-Bradley
- Rated Current: 20A
- Number of Poles: 1 Pole
- Rated Voltage: 277V AC, 48V DC (UL/CSA); 230V AC (IEC/EN)
- Interrupt Rating: 15 kAIC
- Series/Frame: Bulletin 1489-M
- Trip Curve: C-Curve
- Mounting Type: DIN Rail
- Certifications: UL, CSA, CUL, CE, CCC, C-TICK
- Application: Branch Circuit Protection
- Standards: UL489
Specifications
- Part Number: 1489-M1C200
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 277
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Circuit Breaker Mounting Style : DIN Rail
- Protection : Thermal Magnetic
Product Data
- UPC : 885630619484
- Weight : 0.24
- Standards : UL489
