Product Info
- Manufacturer:Eaton
- Sub-Category:Pilot Device
Description
10250T16227

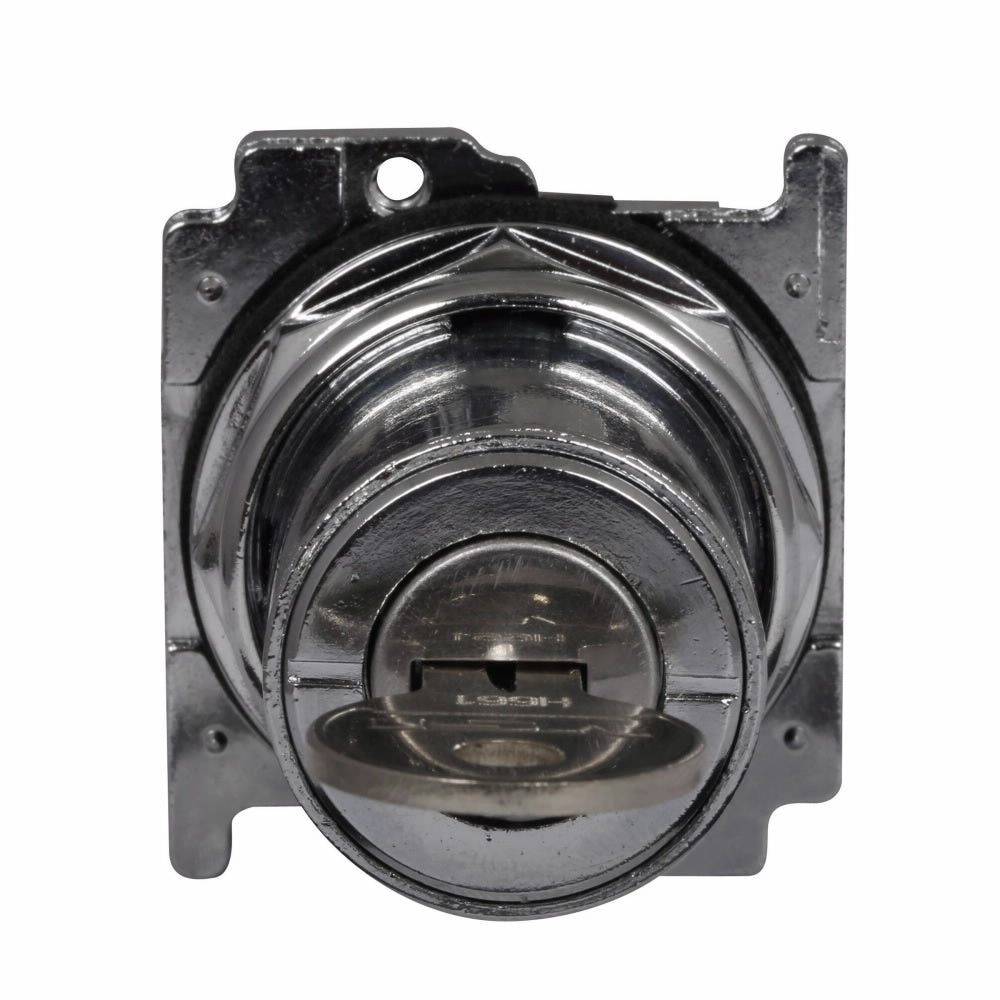

10250T16227 is a heavy-duty key operated selector switch from Eaton's 10250T Series designed for reliable motor control applications.This selector switch features a 30.5 mm diameter, zinc die cast construction with a chrome-plated housing and mounting nut for durability. It offers a three-position key-operated mechanism with a 60° cam throw and is rated for NEMA 3, 3R, 4, 4X, 12, and 13 environments. The device is non-illuminated and designed for use with 3-position keylock switches, providing secure and precise control.
- Key Specifications
- Type: Key Operated Selector Switch
- Series: 10250T
- Diameter: 30.5 mm
- Positions: Three-position, key removable in all positions
- Construction: Zinc die cast with chrome-plated housing and mounting nut
- Cam Throw: 60°
- Environmental Ratings: NEMA 3, 3R, 4, 4X, 12, 13
- Illumination: Non-illuminated
- Part Number: 10250T16227
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Pilot Device
- Family : 10250T Series
- Type : 10250T
- UPC : 078211322779
- GTIN : 00782113227795
- Country of Origin : Dominican Republic
- Dimensions : 2 in x 2.2 in x 1.9 in (Length/Depth x Height x Width)
- Weight : 0.4
- Certification : UL Listed,CSA Certified,CE Marked
