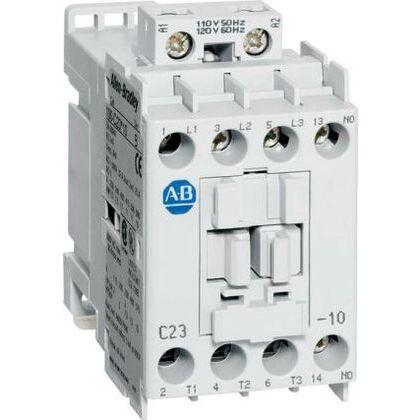

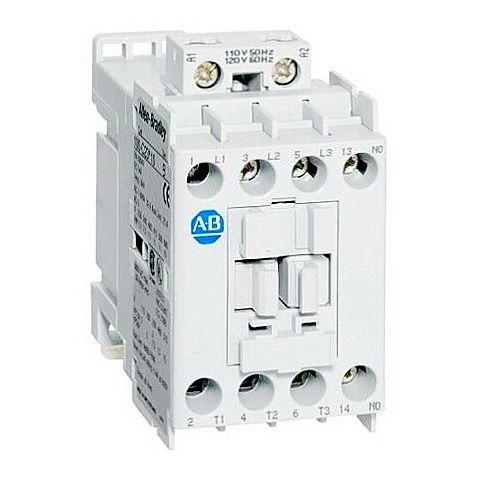

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Allen-Bradley
- Sub-Category
- Contactor
- Rated current
- 9
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 110–120 V
- Coil Voltage Maximum
- 120
- Coil Voltage Minimum
- 110
- Compatible Frames
- FD
- UPC
- 662072608203
- GTIN
- 10662072608200
- Weight
- 1 lb
Product description & additional details
100-C09D10
100-C09D10 is a 3-pole IEC contactor designed for motor control applications, featuring a 9A AC-3 rating and a 110/120VAC coil for reliable operation in industrial environments.Compact and rugged, this Allen-Bradley contactor is built for efficient motor starting and stopping, with screw-terminal connections and DIN-rail mounting for easy installation. It includes one normally open (N.O.) base-mounted auxiliary contact and is compatible with direct-mount thermal and electronic overload relays for complete motor protection.
- 3-pole configuration
- 9A AC-3, 32A AC-1 rated current
- 110VAC 50Hz / 120VAC 60Hz coil voltage
- Screw-terminal connections
- DIN-rail mounting
- 1 N.O. auxiliary contact (base-mounted)
- Motor duty: 2 HP @ 230VAC, 5 HP @ 460VAC
- UL listed
- Conforms to IEC/EN 60947-4-1/5-1
- Compact footprint for tight control panels
- Compatible with Allen-Bradley overload relays
- Frame size matches 100-C12D10 for easy upgrades
Specifications
- Part Number: 100-C09D10
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Compatible Frames : FD
Product Data
- UPC : 662072608203
- GTIN : 10662072608200
- Weight : 1 lb
