ZPLA4-UNV34-S917-P - Eaton Lighting and controls LED 4ft 8000lm

ZPLA4-UNV34-S917-P

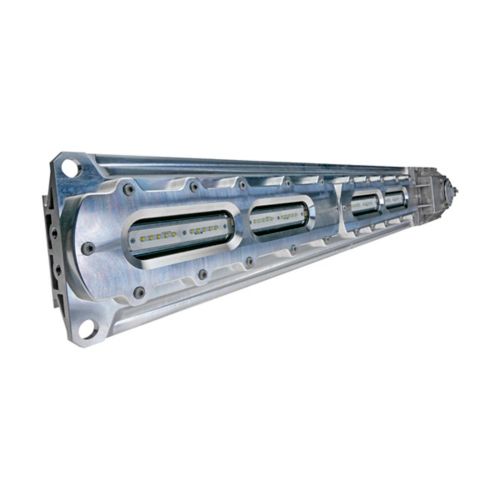

ZPLA4-UNV34-S917-P is an Eaton Crouse-Hinds series Pauluhn ZPLA linear LED light fixture designed for explosionproof applications. This 4-foot fixture delivers 8000 lumens with high efficiency and is suitable for Class I, Division 1 and Class II, Division 1 hazardous areas on marine vessels and drilling platforms. Key Specifications

• Part Number: ZPLA4-UNV34-S917-P
• Manufacturer: Eaton
• Product Type: Linear LED Light Fixture
• Length: 4 ft
• Lumens: 8000 lm
• Efficacy: 139 lm/W
• Color Temperature: 5000K Cool White
• Voltage: 120-277 Vac, 127-300 Vdc
• Power: 59W
• Lens: Glass
• Material: Copper-free aluminum
• Finish: Painted gray epoxy
• Operating Temperature: -40°C to +65°C
• IP Rating: IP66
• Vibration Rating: 5G 3-axis
• Surge Protection: 4kV line to line, 6kV line to earth
• Warranty: 5 year fixture warranty

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZPLA4-UNV34-S917-P
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Linear
• Voltage : 120-277 V
• Nema Rating : IP66
• Watts : 59W
• Operating Temperature Maximum Celsius : -40°C to +65°C
• Material : Copper-free aluminum with glass lens
• NEC hazardous rating : Class I, Division 1 Class II, Division 1 Class III
• Ingress protection (IP) ratings : IP66
• Lumens : 8000 lm
• Lumens per watt : 139 lm/W
• Color temperature : 5000K
• Mounting Method : Flush and swivel mount
• Power factor : > 0.90
• Special features : Explosionproof, Class I Division 1, Class II Division 1, 5G 3-axis vibration rated, 2000 PSI hose rated, 4kV/6kV surge protection
• Color : Cool White

Product Data

• UPC : 662276962866
• Dimensions : 48.2 in x 4.56 in x 6.5 in (Length/Depth x Height x Width)
• Weight : 27 lb
