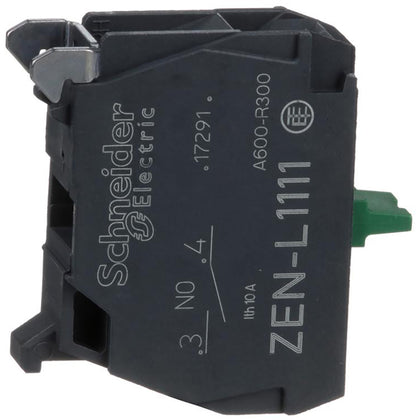

ZENL1111 - Square D 22mm Push Button Contact Block 1NO 600VAC Panel Mount Silver Alloy

ZENL1111

ZENL1111 is a Square D 22mm push button contact block featuring a single normally open (1NO) contact configuration designed for panel mounting.This contact block operates at up to 600 VAC with silver alloy contacts, suitable for use with XB5 and XAPS control stations. It includes screw clamp terminals and an IP20 enclosure rating. The block supports a wide operating temperature range from -40°C to 70°C and offers high endurance with up to 1,000,000 duty cycles.

• Contact Configuration: 1 Normally Open (1NO)
• Voltage Rating: 600 VAC
• Current Rating: 6 A at 120 VAC, 1.2 A at 600 VAC
• Mounting Type: Panel Mount
• Terminal Type: Screw Clamp
• Contact Material: Silver Alloy
• Enclosure Rating: IP20
• Compatible With: XB5 Series, XAPS Control Stations
• Operating Temperature: -40°C to +70°C
• Duty Cycles: 1,000,000
• Dimensions: 22 mm size

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZENL1111
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contact Kit
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 3389110089479
• Country of Origin : France
• Weight : 0.02 lb
• Certification : CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
