2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
ZBE203

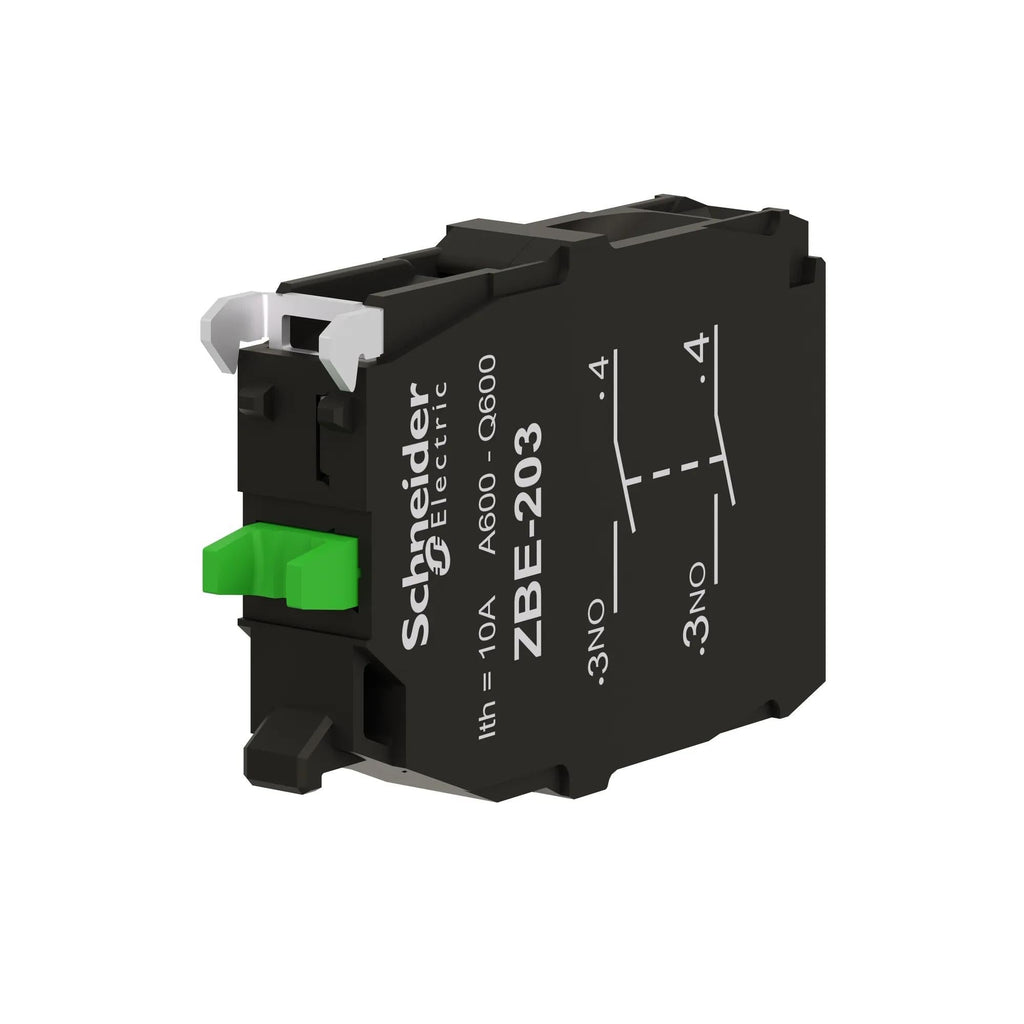

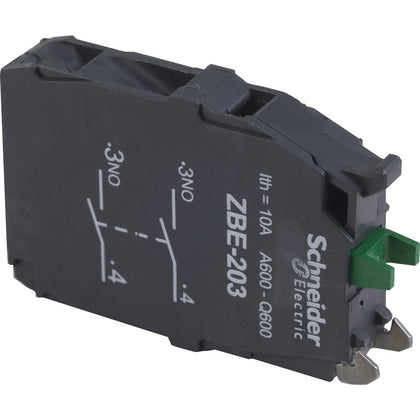

ZBE203 is a Square D 22 mm double contact block with 2 normally open (2NO) contacts designed for motor control applications.This contact block features screw clamp terminals for secure wiring and is compatible with Harmony XB4 and XB5 control and signaling units. It offers an IP20 protection rating to prevent operator contact with live parts and supports a contact rating of A600 - Q600. The device is robust, supports a wide operating temperature range from -40°C to 70°C, and is rated for 1 million mechanical cycles under a 6A load, ensuring durability and low maintenance.
- Key Specifications
- Part Number: ZBE203
- Manufacturer: Square D
- Contact Configuration: 2 Normally Open (2NO)
- Size: 22 mm
- Voltage Rating: 600 V AC
- Contact Rating: A600 - Q600
- Connection Type: Screw Clamp Terminals
- Protection Rating: IP20
- Operating Temperature: -40°C to 70°C
- Mechanical Endurance: 1 million cycles at 6A load
- Compatible with Harmony XB4 and XB5 units
- Part Number: ZBE203
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Protection : Magnetic Only
- UPC : 785901355717
- Country of Origin : France
- Weight : 0.038 lb
- Certification : CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
