ZB5AZ103 - Schneider Electric Auxiliary Contact Block 2NO Screw Terminal Harmony XB5 22mm

ZB5AZ103

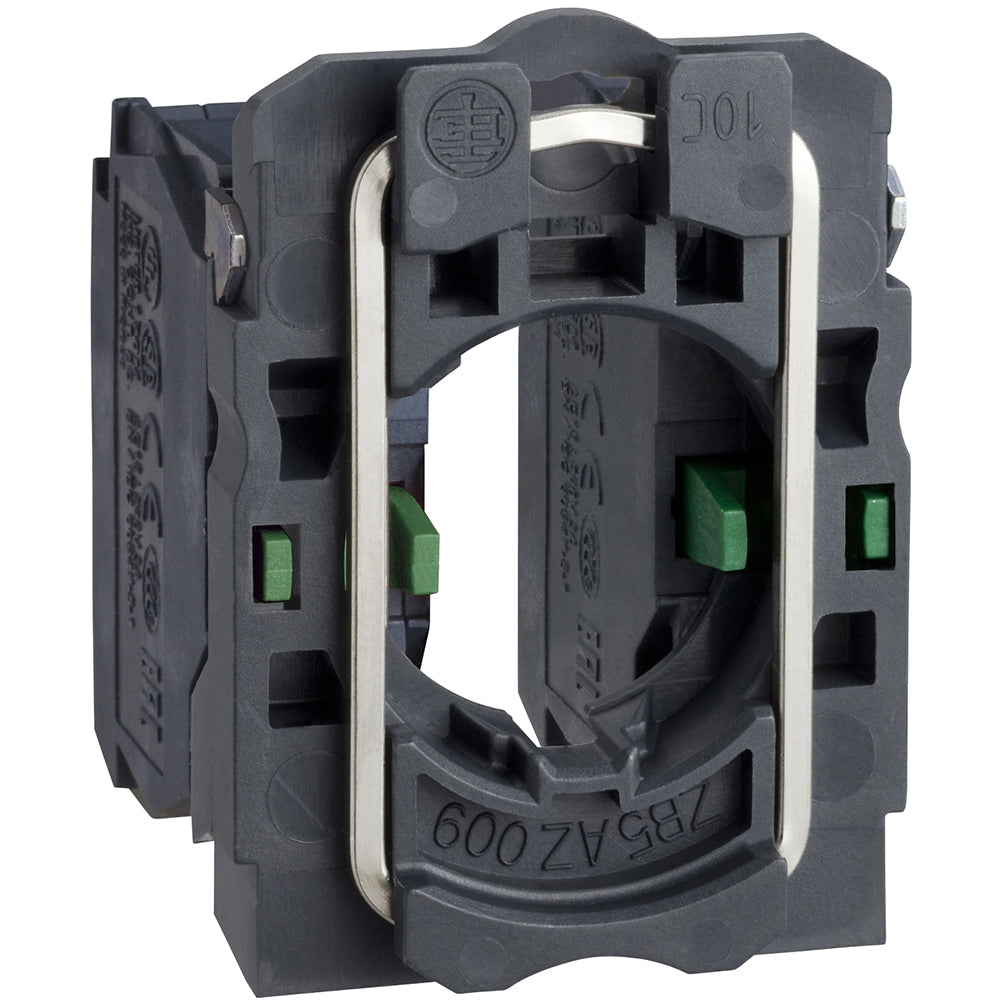

ZB5AZ103 is a Schneider Electric auxiliary contact block designed for use with Harmony XB5 push buttons, featuring 2 normally open (2NO) contacts and screw terminal connections.This auxiliary contact block includes a mounting flange (fixing collar) for easy snap-on installation on 22mm push button operators. It is made of durable plastic and supports a rated operational current of 3A at AC-15. The contact block is suitable for control and signaling applications with a compact design and reliable mechanical connection.

• Part Number: ZB5AZ103
• Manufacturer: Schneider Electric
• Contact Configuration: 2 Normally Open (2NO)
• Mounting Type: Mounting flange (fixing collar) for 22mm push buttons
• Connection Type: Screw terminal
• Rated Operational Current: 3A AC-15
• Material: Plastic housing
• Series: Harmony XB5
• Operating Temperature Range: -40 to 70 °C
• Voltage Rating: Up to 600 V (pollution degree 3)
• Standards: EN 60947-1 compliant
• Contact Material: Silver alloy

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB5AZ103
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contact Kit
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSIGT - Long-Time, Short-Time, Instantaneous, Ground Fault and Targets
• Protection : Solid State

Product Data

• UPC : 785901370239
• GTIN : 00389110924438
• Country of Origin : France
• Weight : 0.064 lb
• Certification : CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
