ZB5AZ101 - Square D 10A 600VAC 1NO Contact Block, 22mm, Screw Clamp Terminal

ZB5AZ101

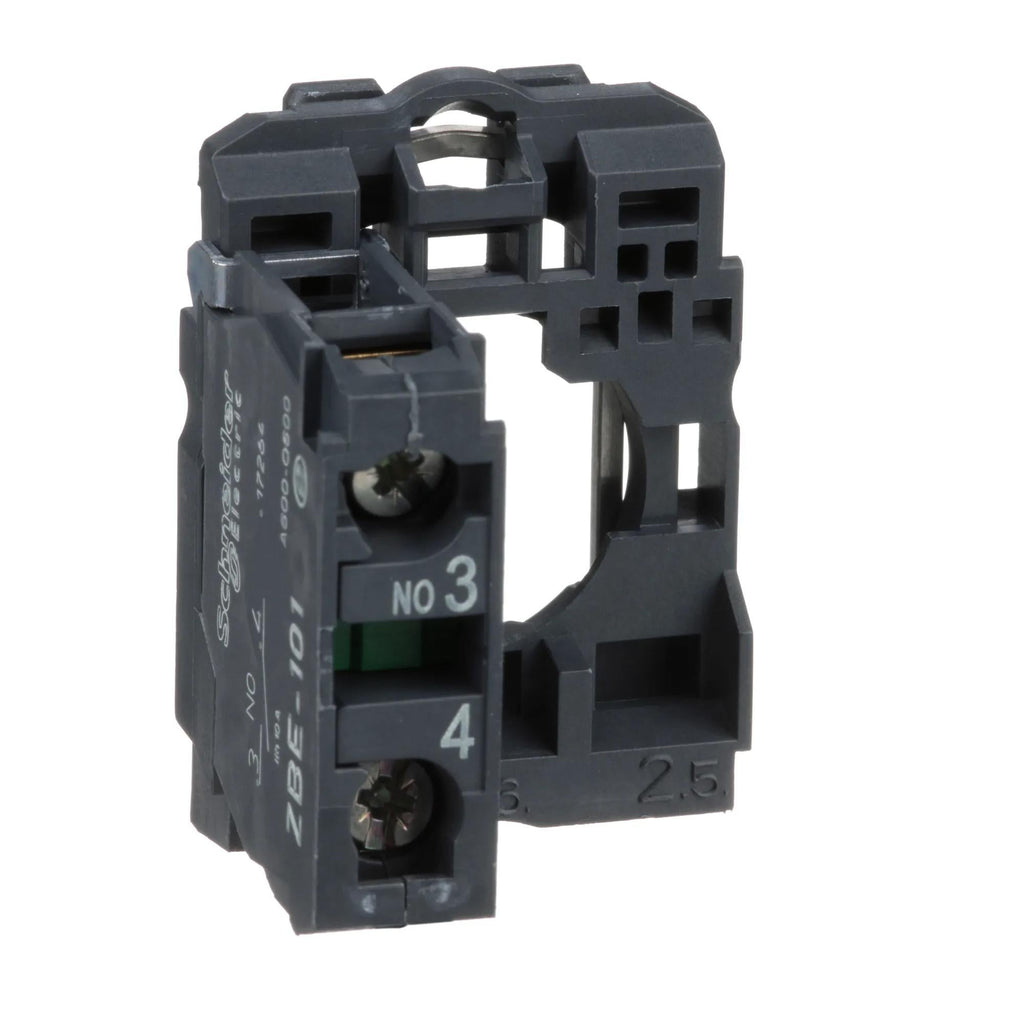

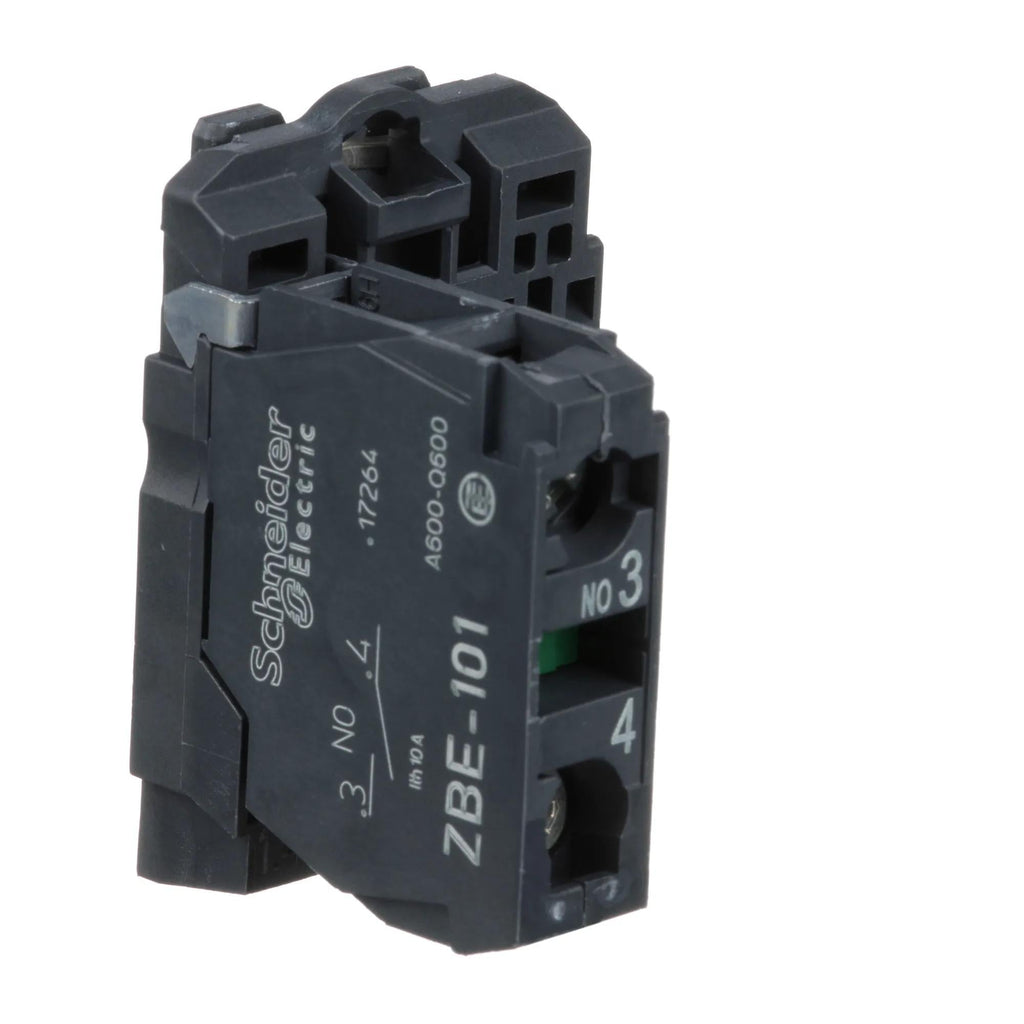

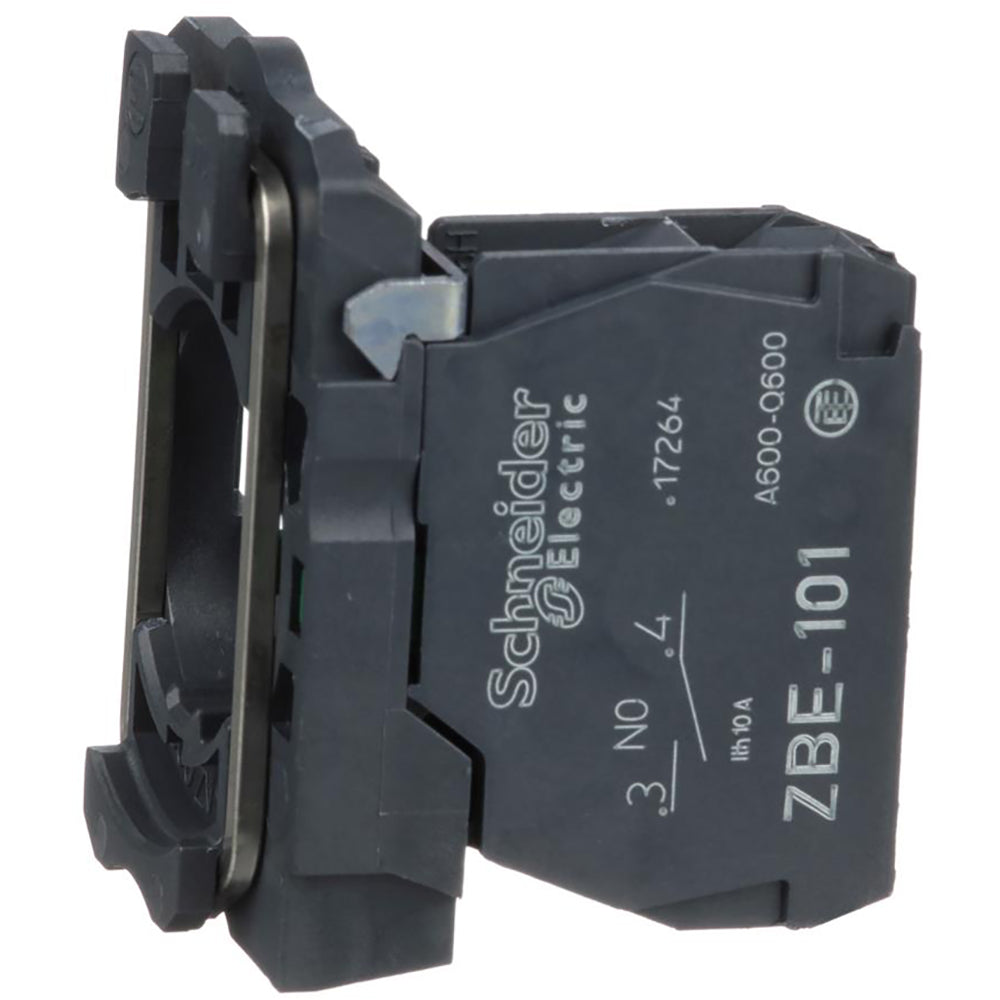

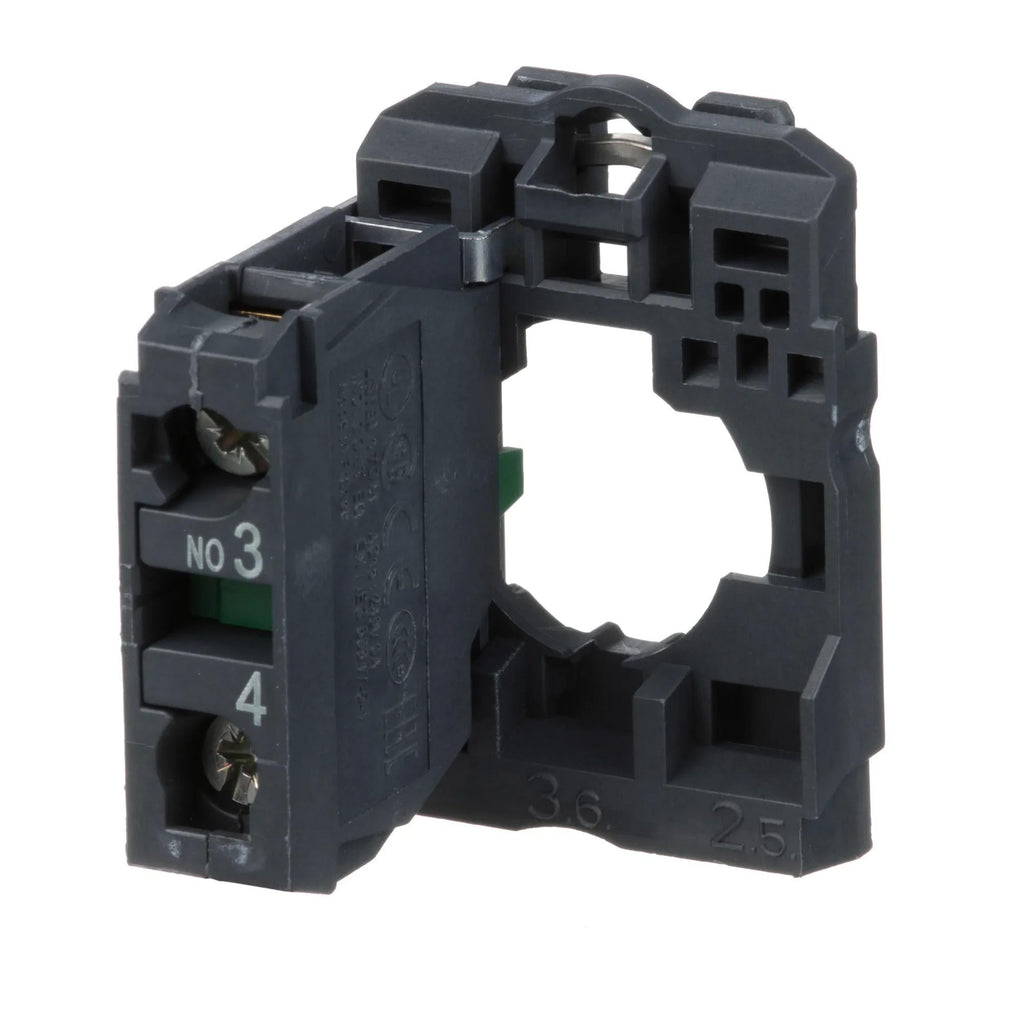

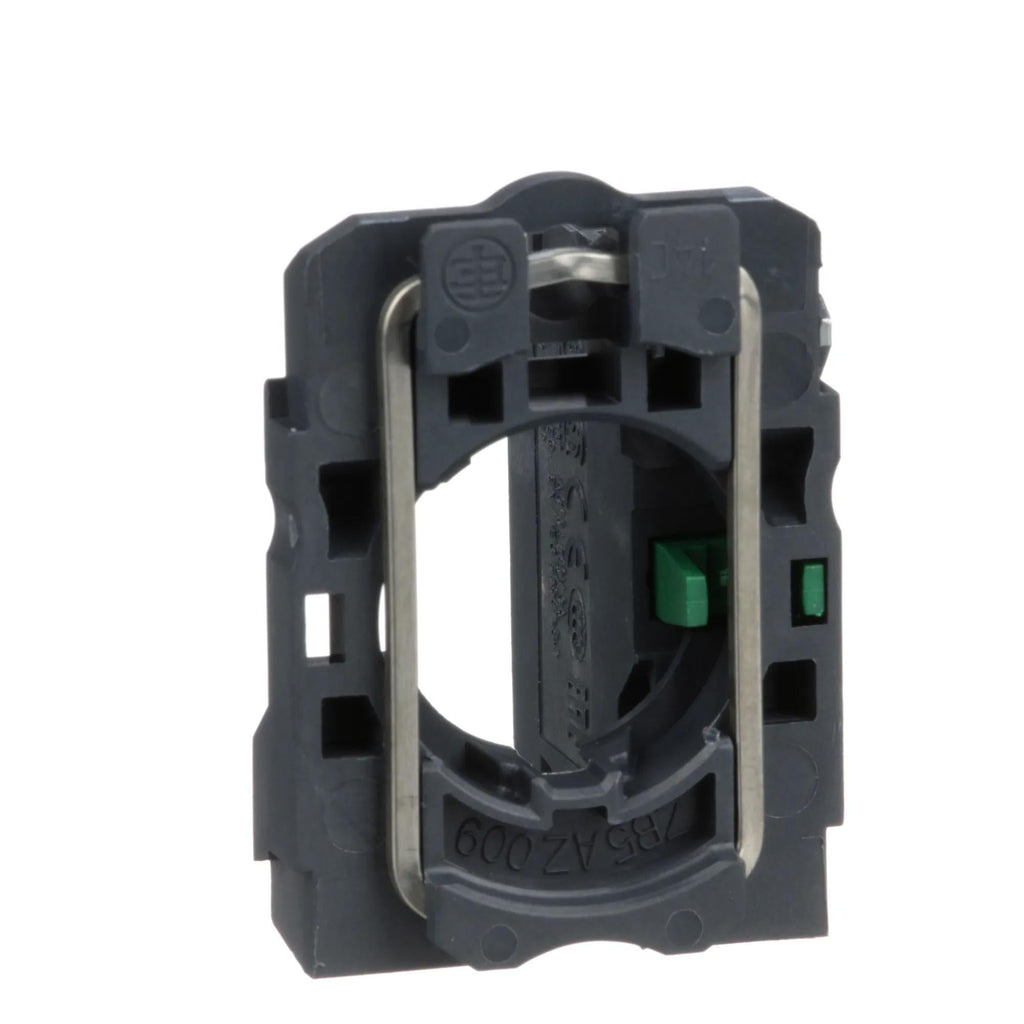

ZB5AZ101 is a Square D contact block designed for motor control applications with a 10 amp, 600 VAC rating and a single normally open contact.This contact block features a momentary action with 1NO contact configuration, suitable for Harmony 22 mm push button operators. It includes a plastic body with silver alloy contacts, screw clamp terminals, and is rated for 10 A at 600 VAC. The device is built to withstand vibration per IEC 60068-2-6 and operates within a temperature range of -13 to 158 degrees Fahrenheit.

• Brand: Square D
• Part Number: ZB5AZ101
• Contact Rating: 10 A at 600 VAC
• Contact Configuration: 1 Normally Open (1NO)
• Action: Momentary
• Size: 22 mm diameter
• Terminal Type: Screw Clamp
• Material: Plastic body with silver alloy contacts
• Operating Temperature: -13 to 158 °F
• Vibration Resistance: 5 gn per IEC 60068-2-6
• Enclosure Type: IP20
• UPC/GTIN: 785901370215

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB5AZ101
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : ZB5
• Voltage : 600
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901370215
• Country of Origin : France
• Dimensions : 1.18 in W x 1.26 in D x 1.65 in H 1.65 in H x 1.18 in W x 1.26 in D
• Weight : 0.044 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
