ZB5AW14 - Schneider Electric Motor Control Red Pushbutton Head

ZB5AW14

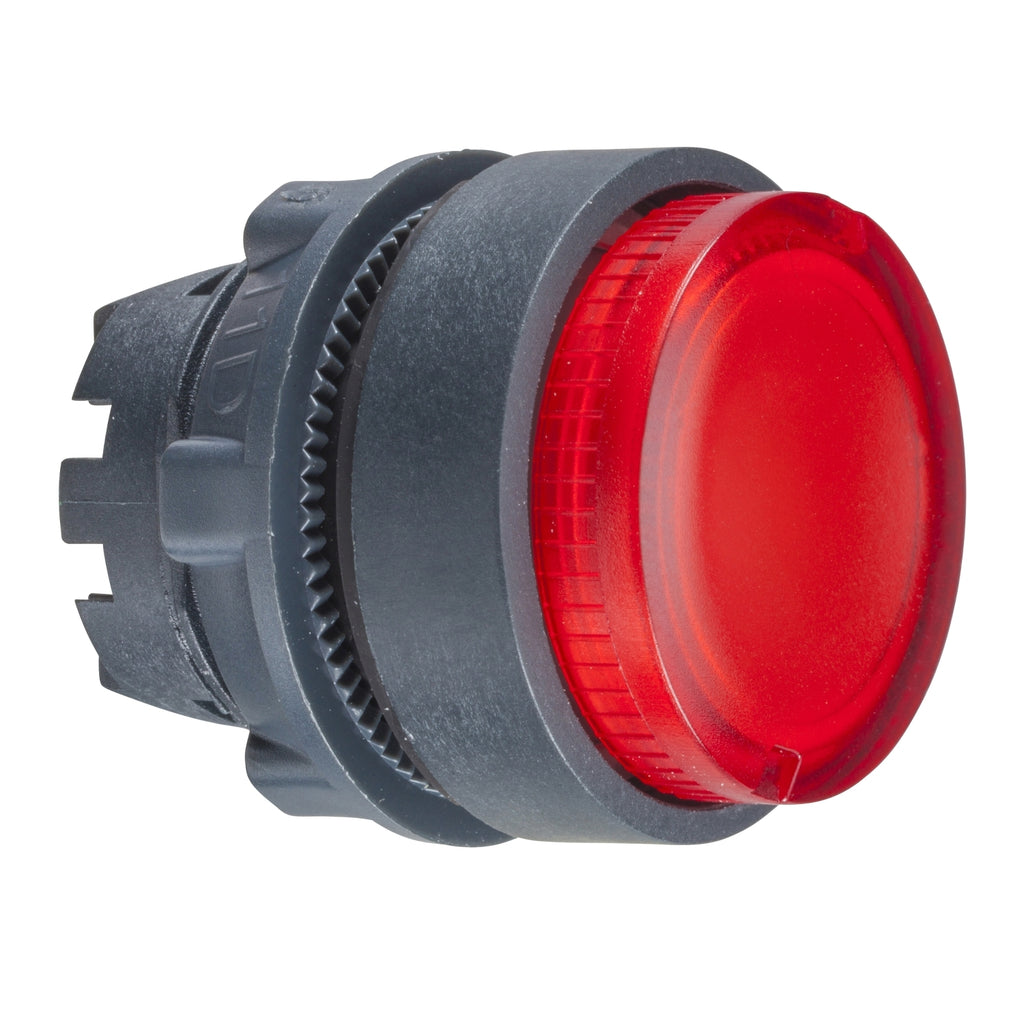

ZB5AW14 is a red projecting illuminated pushbutton head for Harmony XB5 series, designed for spring return operation with BA9s bulb.

• Head type: Standard, round shape
• Operator profile: Red projecting, unmarked
• Type of operator: Spring return
• Panel cut-out: 22.4 mm
• IP rating: IP66, IP69, IP69K
• Vibration resistance: 5 gn (2-500 Hz)
• Shock resistance: 50 gn (11 ms), 30 gn (18 ms)

Key Specifications

• Part Number: ZB5AW14
• Manufacturer: Schneider Electric
• Head type: Standard
• Shape: Round
• Operator: Spring return
• Profile: Red projecting unmarked
• Cut-out: 22.4 mm
• IP66 IP69 IP69K

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB5AW14
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : ZB5
• Functions : Spring return
• Switch Style : Projecting spring return
• Nema Rating : NEMA 4X NEMA 13
• Switch Type : Illuminated pushbutton
• Mounting : 22.4 mm panel cut-out
• Protection : IP66 IP69 IP69K

Product Data

• UPC : 785901355199
• GTIN : 00389111000000
• Country of Origin : Czechia
• Weight : 0.038
• Certification : Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
