ZB5AD8 - Square D 22mm Black Selector Switch, 3 Position, Spring Return, Harmony XB5 Series

ZB5AD8

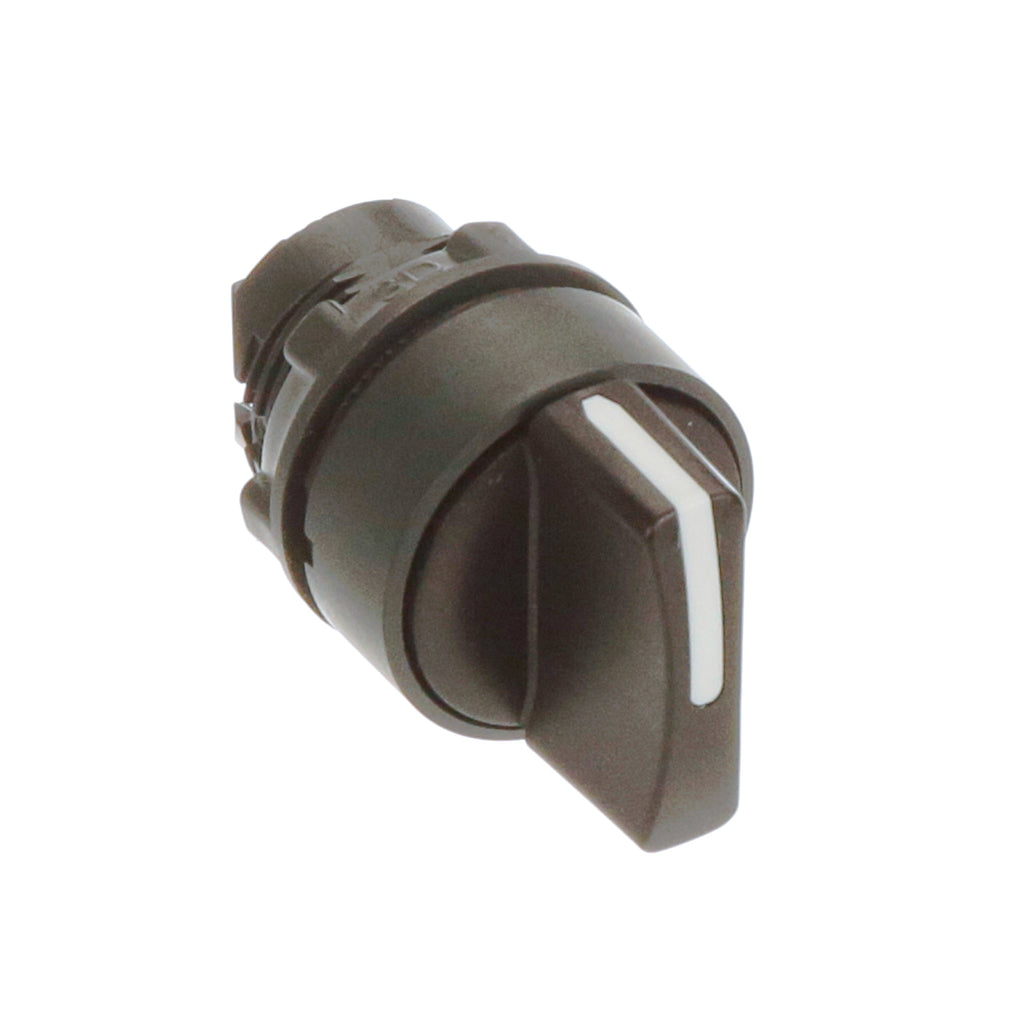

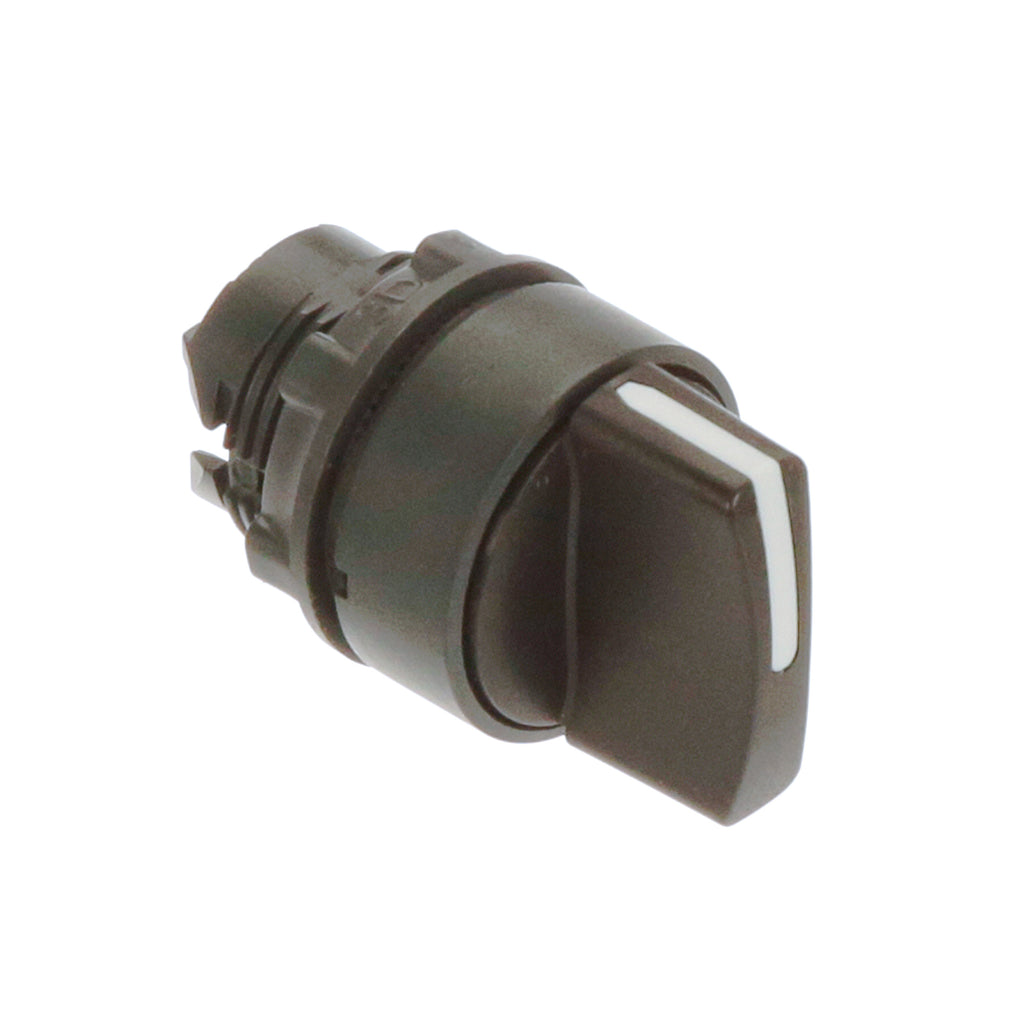

ZB5AD8 is a 22mm black selector switch head from Square D's Harmony XB5 series, featuring a 3-position spring return operator for precise motor control applications.This selector switch head offers a standard black plastic lever with 3 positions at +/- 45 degrees and a spring return from right to center. It is designed for use with Harmony XB5 series contact blocks (sold separately) and mounts easily in 22mm panel cutouts. The switch is rated for NEMA 4X, 13, IP67, and IP69K environments, ensuring durability in harsh industrial conditions. It supports maintained and momentary operation types and complies with UL standards.

Key Specifications
• Mounting Diameter: 22 mm
• Operator Type: Standard black lever
• Positions: 3 positions (+/- 45 degrees)
• Return Type: Spring return from right to center
• Series: Harmony XB5
• Material: Plastic bezel
• Environmental Ratings: NEMA 4X, 13; IP67, IP69K
• Operation Types: Maintained/Momentary
• Mechanical Durability: 1,000,000 cycles
• Contact Blocks: Sold separately, max 6 blocks
• Certifications: UL approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB5AD8
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : ZB5

Product Data

• UPC : 785901374664
• GTIN : 00389110905314
• Country of Origin : France
• Weight : 0.053 lb
• Certification : CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
