Product Info
- Manufacturer:Schneider Electric
Description
ZB5AD48

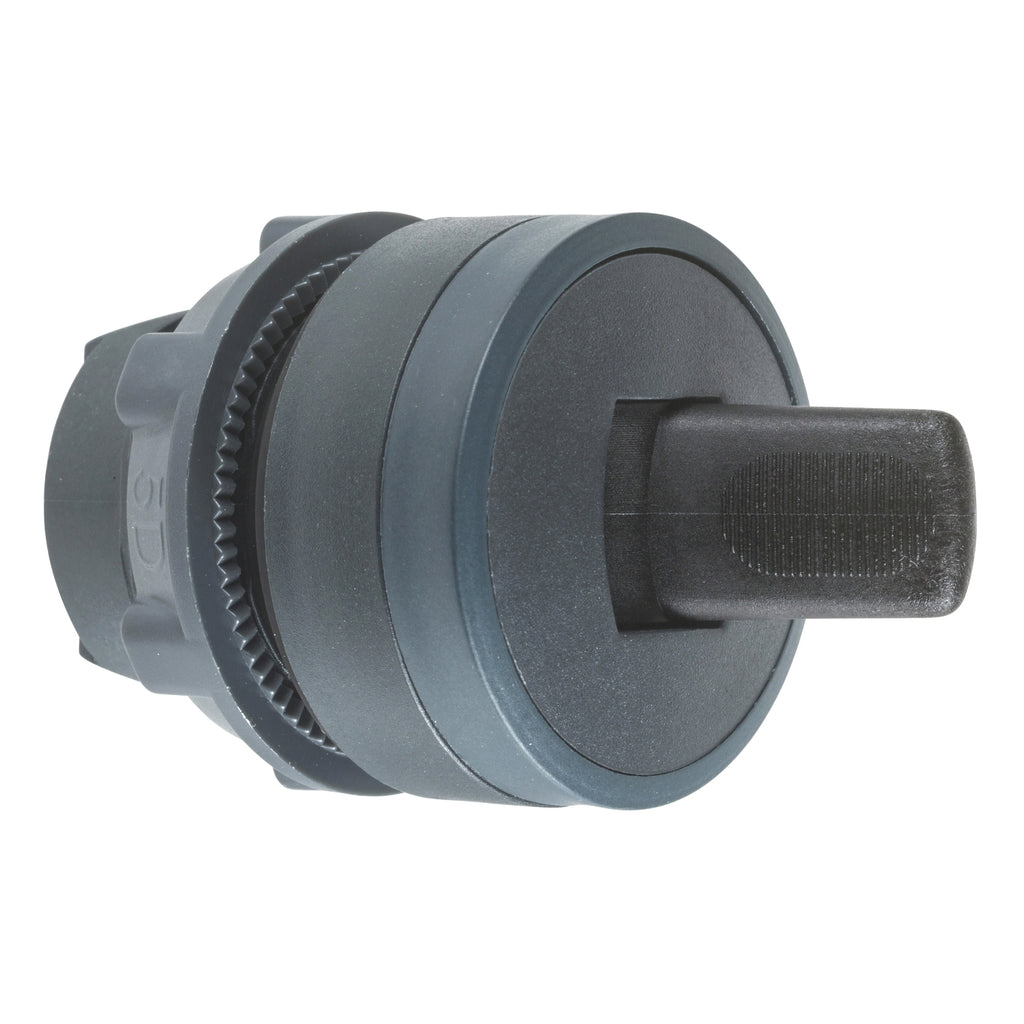

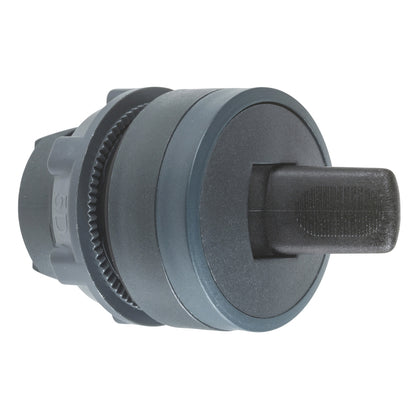

ZB5AD48 is a Harmony XB5 selector switch head manufactured by Square D, featuring a 22mm black design with 2-position spring-return operation suitable for industrial control applications. This selector switch head is designed for standard lever selector switch configurations and operates with spring return from right to left mechanism, providing reliable momentary contact operation. The unit is constructed to withstand demanding industrial environments with robust mechanical design and consistent performance across temperature ranges.
- Size: 22mm diameter
- Color: Black
- Positions: 2-position
- Operation: Spring return (momentary)
- Contact Configuration: Two-way
- Lever Movement: Up-down
- Operating Temperature: -40 to 70 degrees C
- IP Rating: IP65
- Certifications: UL 508, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-1
- NEMA Ratings: NEMA 1, 2, 3, 4, 4X, 12, 13
- Impact Resistance: IK06
Specifications
- Part Number: ZB5AD48
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
Product Data
- Weight : 0.051
