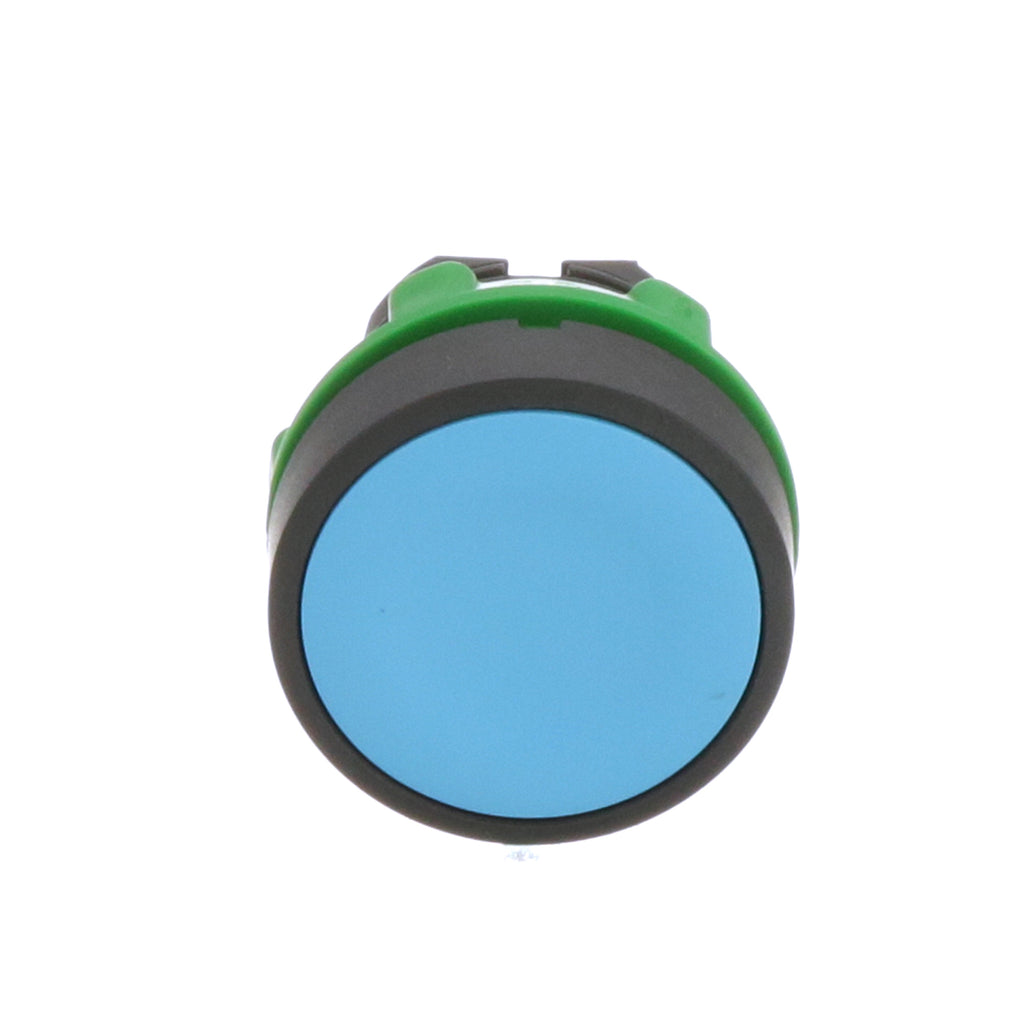

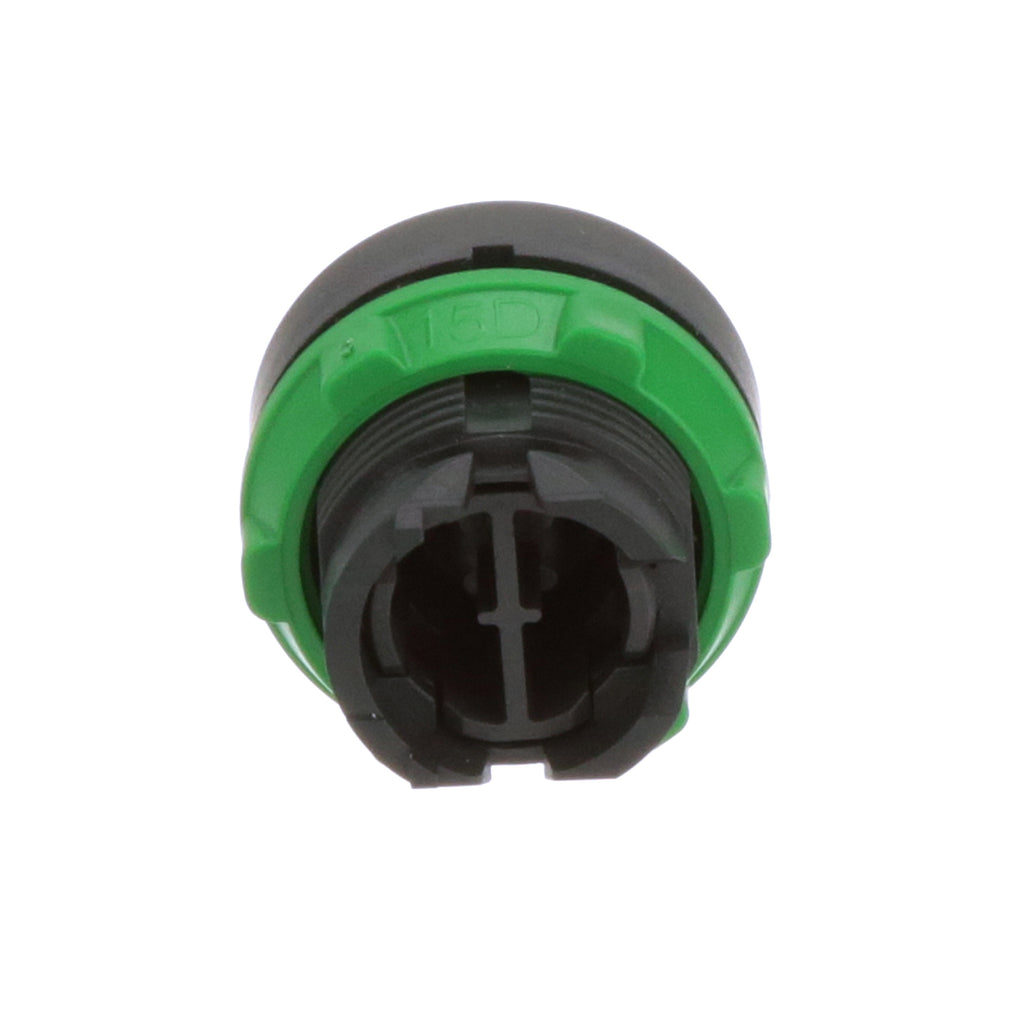

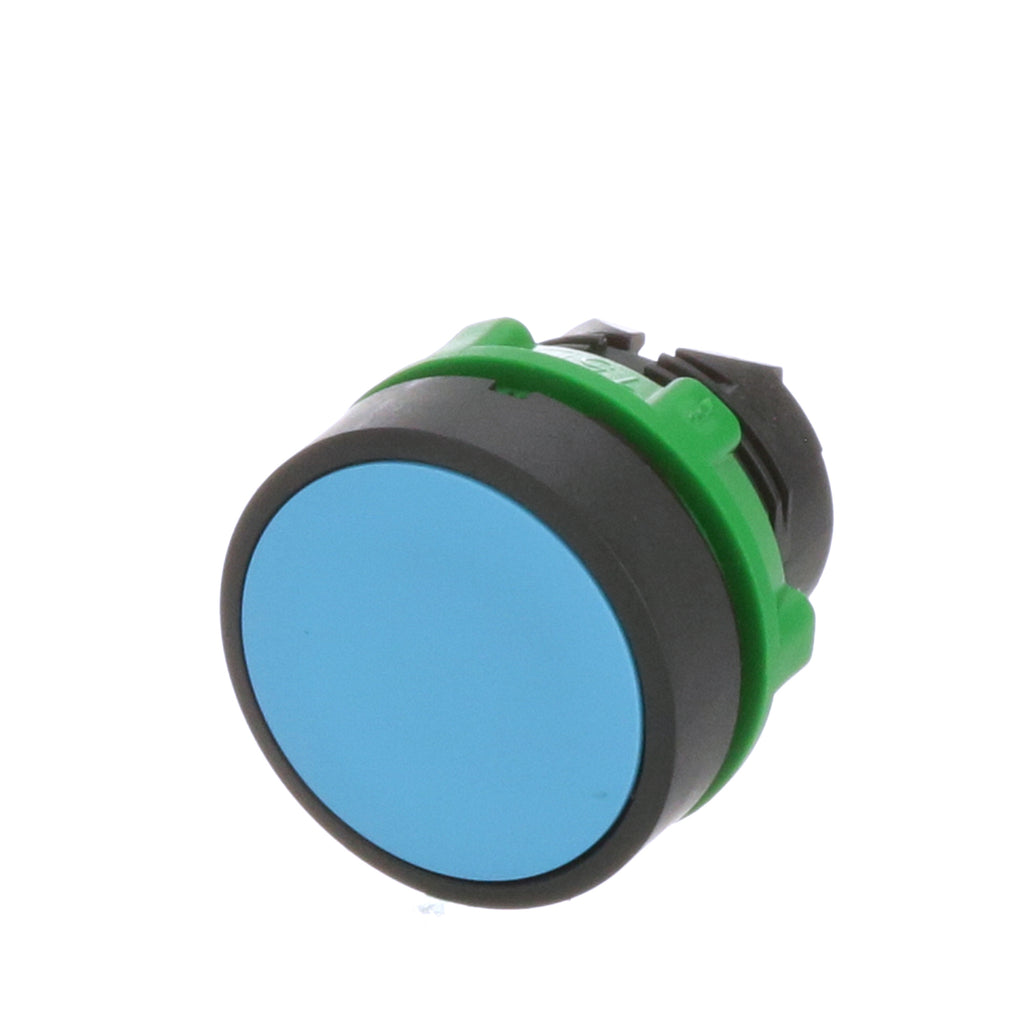

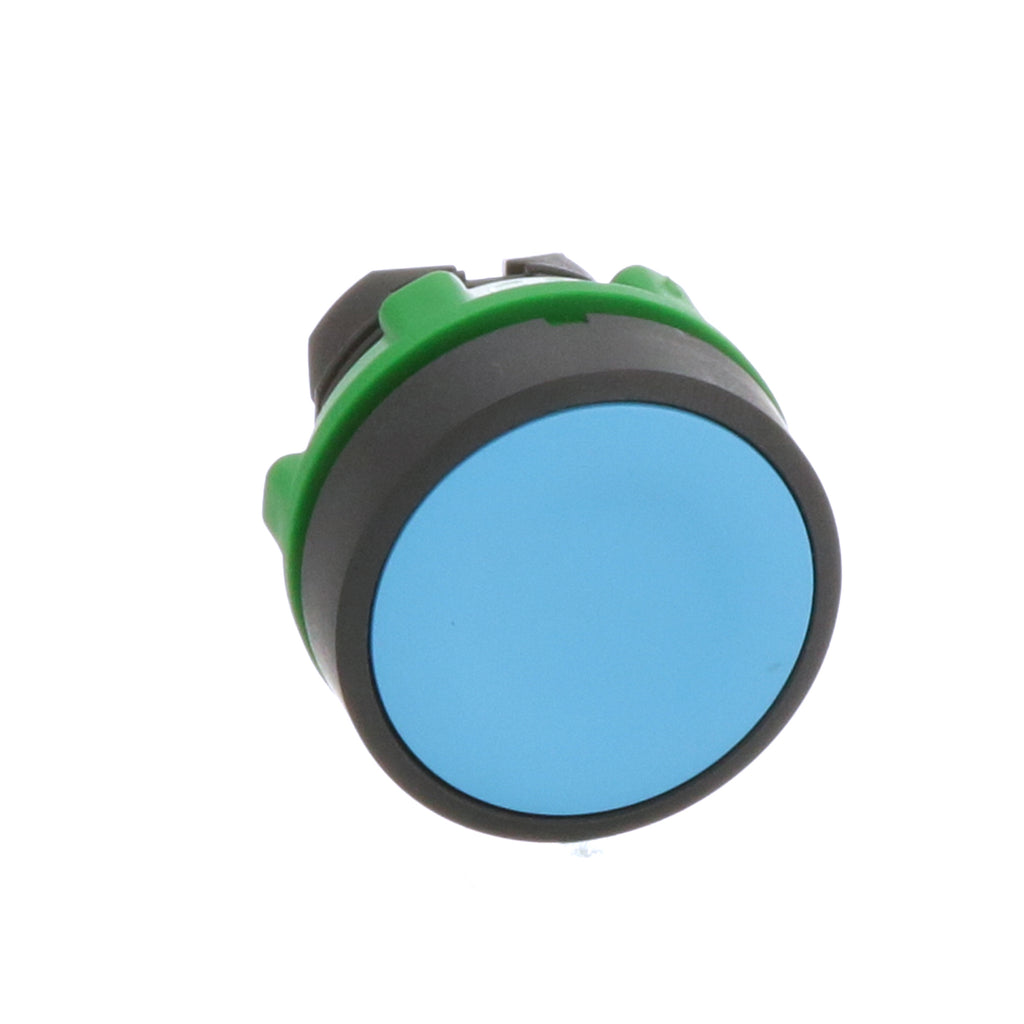

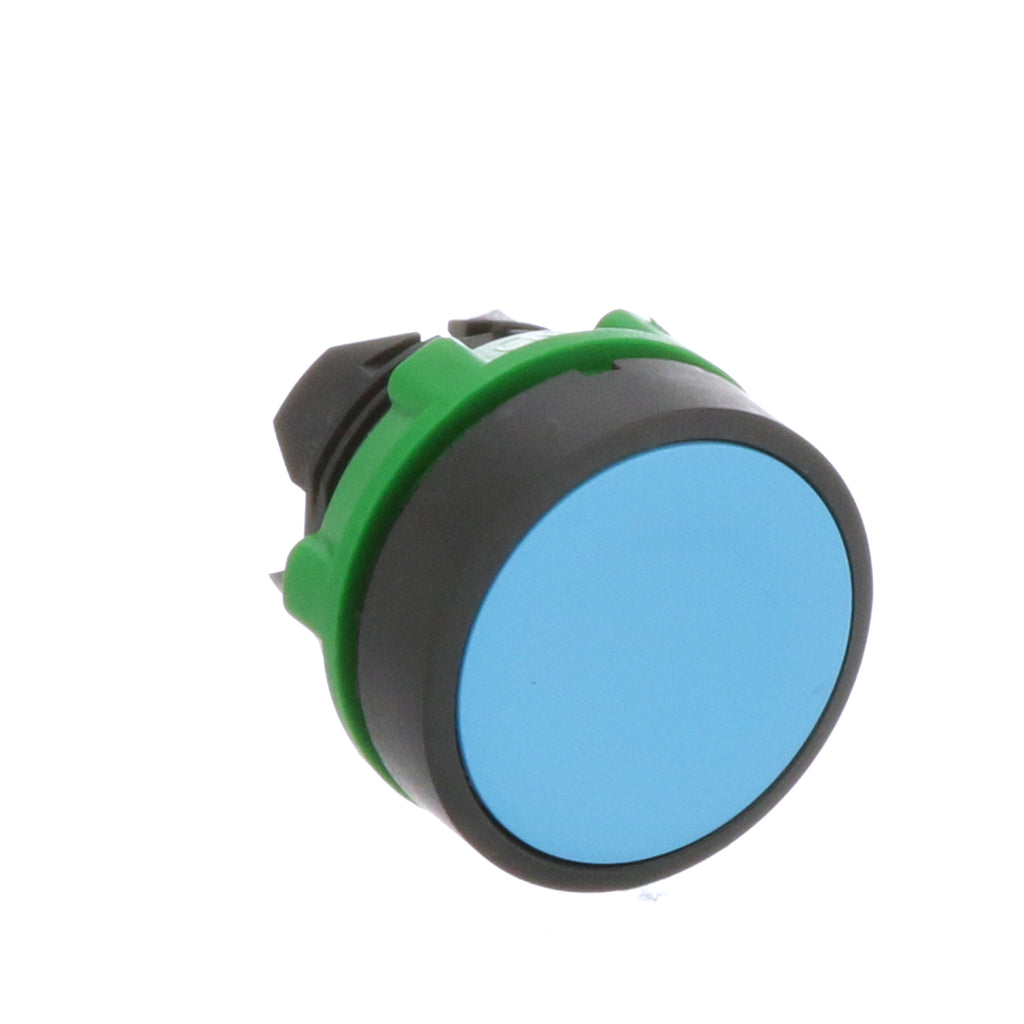

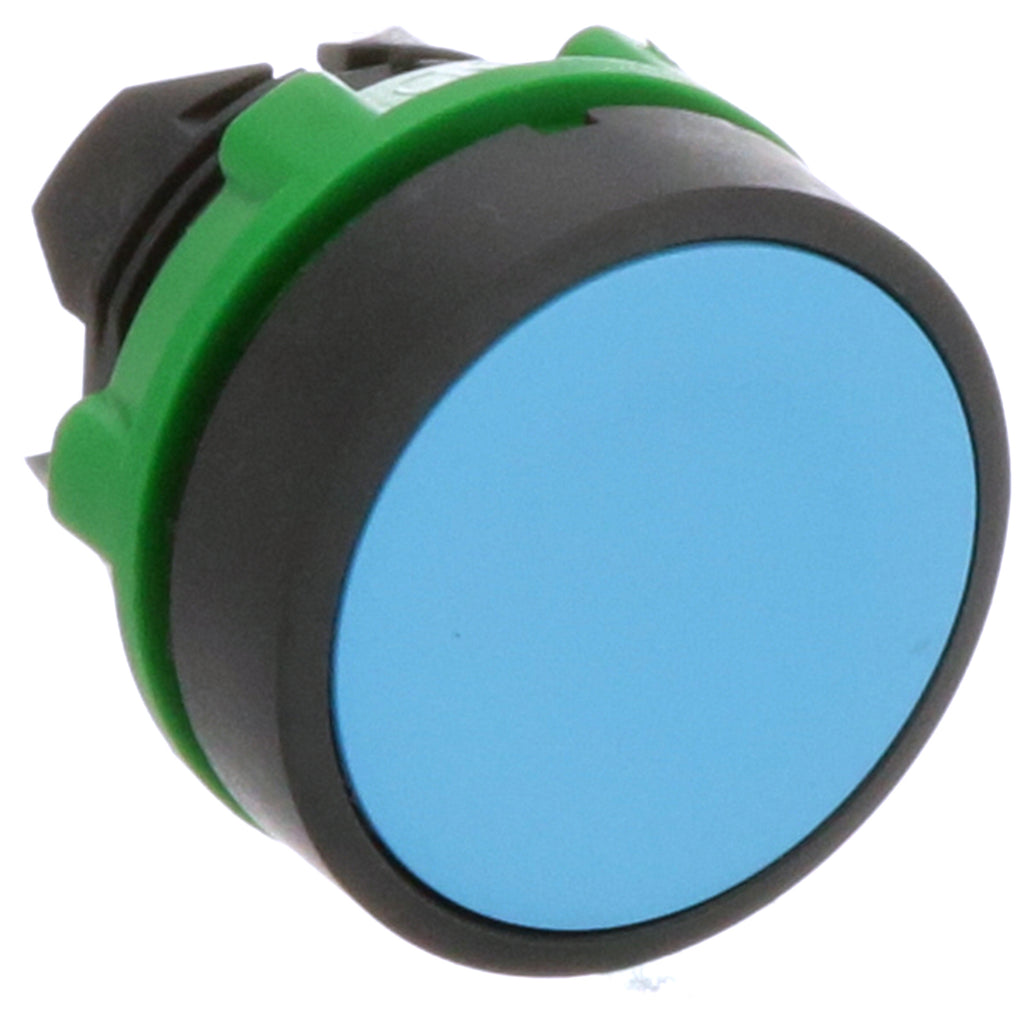

ZB5AA6 - Square D 22mm Blue Round Flush Momentary Non-Illuminated Push Button Operator

ZB5AA6

ZB5AA6 is a Square D 22mm blue round flush momentary push button operator designed for motor control applications.This non-illuminated push button features a plastic bezel with a flush mounting style and a spring return mechanism. It is unmarked and suitable for use in NEMA 4X and 13 rated enclosures, providing protection ratings of IP66, IP67, and IP69K according to IEC 60529 standards. The operator is durable with a high mechanical life of up to 10 million cycles and operates reliably within a temperature range of -40 to 70 degrees Celsius.

Key Specifications
• Manufacturer: Square D
• Part Number: ZB5AA6
• Type: Push Button Operator
• Color: Blue
• Size: 22 mm diameter
• Mounting: Flush
• Operation: Momentary, spring return
• Bezel Material: Plastic
• Enclosure Ratings: NEMA 4X, 13
• Ingress Protection: IP66, IP67, IP69K
• Mechanical Life: 10,000,000 cycles
• Operating Temperature: -40 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB5AA6
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : ZB5

Product Data

• UPC : 785901373179
• GTIN : 00389110904751
• Country of Origin : France
• Weight : 0.038 lb
• Certification : Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
