ZB5AA2 - Schneider Electric Harmony XB5 Series 22mm Flush Push Button Head, Black, Spring Return, Non-Illuminated, Momentary, NEMA 4X, IP69, IK06, RoHS

ZB5AA2

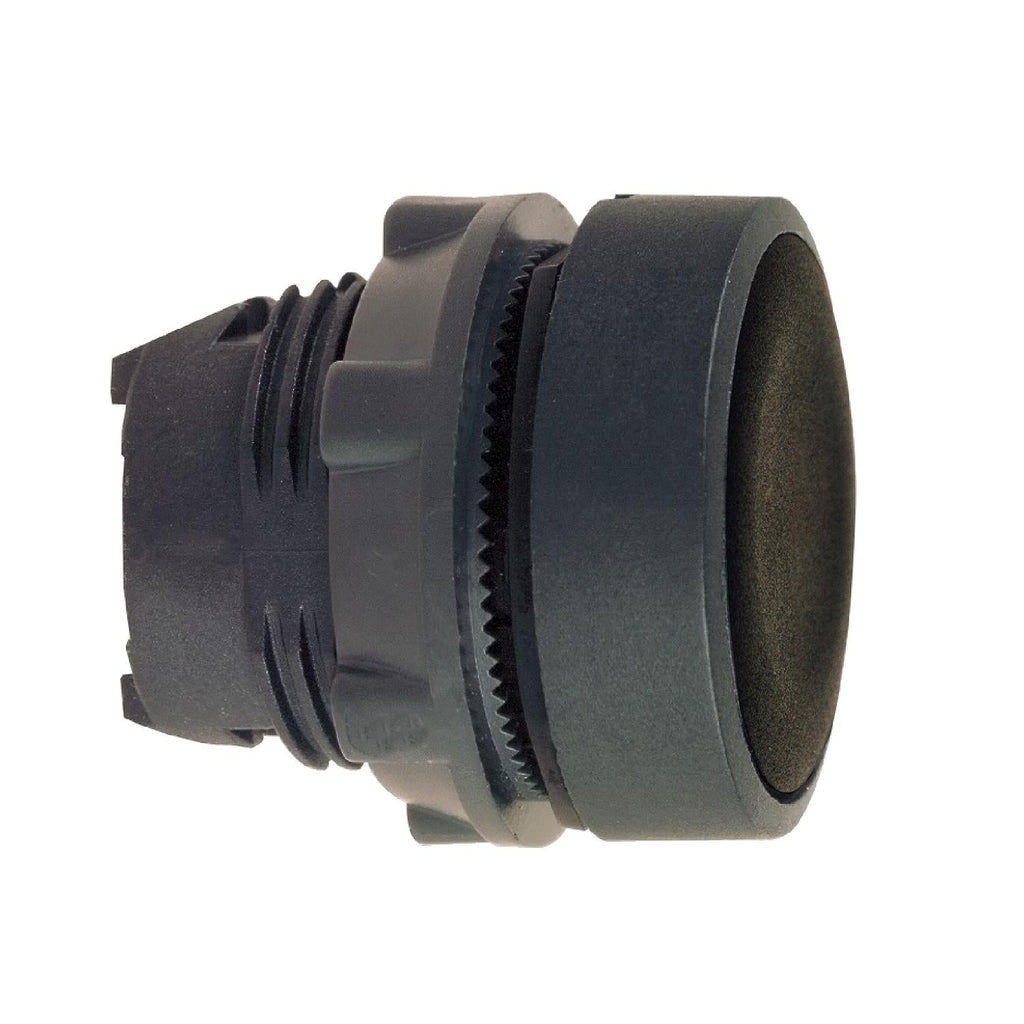

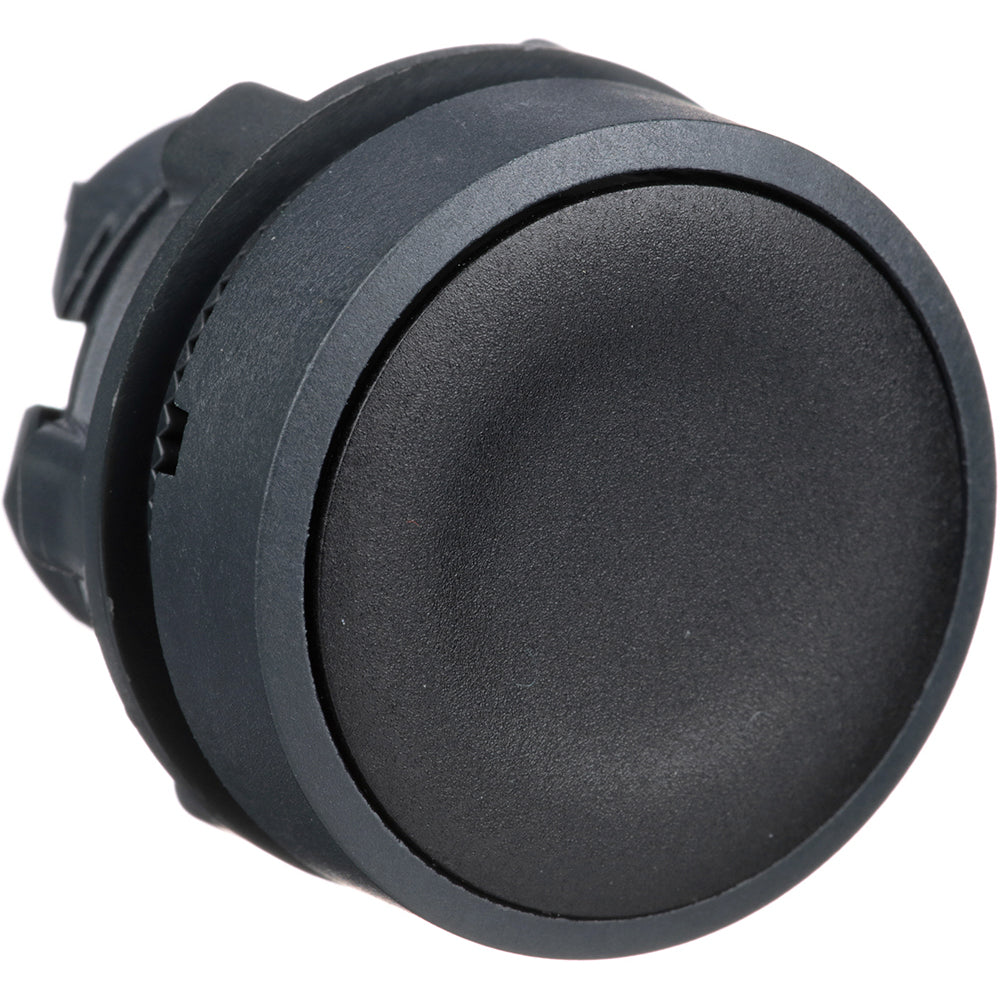

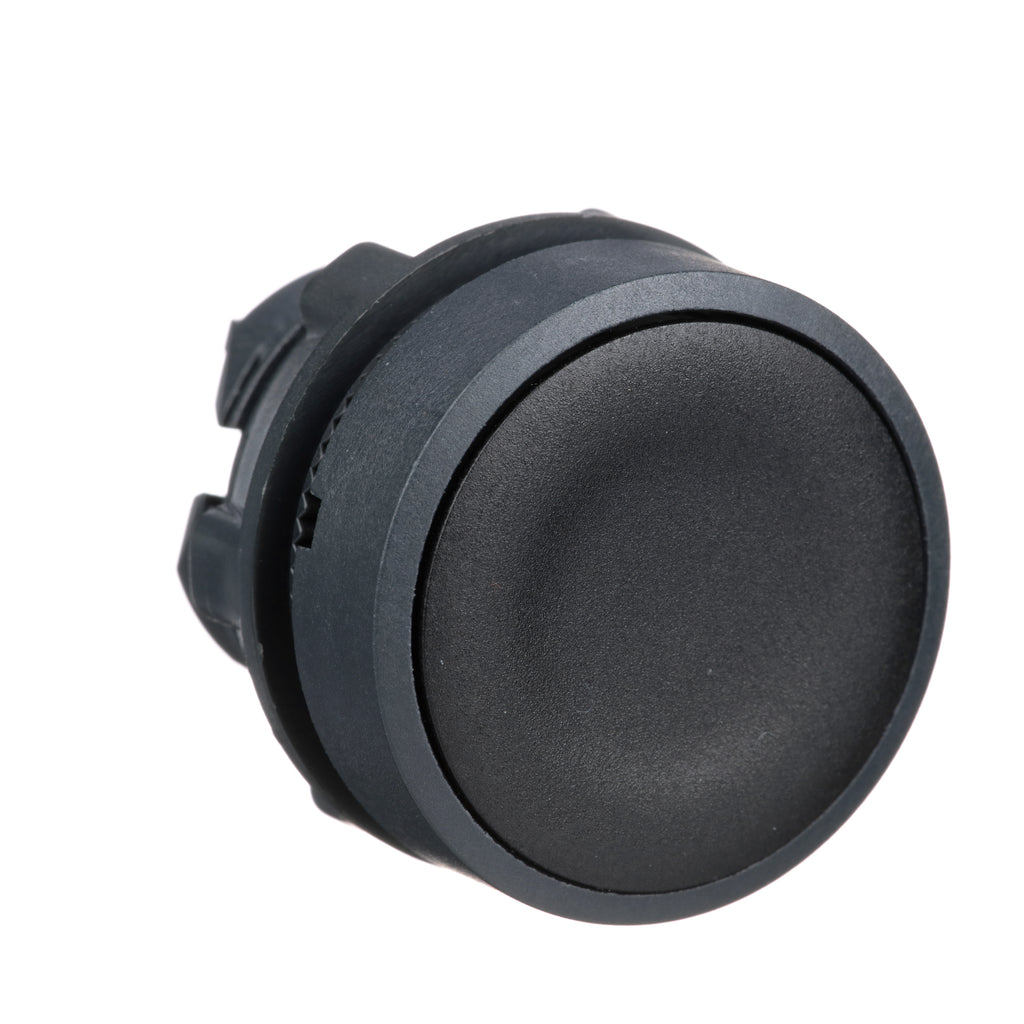

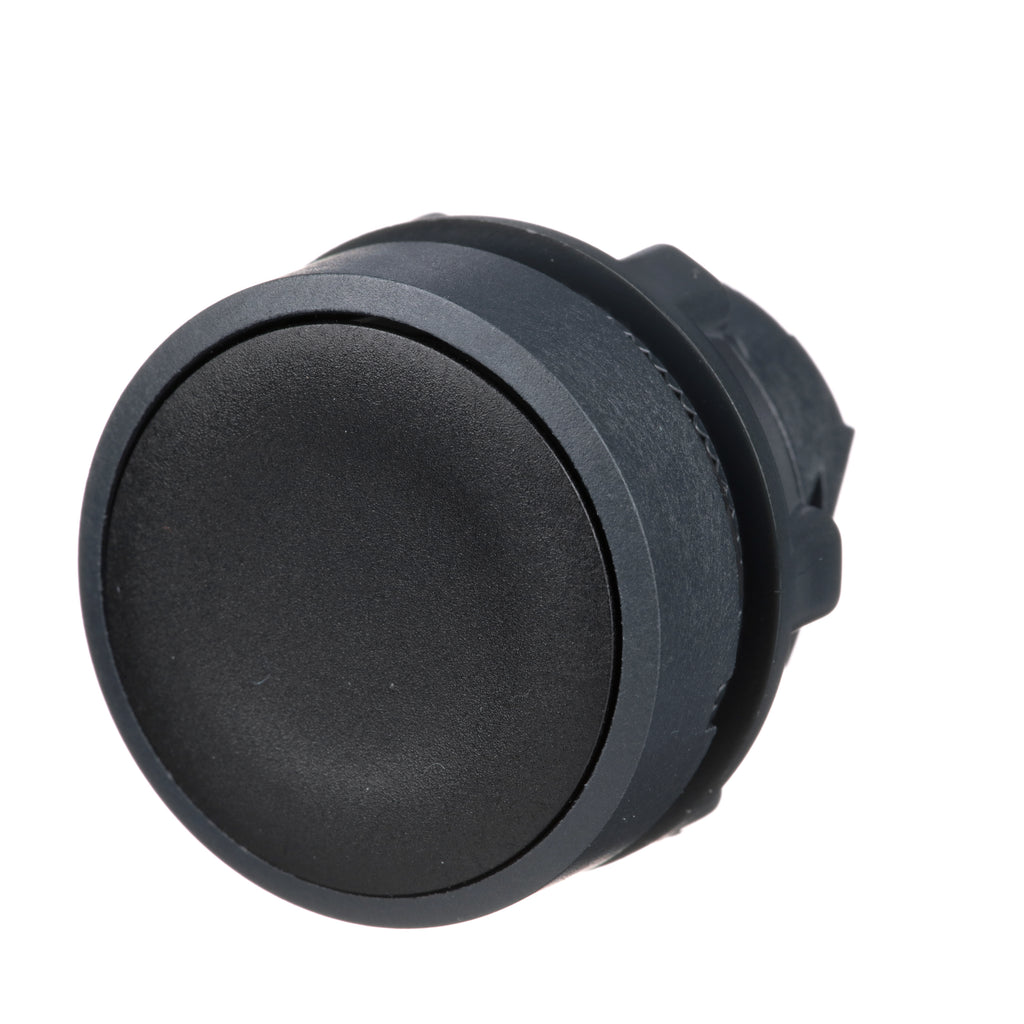

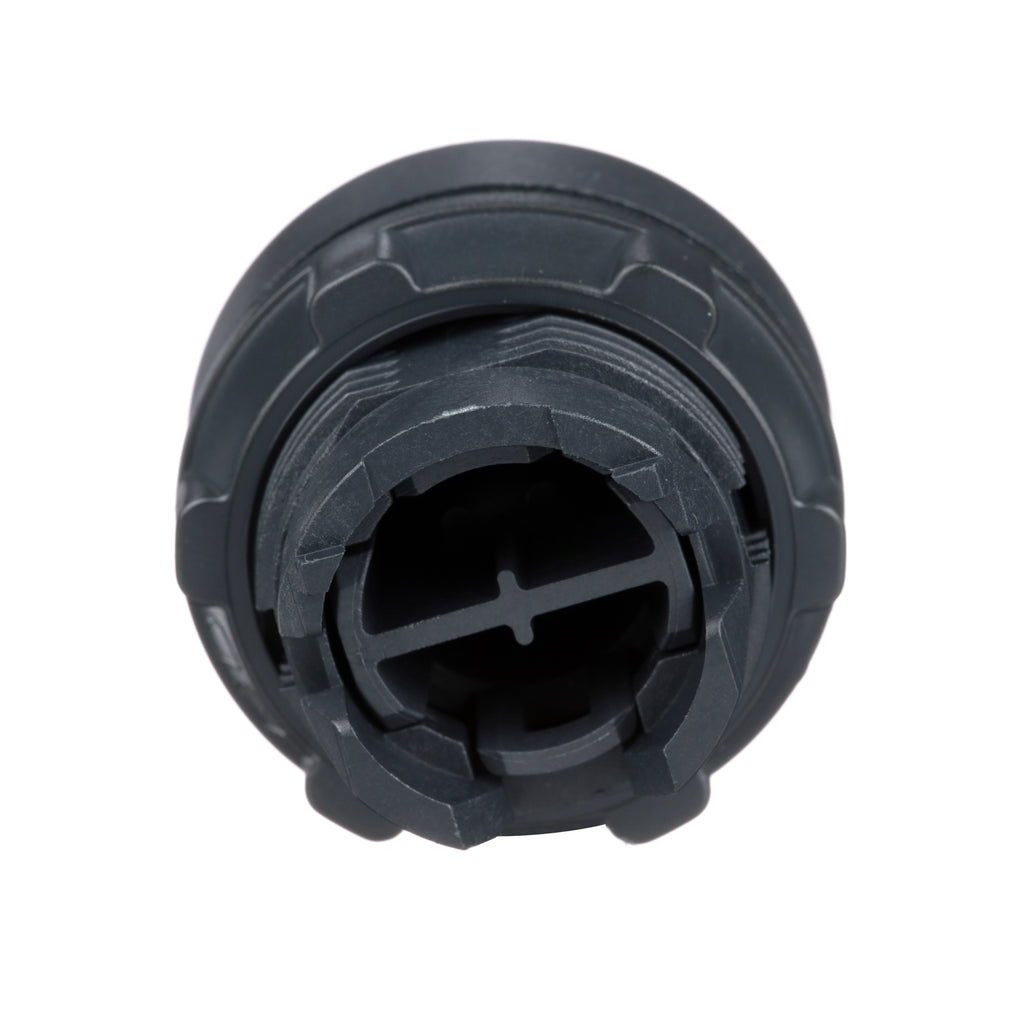

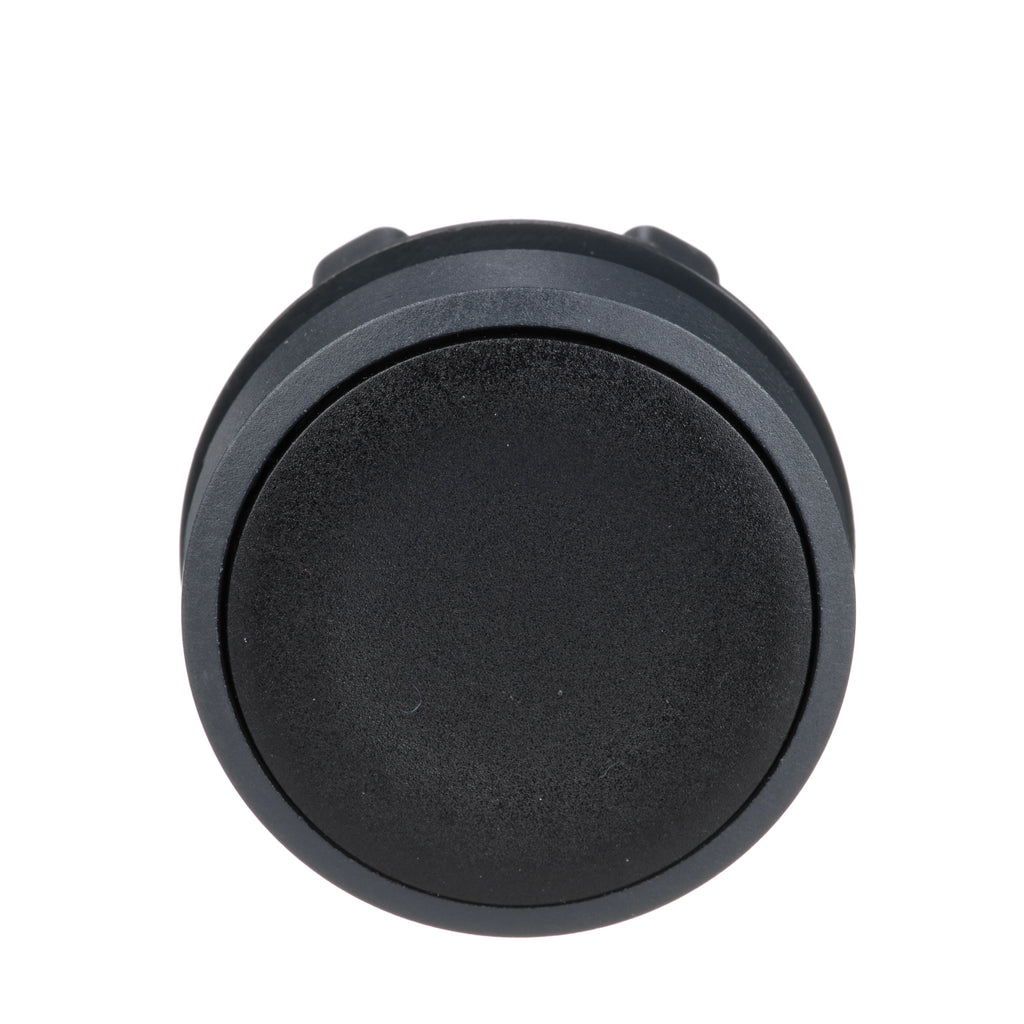

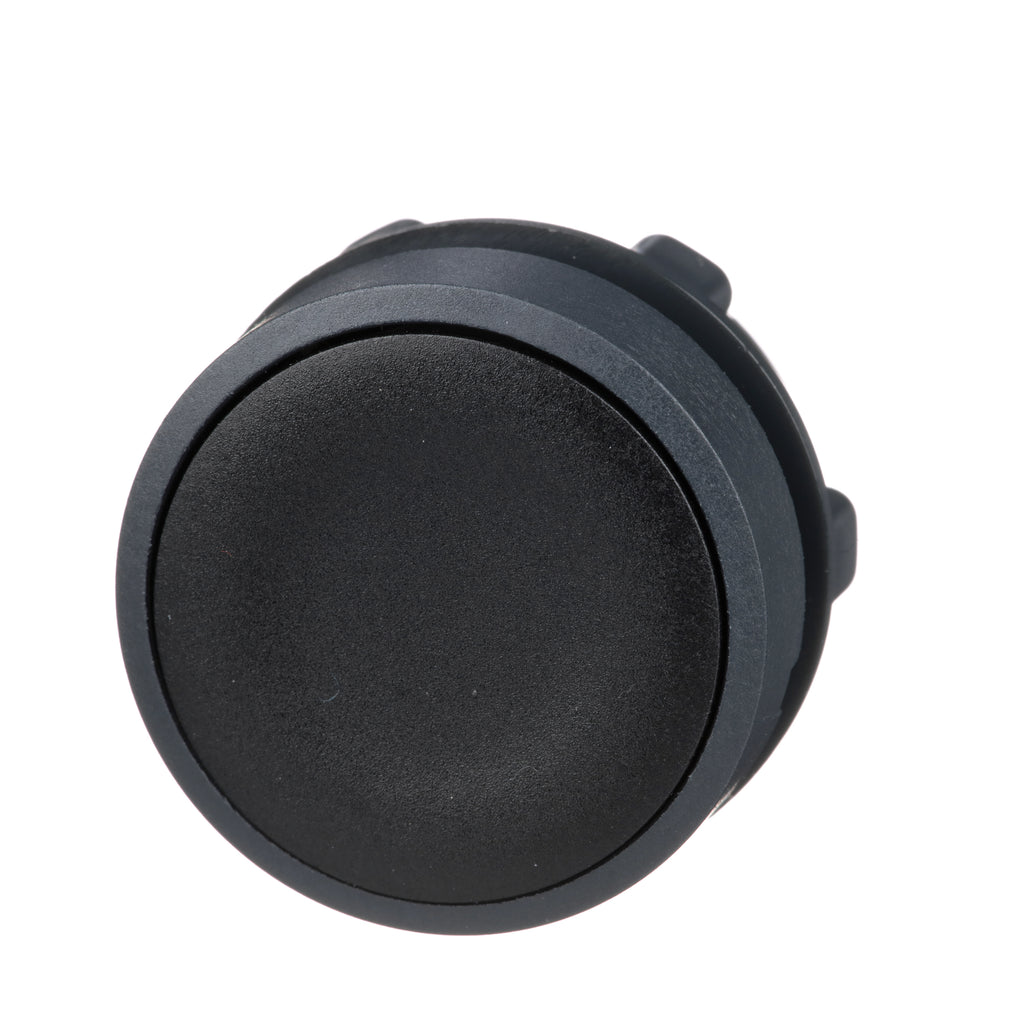

ZB5AA2 Schneider Electric Harmony XB5 Series 22mm flush push button head offers robust, momentary operation in harsh environments.

This black, non-illuminated push button head features a plastic bezel for durability, spring return action, and compatibility with a wide range of contact blocks. It is designed for easy assembly and disassembly, supports multiple connection types (screw clamp, connector, Faston, spring terminal, PCB), and is rated for high mechanical durability. Ideal for industrial control panels requiring reliable, maintenance-free operation.

Key Specifications

• Series/Frame: Harmony XB5
• Mounting Type: Panel mount, 22mm cut-out
• Actuator Type: Flush, spring return, momentary
• Color: Black, unmarked
• Material: Plastic
• Environmental Ratings: IP69, IK06, NEMA 4X
• Certifications: RoHS, REACh compliant
• Mechanical Durability: 10,000,000 cycles
• Operating Temperature: -40°F to 158°F (-25°C to 70°C)
• Connection Types: Screw clamp, connector, Faston, spring terminal, PCB
• Amperage, Voltage, Poles, Interrupt Rating, Trip Unit: Not specified (actuator only; depends on contact block used)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB5AA2
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Switch
• Item Subcategory : Parts & Accessories
• Section : Switch Actuators, Switch Operators
• Family : Harmony XB6 / XB6E Family
• Type : Harmony XB6 Series
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 38911090443
• GTIN : 03389110904437
• Country of Origin : France
• Weight : 0.038 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
