ZB4BW35 - Square D Harmony 22mm Orange Illuminated Flush Push Button Operator, Spring Return, Metal

ZB4BW35

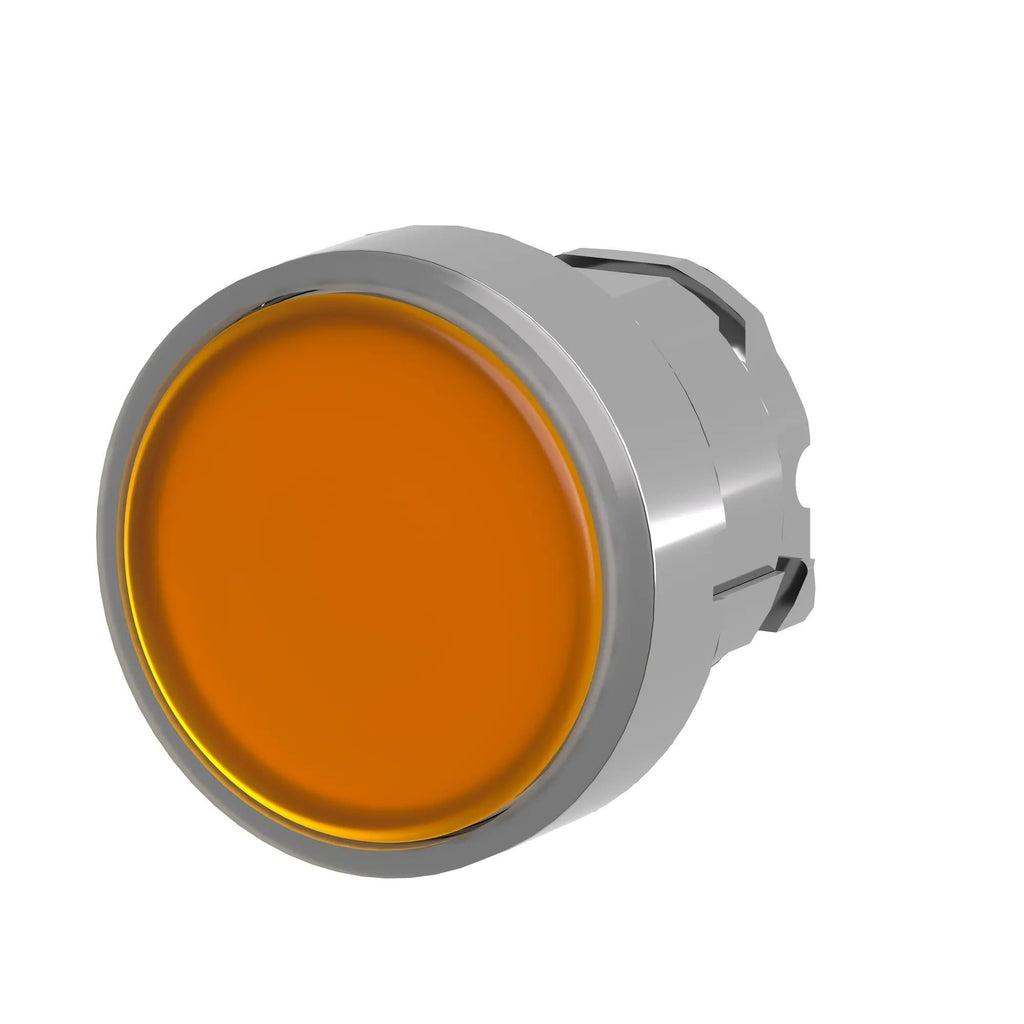

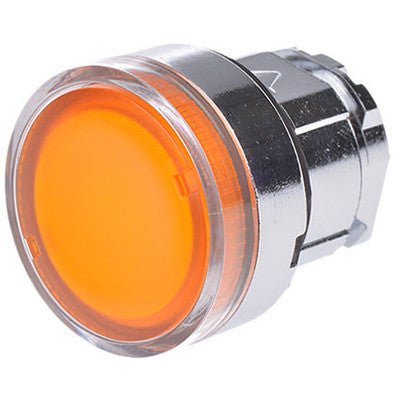

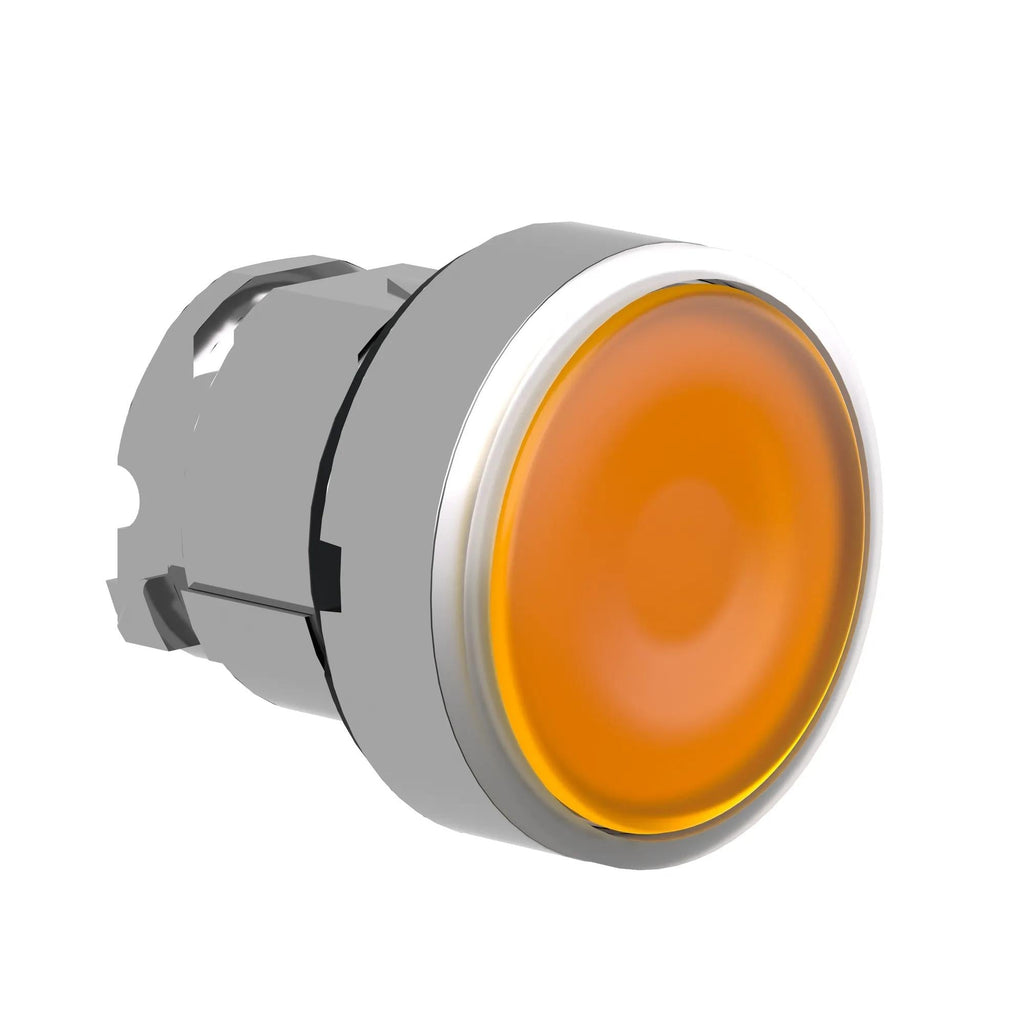

ZB4BW35 is a Square D Harmony series 22mm illuminated push button operator with an orange flush actuator and spring return mechanism.

This push button head features a robust chromium-plated metal bezel designed for panel mounting. It is illuminated with a plain lens for BA9s bulb and offers quick and easy assembly and disassembly. The operator is suitable for harsh environments and complies with multiple standards including UL 508, CSA C22.2 #14, and IEC 60947 series. It is rated for IP66, IP67, IP69, and IP69K enclosures, ensuring high resistance to dust and water ingress.

Key Specifications
• Series: Harmony XB4
• Operator Type: Illuminated Push Button
• Actuator Color: Orange
• Mounting Type: Panel Mount
• Bezel Material: Chromium Plated Metal
• Size: 22 mm
• Operation: Momentary, Spring Return
• Lens Type: Plain for BA9s Bulb
• Standards: UL 508, CSA C22.2 #14, IEC 60947-1/5-1/5-4/5-5
• Environmental Ratings: NEMA 4X/13, IP66, IP67, IP69, IP69K
• Compliance: RoHS, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB4BW35
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : ZB4
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901354765
• Country of Origin : Czechia
• Weight : 0.063 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
