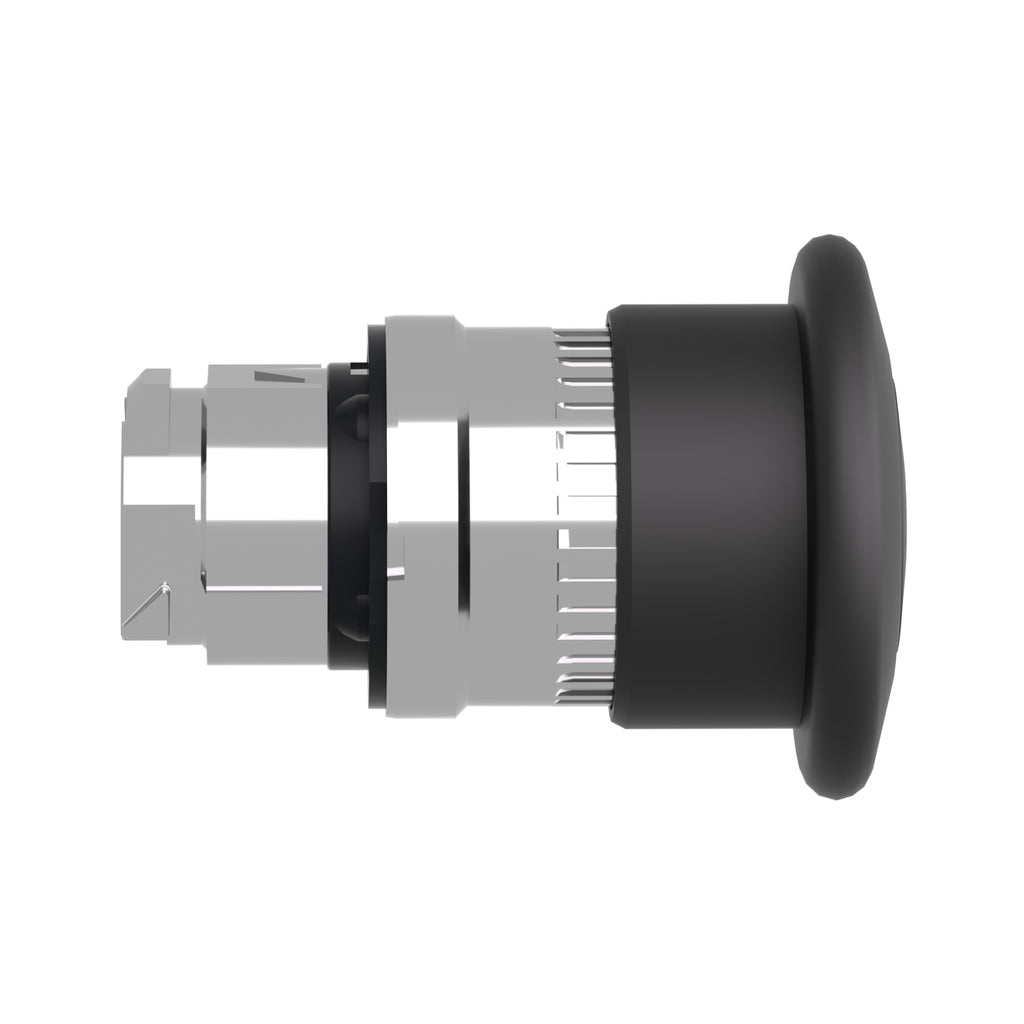

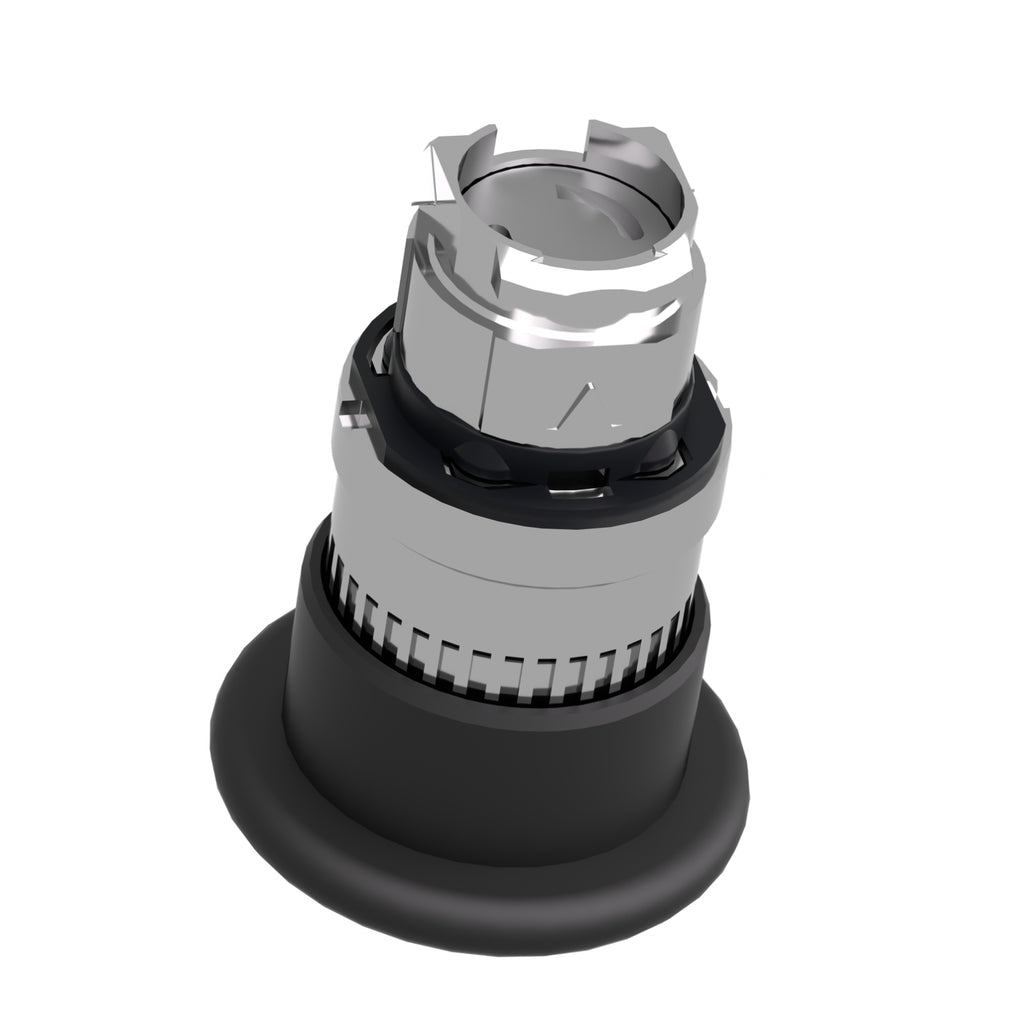

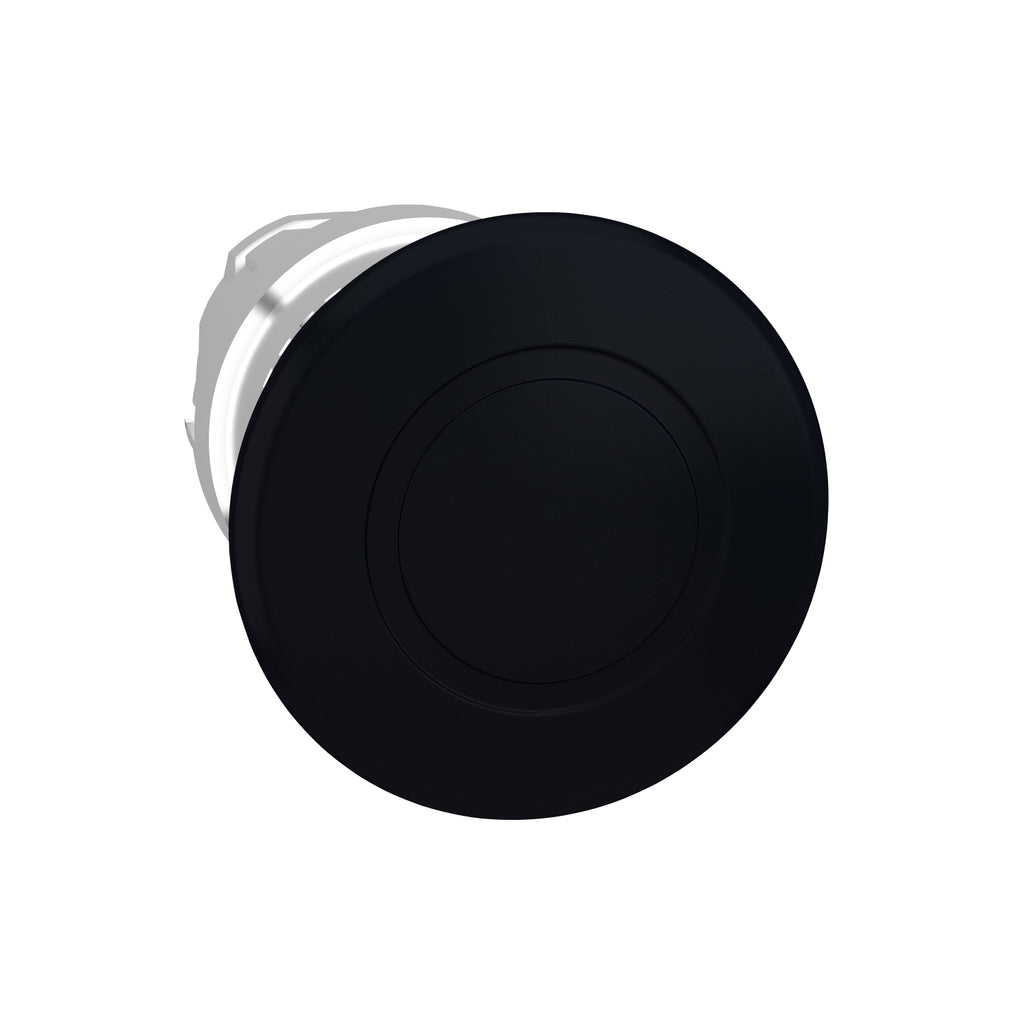

ZB4BT2 - Schneider Electric Harmony XB4 22mm Metal Mushroom Push Button Head, Black, Non-Illuminated, Maintained

ZB4BT2

ZB4BT2 is a Harmony XB4 22mm metal mushroom push button head designed for industrial motor control applications. This black, non-illuminated, maintained push button features a robust chromium-plated metal bezel and is engineered for reliable operation in demanding environments. The ZB4BT2 push button head is compatible with a range of Schneider Electric Harmony XB4 accessories and mounting options. Its latching push-pull mechanism ensures secure actuation, while the IP66, IP67, IP69, and IP69K ratings provide protection against dust and water ingress. The button is suitable for use in applications requiring NEMA 13 and NEMA 4X enclosures.

• Manufacturer: Schneider Electric
• Series: Harmony XB4
• Mounting Hole Diameter: 22mm
• Push Button Type: Mushroom Head, Extended
• Push Button Color: Black
• Push Button Material: Chromium-plated Metal
• Operation Type: Maintained (MA)
• Operator Illumination: Non-Illuminated
• Standards: UL 508, CSA, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, NEMA 13, NEMA 4X
• Environmental Rating: IP66, IP67, IP69, IP69K
• IK06 Impact Resistance
• Operating Temperature: -40°C to 70°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB4BT2
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Pushbuttons
• Family : Harmony XB4
• Type : ZB4

Product Data

• UPC : 038911088863
• GTIN : 03389110888638
• Country of Origin : Czechia
• Dimensions : 1.57" X 1.57" X 2.20"
• Weight : 0.168 lb
• Certification : Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
