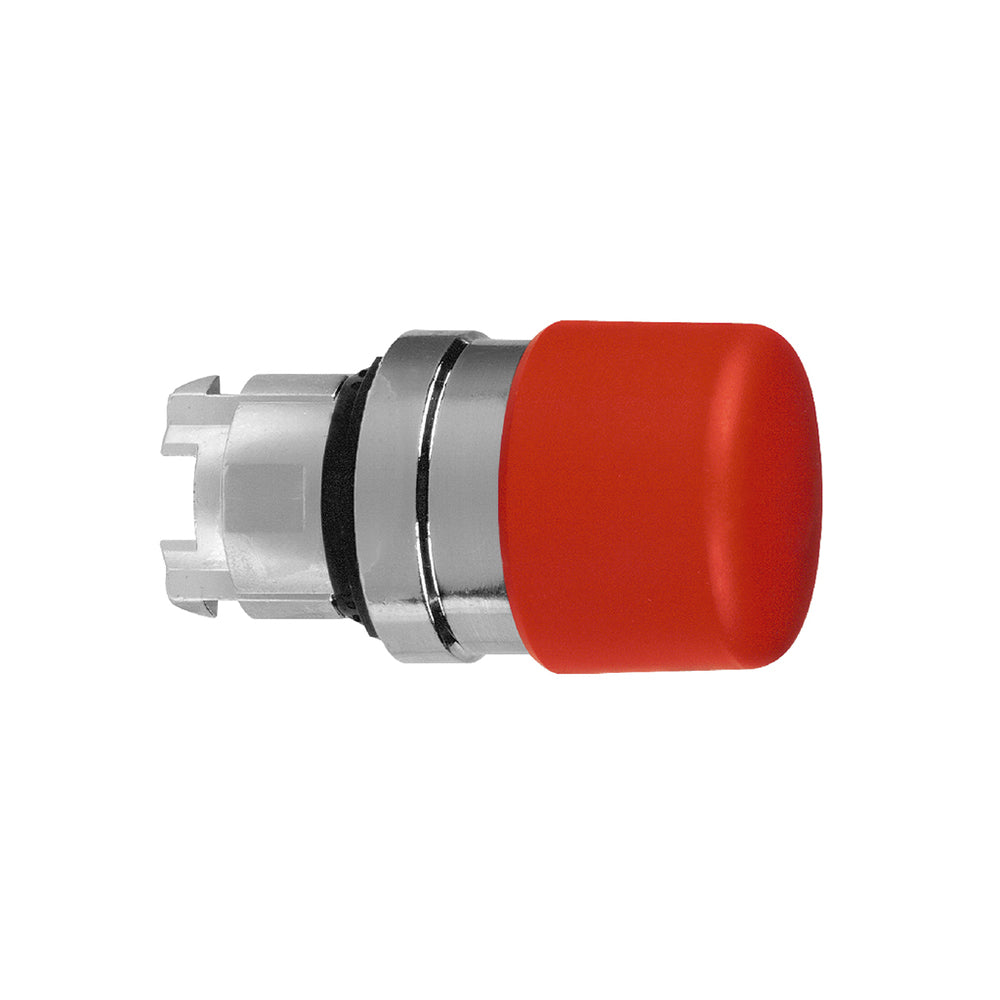

ZB4BC44 - Square D Harmony XB4 22mm Red Mushroom Momentary Pushbutton

ZB4BC44

ZB4BC44 is a non-illuminated pushbutton operator head designed for the Schneider Electric Harmony XB4 series control systems. This red mushroom-head actuator features a 30mm diameter face with spring return mechanism and 22mm mounting size, ideal for emergency stop and control applications requiring momentary operation. The unit is constructed with chromium-plated metal components and delivers reliable performance in demanding industrial environments. Key Specifications

• Part Number: ZB4BC44
• Manufacturer: Square D (Schneider Electric)
• Actuator Type: Mushroom Head Pushbutton
• Color: Red
• Operation: Momentary with Spring Return
• Face Diameter: 30mm
• Mounting Size: 22mm
• Operating Temperature Range: -40 to +70 degrees C
• Enclosure Rating: NEMA 4X, NEMA 13, IP66, IP69K
• Impact Resistance: IK06 per IEC 50102
• Standards: EN/IEC 60947-5-5, EN/IEC 60947-5-1, IEC 60536 Class I
• Mounting Style: Panel Mount

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB4BC44
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : ZB4

Product Data

• UPC : 785901381945
• GTIN : 00389110888402
• Country of Origin : Czechia
• Weight : 0.163
• Certification : Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
