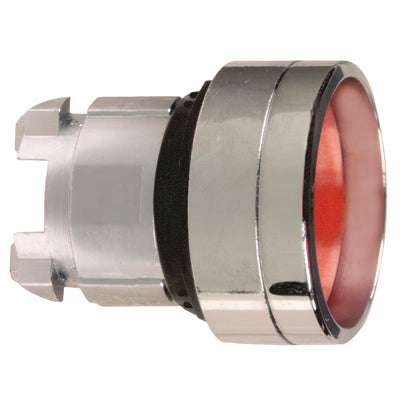

ZB4BA46 - Square D Harmony XB4 22mm Red Recessed Push Button, Metal High Guard, Spring Return

ZB4BA46

ZB4BA46 is a Square D Harmony XB4 series red recessed push button head designed for motor control applications.This metal push button features a 22mm diameter, spring return mechanism, and a high guard recessed design for enhanced protection and ergonomic operation. It is constructed with a metal bezel and head for high impact and vibration resistance, rated for NEMA 1, 2, 3, 4, 4X, and 13 environments. The button is unmarked and non-illuminated, suitable for use in harsh industrial conditions with IP66 dust and water resistance. It fits standard 22mm cutouts and offers mechanical durability up to 10 million cycles.

Key Specifications
• Manufacturer: Square D
• Series: Harmony XB4
• Part Number: ZB4BA46
• Button Diameter: 22 mm
• Color: Red
• Type: Recessed Push Button, High Guard
• Operation: Spring Return (Momentary)
• Material: Metal bezel and head
• Illumination: Non-illuminated
• NEMA Ratings: 1, 2, 3, 4, 4X, 13
• Mechanical Durability: 10,000,000 cycles
• IP Rating: IP66 (dust and water resistant)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ZB4BA46
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : ZB4



Product Data

• UPC : 785901371205
• GTIN : 00389110887948
• Country of Origin : France
• Weight : 0.075 lb
• Certification : Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
