ZB4BA26 - Square D 22mm Black Metal Momentary Non-Illuminated Push Button Operator, Harmony XB4 Series, Recessed, Guarded, NEMA 4X/13, IP66, Spring Return, Unmarked

ZB4BA26

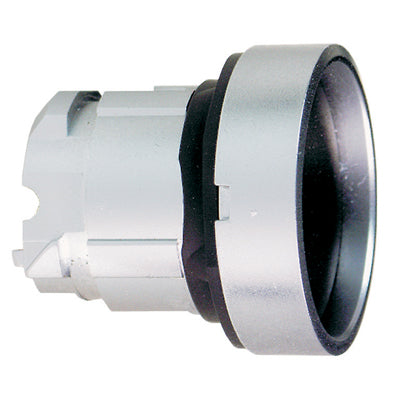

ZB4BA26 is a Square D non-illuminated, momentary push button operator head from the Harmony XB4 series, designed for robust industrial control applications.

This 22mm diameter, black, metal, recessed push button features a guarded design for safety, spring return (momentary) action, and is unmarked for universal use. It is constructed with a chromium-plated metal bezel for durability and is rated for harsh environments with NEMA 4X/13 and IP66 enclosure ratings. The operator requires separate contact blocks for circuit functionality.

Key Specifications
• Part Number: ZB4BA26
• Manufacturer: Square D (Schneider Electric)
• Series/Frame: Harmony XB4
• Operator Type: Momentary, spring return
• Illumination: Non-illuminated
• Actuator: Recessed, round, guarded push button
• Size: 22mm diameter
• Color: Black
• Material: Metal (head and bezel)
• Bezel Finish: Chromium plated
• Mounting Type: Front mounting (compatible with various contact blocks)
• Enclosure Rating: NEMA 4X/13, IP66
• Marking: Unmarked
• Environmental: Designed for harsh industrial environments
• Amperage, Voltage, Poles, Interrupt Rating, Trip Unit, Certifications: Not specified by manufacturer

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB4BA26
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : ZB4
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901354253
• GTIN : 00389110887924
• Country of Origin : France
• Weight : 0.069 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
