ZB24596 - Eaton Electrical Components 1000-Base-T Ethernet Surge Protector

ZB24596

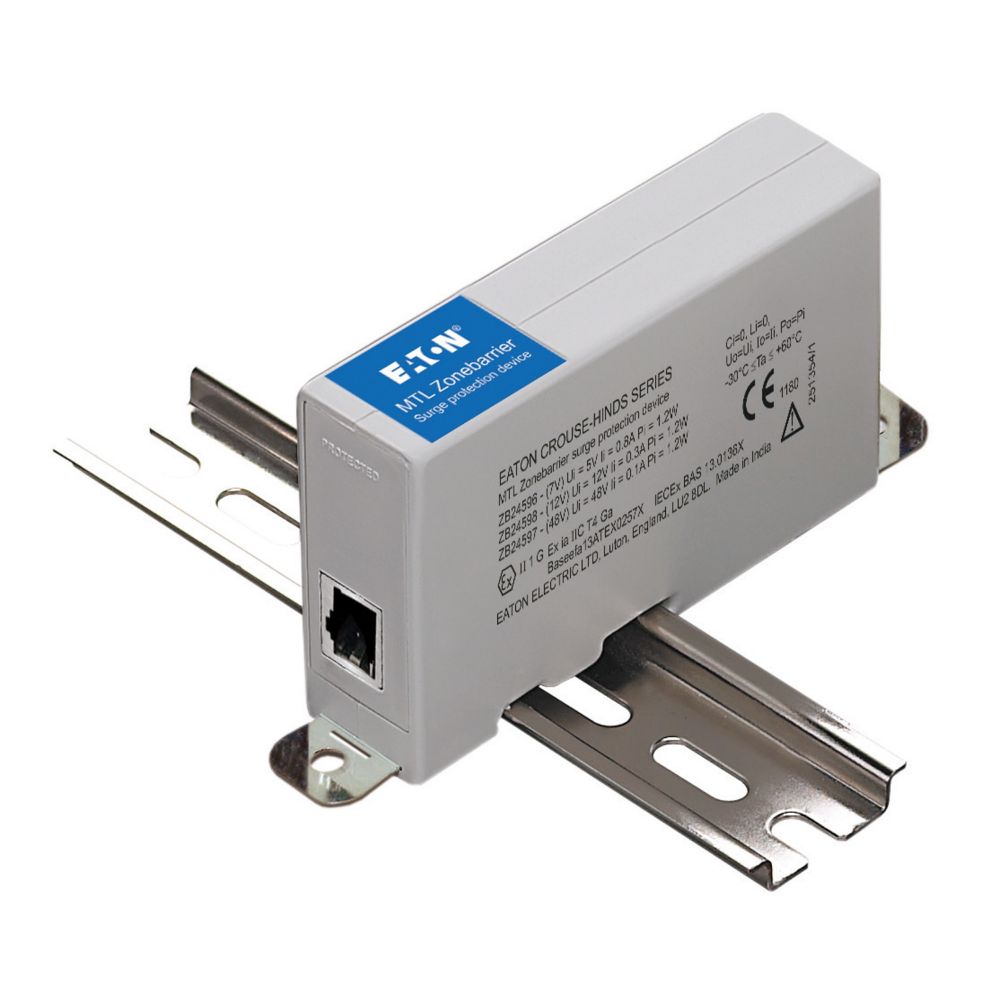

ZB24596 is an Eaton MTL ZoneBarrier High Energy Ethernet surge protection device designed for 1000-Base-T Cat 6 Ethernet applications. This device combines high-speed data line protection with industrial-grade surge capacity, featuring a rugged 10kA surge current rating and precise voltage limiting characteristics. The ZoneBarrier range is UL497B certified and available with ATEX and IECEx certifications for hazardous area applications. It includes a 10-year no-fuss warranty and is suitable for standard Ethernet installations requiring reliable surge protection. Key Specifications

• Part Number: ZB24596
• Manufacturer: Eaton
• Application: 1000-Base-T Cat 6 Ethernet
• Nominal Voltage: 5 V
• Rated Voltage: 8 V
• Voltage Protection Level: 10 V
• Maximum Surge Current: 10 kA
• Maximum Frequency: 300 MHz
• Leakage Current: Less than 1 µA
• Maximum Rated Load Current: 1.0 A
• Connector Type: RJ45
• Certifications: UL497B, ATEX, IECEx

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ZB24596
• Manufacturer : Eaton
• Brand : Eaton
• Category : Electrical Components
• Section : Surge protector
• Voltage : 5 V
• Amperage : 1.0 A
• Connection : RJ45
• Peak Pulse Current : 10 kA
• Max Clamp Voltage : 10 V
• Hz : 300 MHz
• Mounting Method : Surface DIN rail
• Certifications and compliances : UL497B, ATEX, IECEx
• IECEx/ATEX hazardous rating : Yes
• Minimum Ambient Operating Temperature : -40 deg C
• Maximum Ambient Operating Temperature : 85 deg C

Product Data

• Dimensions : 128 mm x 58 mm x 25 mm (Length/Depth x Height x Width)
