- Manufacturer:Burndy
Description
YS1CLBOX

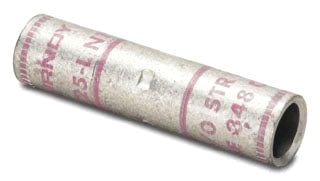

YS1CLBOX is a Burndy HYLINK compression butt splice designed for 1 AWG copper conductors with standard barrel construction and internal chamfer for reliable electrical connections. This tin-plated copper splice connector features a compact standard barrel length ideal for limited space applications and is rated for voltages up to 35kV with a 90°C temperature rating. The connector is color-coded green for easy identification and meets UL and CSA certification standards for safe, code-compliant installations.
- Conductor Size: 1 AWG
- Material: Copper, Tin Plated
- Connector Type: Standard Barrel Compression Splice
- Barrel Style: Chamfered (Internal)
- Voltage Rating: Up to 35kV
- Temperature Rating: 90°C
- Color Code: Green
- Die Index: 11 or 375
- Certifications: UL, CSA Approved
- Connection Type: Butt Splice
Specifications
- Part Number: YS1CLBOX
- Manufacturer : Burndy
- Brand : Burndy
Product Data
- UPC : 781810555002
- GTIN : 00781810555002
- Weight : 5.19
