Description
YGHR26C34

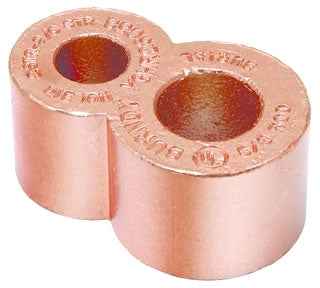

YGHR26C34 is a high torque strength copper compression ground rod connector designed for direct burial applications in earth or concrete. This Figure 8 compression tap connector accepts a wide range of stranded copper conductors and accommodates 3/4 inch ground rods with exceptional reliability. The connector is prefilled with PENETROX compound and strip sealed for enhanced corrosion protection. Key Specifications
- Conductor Size: 2 AWG to 2/0 AWG stranded copper
- Ground Rod Size: 3/4 inch
- Configuration: Figure 8 compression tap
- Material: Copper body and construction
- Crimps Required: 1
- Height: 2.19 inches
- Length: 0.88 inch
- Width: 0.755 inch
- UL467 Listed and IEEE 837 compliant
- CSA Approved
- Direct burial rated for earth and concrete
- Prefilled with PENETROX oxide inhibitor compound
Specifications
- Part Number: YGHR26C34
- Manufacturer : Burndy
- Brand : Burndy
- Category : Conduit & Fittings
- Item Subcategory : Conduit Part and Accessory
Product Data
- UPC : 781810220726
- GTIN : 00781810220726
- Weight : 0.48 lb
