YA800P7 - Square D 800A Circuit Breaker Lug Terminals Compression Lug Kit for M/P Frame

YA800P7

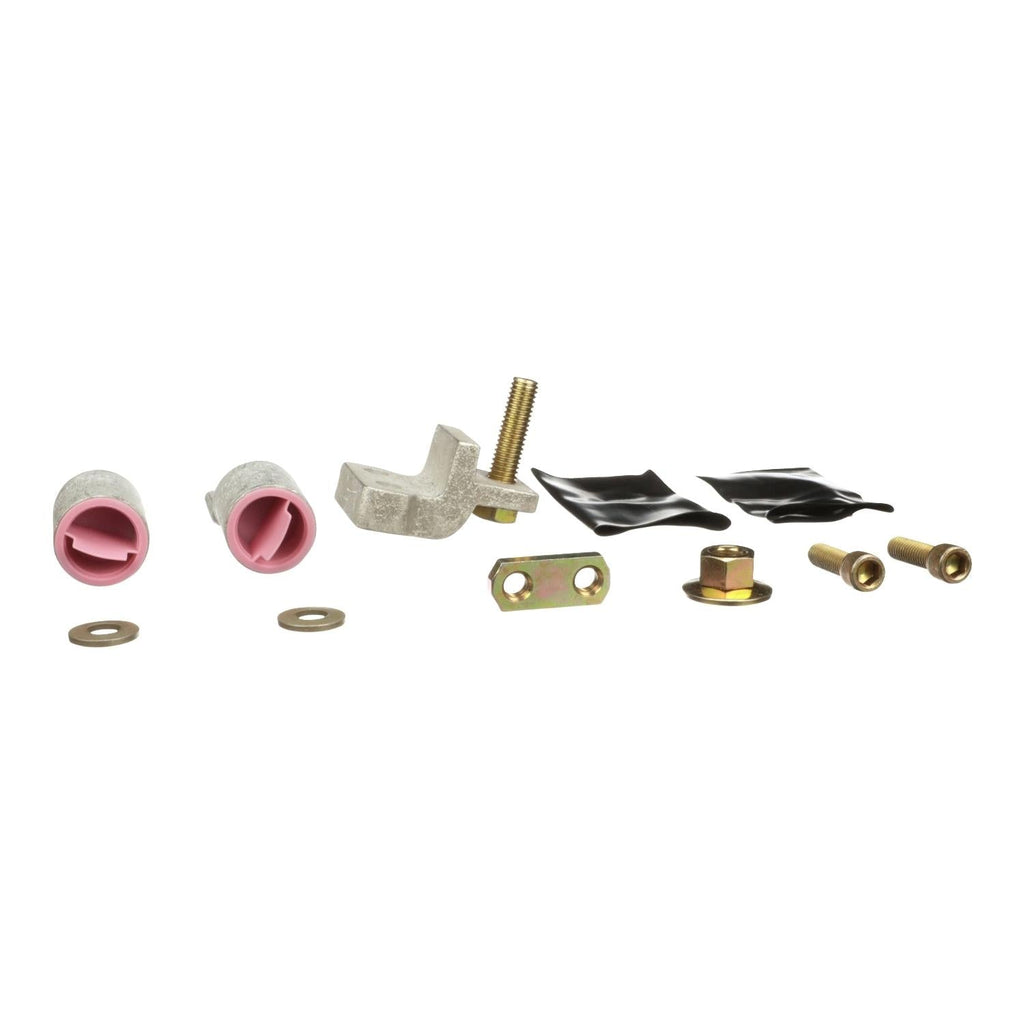

YA800P7 is a Square D circuit breaker lug terminal kit designed for 800 amp applications on M-frame and P-frame breakers.This compression lug kit is made of aluminum and is compatible with unit mount or I-Line PowerPact M-frame and P-frame 3-pole circuit breakers with electronic trip units. It supports conductor sizes from 500 to 750 kcmil aluminum or copper and features a compression mounting type for secure connections. The product is UL and CSA approved, ensuring compliance with industry safety standards.

• Amperage Rating: 800 A
• Compatible Frames: M-frame, P-frame
• Mounting Type: Unit mount, Compression
• Material: Aluminum
• Conductor Size Range: 500 to 750 kcmil aluminum/copper
• Poles: 3-pole compatibility
• Certifications: UL, CSA
• Dimensions: Approximately 4.7" H x 4.7" W x 6.4" D
• Application: PowerPact circuit breakers with electronic trip units
• Tightening Torque: 247.8 lbf-in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: YA800P7
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : Powerpact
• Type : YA
• Amperage : 800
• MCM Size : 750
• Metal Type : Aluminum
• Compatible Frames : MDL, MDM, MDP, MGL, MGM, MGP, MJL, MJM, MJP, MLL, MLM, MLP, PGL, PGM, PGP, PGD, PKL, PKM, PKP, PKD, PLL, PLM, PLP, PLD

Product Data

• UPC : 785901682882
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 2.05
• Certification : UL, CSA
• Wire Size : 500...750 kcmil aluminium
  500 kcmil copper
