Product Info
- Manufacturer:Burndy
Description
YA31L11

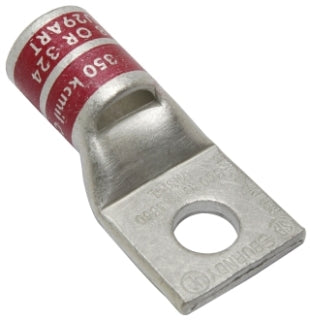

YA31L11 is a Burndy copper compression lug designed for 350 kcmil stranded copper conductors with a 1-hole, 3/8-inch stud size and a standard barrel.YA31L11 features an internal chamfer at the wire entry for smooth insertion, preventing strand damage, and includes an inspection window for easy verification of proper wire insertion. It is tin plated and color-coded red for identification. The lug is UL Listed, CSA Certified, and RoHS Compliant, rated for voltages up to 35 kV.
- Conductor Size: 350 kcmil stranded copper
- Connection Type: Compression lug
- Number of Holes: 1
- Stud Size: 3/8 inch
- Barrel Type: Standard barrel with internal chamfer
- Voltage Rating: Up to 35,000 V (35 kV)
- Material: Copper, tin plated
- Inspection Window: Yes
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Color Code: Red
Specifications
- Part Number: YA31L11
- Manufacturer : Burndy
- Brand : Burndy
Product Data
- UPC : 781810018040
- GTIN : 00781810018040
- Weight : 0.18 lb
