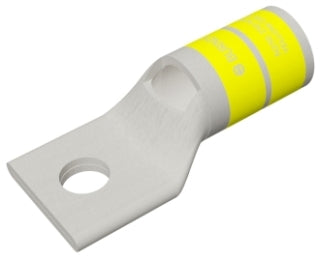

YA29L4 - Burndy 250 kcmil Copper Compression Lug 1-Hole 3/8 Stud Short Barrel 90 Deg C UL/CSA

YA29L4

YA29L4 is a high-quality copper compression lug designed for reliable electrical connections in power distribution applications. This lug features a short barrel, one hole, and a 3/8 inch stud size, making it ideal for terminating 250 kcmil stranded copper conductors. The lug is tin plated for corrosion resistance and includes an inspection window for easy installation verification. It is rated for use up to 35 kV and meets UL 467 and CSA standards. This Burndy HYLUG terminal is constructed from seamless high-conductivity electrolytic copper tubing with heavy-duty wall thickness for long-lasting performance. The internal chamfer and skived barrel ensure a secure fit and proper cable entry. The lug is RoHS compliant and suitable for use in a wide range of industrial and commercial environments.

• Part Number: YA29L4
• Manufacturer: Burndy
• Conductor Size: 250 kcmil Stranded
• Conductor Material: Copper
• Barrel Type: Short, Skived, Standard
• Stud Size: 3/8 Inch
• Number of Pad Holes: 1
• Die Index: 16
• Approval: UL 467, CSA
• Color: Yellow
• Temperature Rating: 90 Deg C
• Wire Strip Length: 1-1/8 Inch

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: YA29L4
• Manufacturer : Burndy
• Brand : Burndy
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 42kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 781810554524
• GTIN : 00781810554524
• Weight : 0.12 lb
