Description
XVBC38

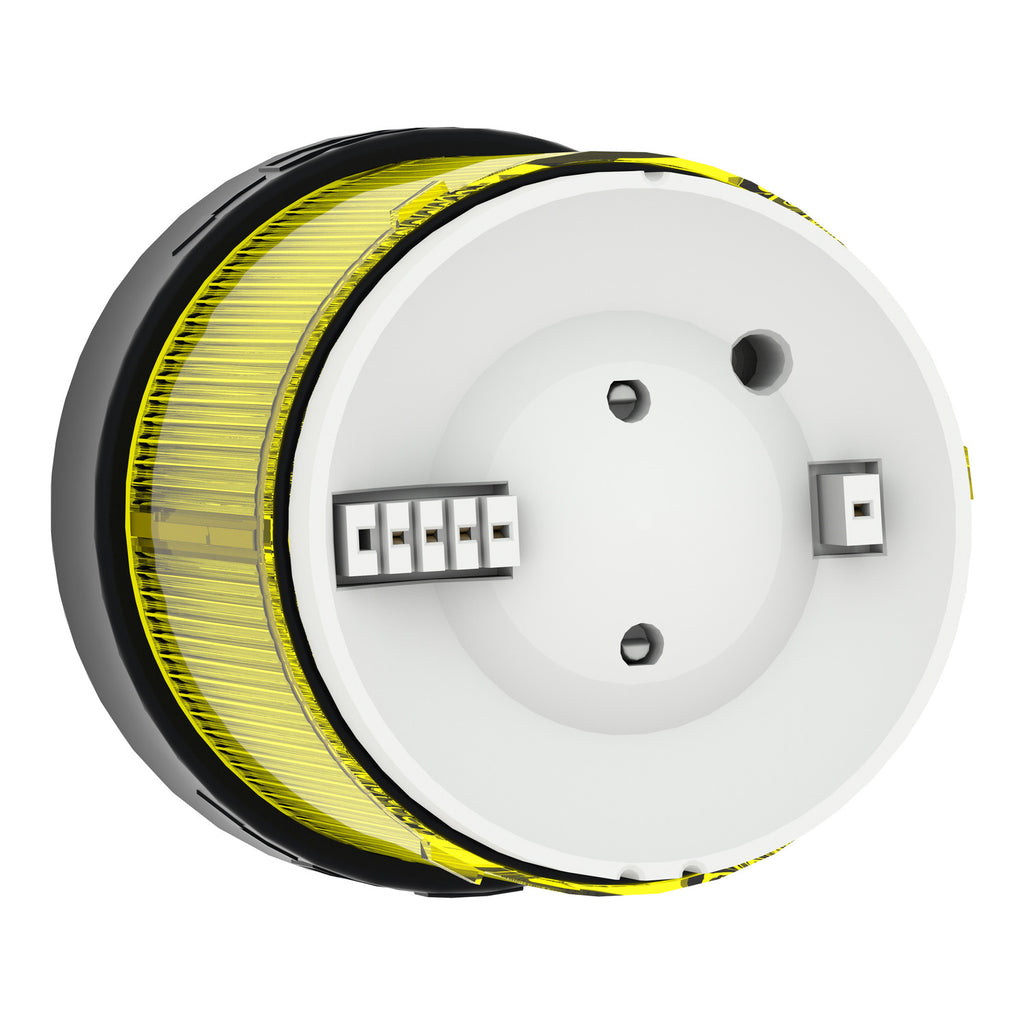

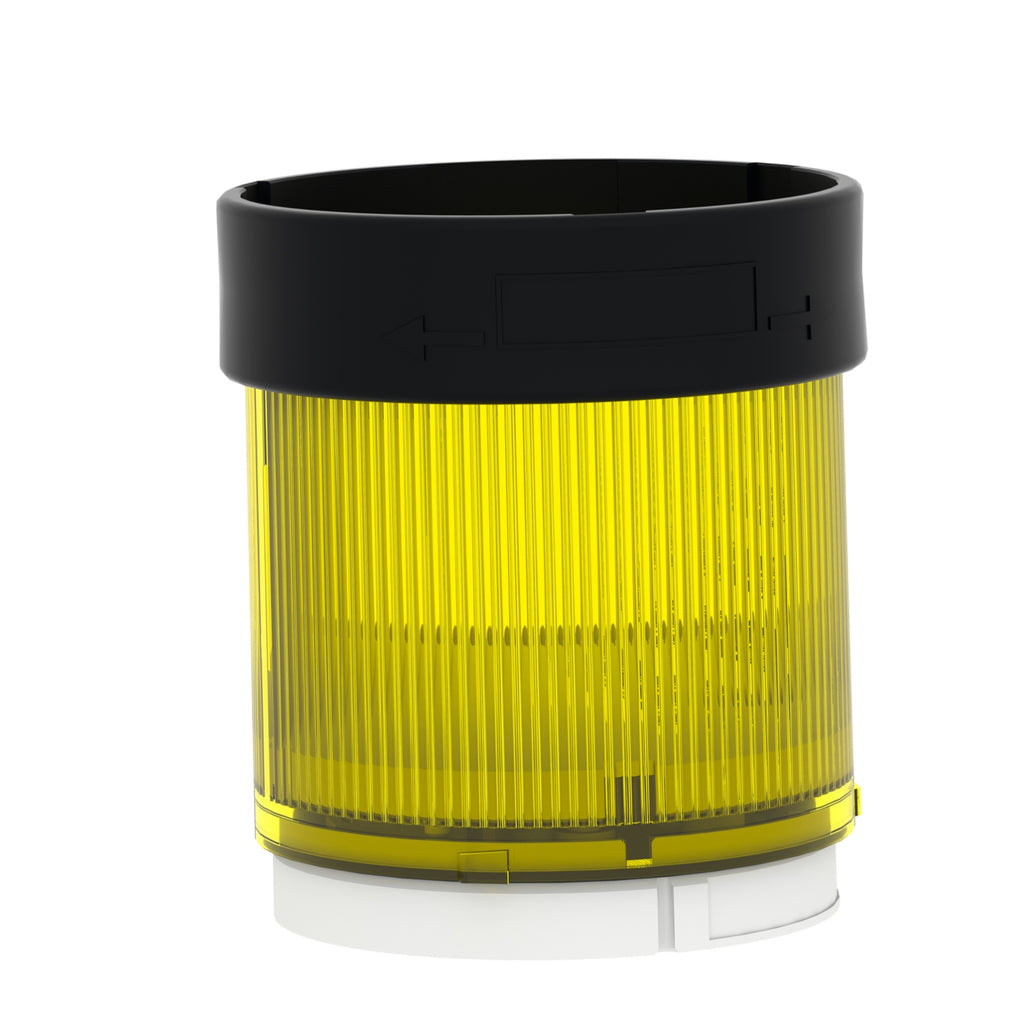

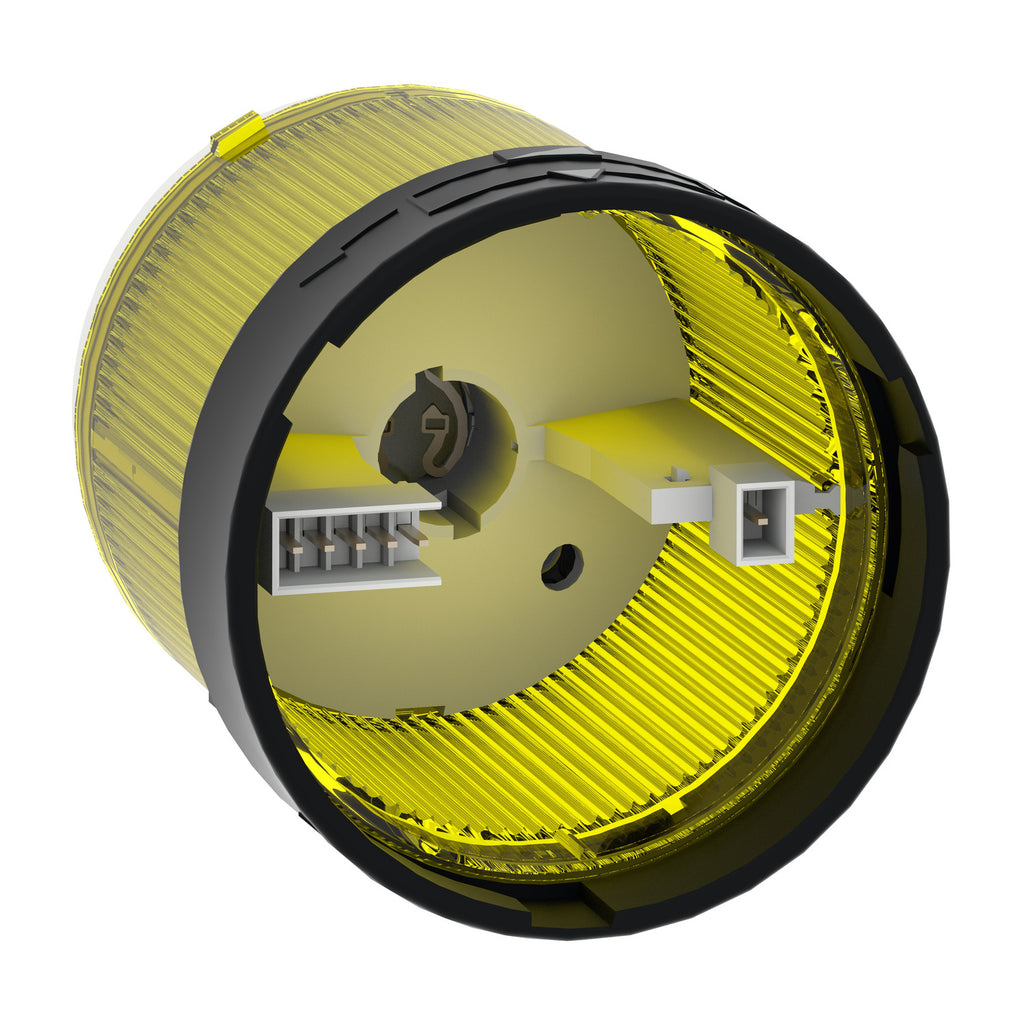

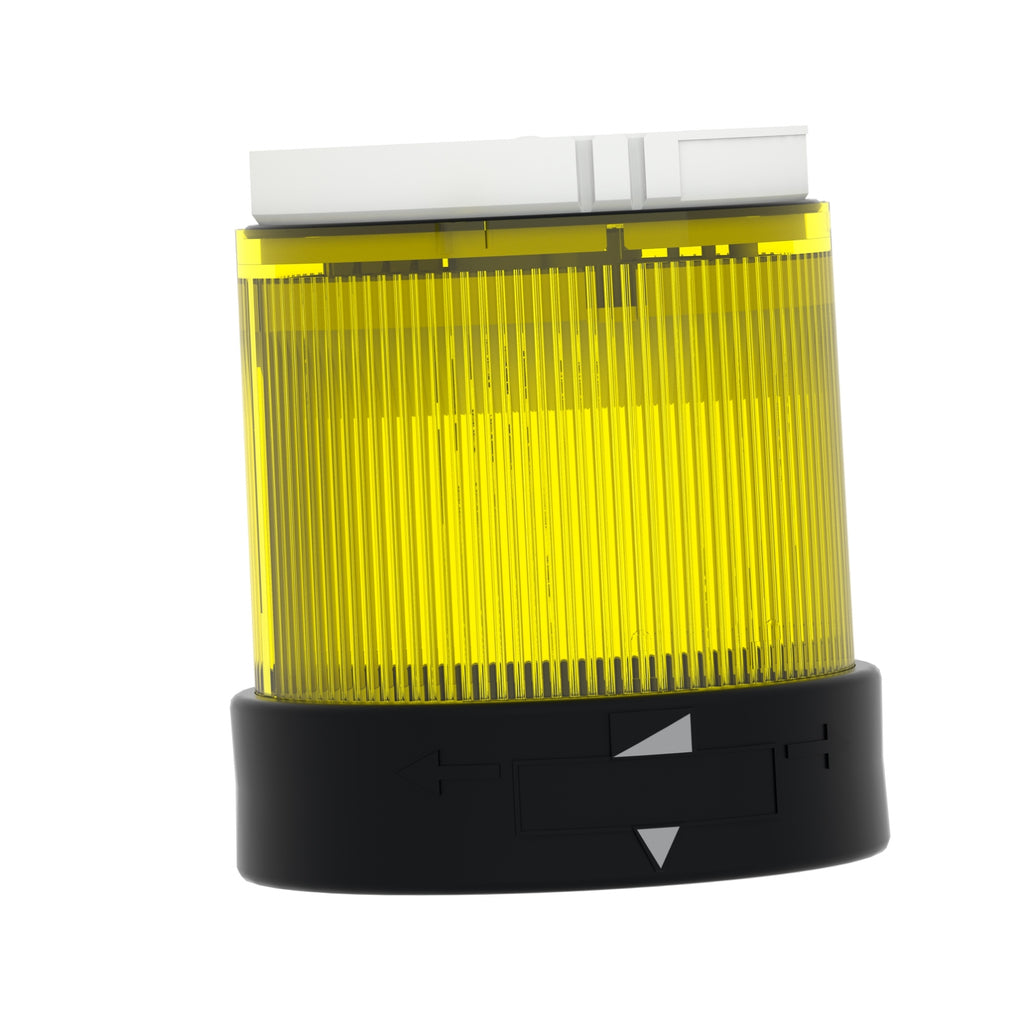

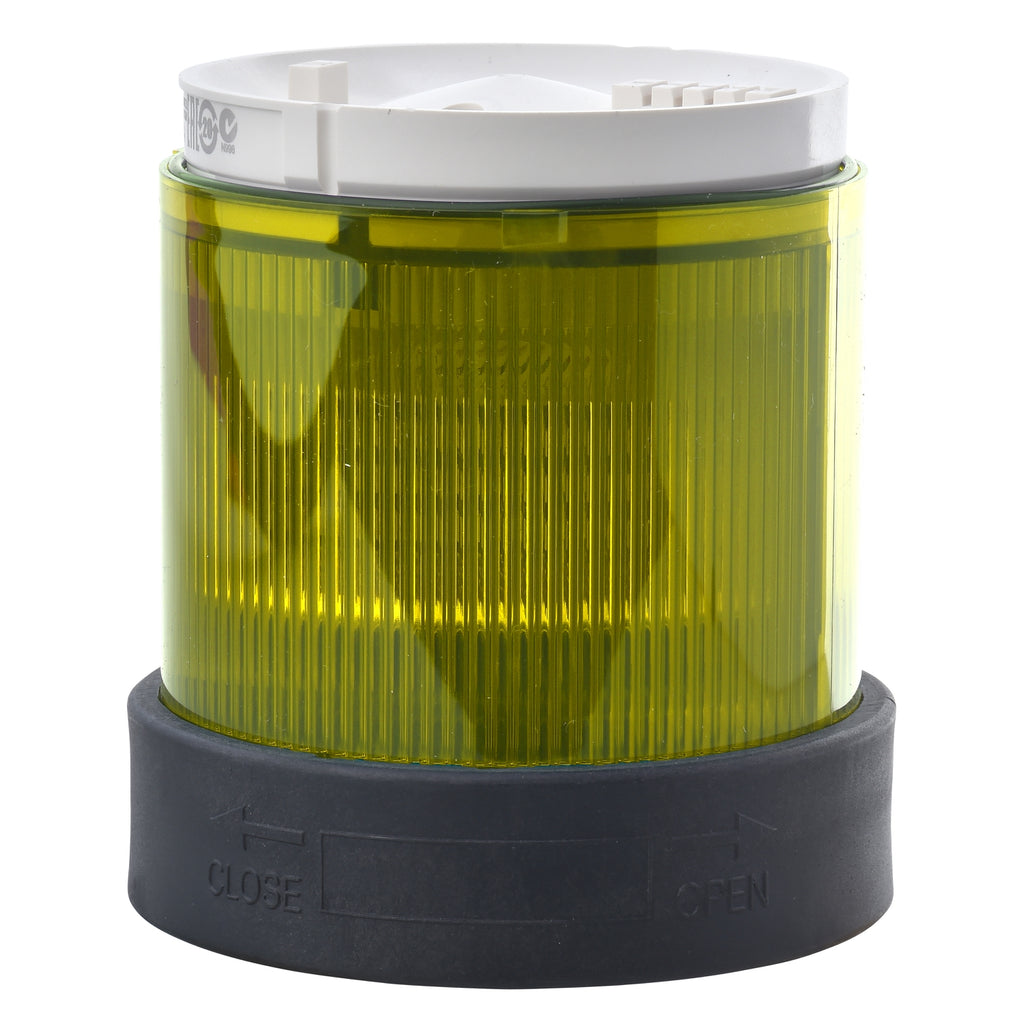

XVBC38 is a Square D Harmony XVB indicating bank lens designed for steady yellow illumination with a 70mm diameter.This indicator unit features a polycarbonate lens, suitable for panel mounting, and operates at 250 VAC with a 10 watt incandescent or LED lamp (not included). It offers NEMA 4X/12 degree of protection, ensuring durability in harsh environments. The unit supports screw clamp terminals for cable connections up to 1.5 mm² and meets IEC 60947-1 and IEC 60947-5-1 standards for rated insulation and nominal voltage limits. It is rated for 4 kV impulse withstand voltage and has an operating temperature range from -13 to 122 °F with LED lamps.
- Key Specifications
- Part Number: XVBC38
- Manufacturer: Square D
- Type: Harmony XVB Indicating Bank Lens
- Lens Diameter: 70 mm
- Color: Yellow
- Light Source: Incandescent BA 15d base or LED (lamp not included)
- Voltage: 250 VAC
- Power: 10 W
- Mounting: Panel mount
- Degree of Protection: NEMA 4X/12, IP65/IP66
- Terminal Type: Screw clamp, up to 1.5 mm² cable
- Standards: IEC 60947-1, IEC 60947-5-1
Specifications
- Part Number: XVBC38
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Voltage : 480
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 38911084511
- GTIN : 03389110845112
- Country of Origin : Indonesia
- Weight : 0.3 lb
