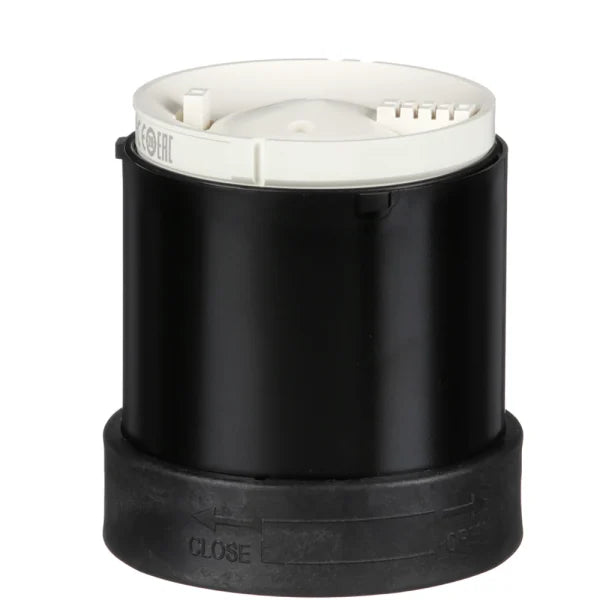

XVB-C9B - Schneider Electric 12-48 VAC/DC Audible Indicating Bank Buzzer 70mm 90 dB IP65 NEMA 4X

XVB-C9B

XVB-C9B is a Schneider Electric audible indicating bank buzzer designed for industrial signaling applications.This 70 mm diameter buzzer operates on 12 to 48 VAC/DC, delivering a sound level of 90 dB at 1 meter with continuous or intermittent signaling options.The XVB-C9B features screw clamp terminals, rated insulation voltage of 250 VAC per IEC 60947-1, and a rated impulse withstand voltage of 4 kV. It offers robust environmental protection with IP66 on the base unit and IP65 on the fixing base, conforming to IEC 60529 standards, and NEMA 4X indoor protection per UL 508. The unit is suitable for operation in ambient temperatures from -25 to 50 °C and storage from -40 to 70 °C. It is UL 508, CSA, and EN/IEC certified, ensuring compliance with industrial safety standards.

• Part Number: XVB-C9B
• Manufacturer: Schneider Electric
• Type: Audible Indicating Bank Buzzer
• Diameter: 70 mm
• Operating Voltage: 12 to 48 VAC/DC
• Sound Level: 90 dB at 1 meter
• Signaling Type: Continuous or intermittent buzzer
• Rated Insulation Voltage: 250 VAC (IEC 60947-1)
• Rated Impulse Withstand Voltage: 4 kV (IEC 60947-1)
• Terminals: Screw clamp
• Ingress Protection: IP66 base unit, IP65 fixing base (IEC 60529)
• NEMA Protection: NEMA 4X (indoor)
• Operating Temperature: -25 to 50 °C
• Certifications: UL 508, CSA, EN/IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XVB-C9B
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Bell Alarm
• Type : Bell Arm

Product Data

• UPC : 38911084596
• GTIN : 03389110845969
• Dimensions : 2.8" X 2.5" X 2.8"
• Weight : 0.5 lb
