XUB0APSNM12 - Schneider Electric Photoelectric Sensor 12-24VDC PNP 3-Wire Cylindrical M18 Multimode

XUB0APSNM12

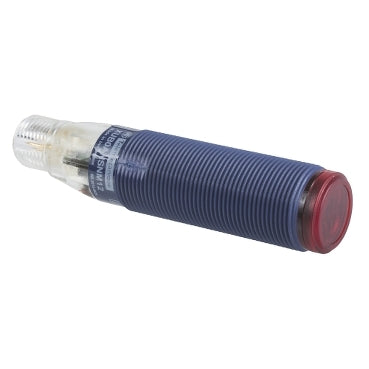

XUB0APSNM12 is a Schneider Electric photoelectric sensor designed for general purpose multimode detection with a cylindrical M18 design.This sensor operates on 12 to 24 VDC with a PNP discrete output and 3-wire wiring. It features a multimode detection system including infrared diffuse, diffuse with background suppression, thru-beam, and red polarized reflex emissions. The sensor has a nominal sensing distance up to 20 meters (thru-beam) and includes a 1 NO or 1 NC programmable output function. It is constructed with a durable PBT enclosure and PMMA lens, supports a switching frequency up to 250 Hz, and includes overload and short-circuit protection with a maximum switching current of 100 mA. The sensor uses a 4-pin M12 male connector for electrical connection.

Key Specifications
• Range of product: OsiSense XU
• Sensor design: Cylindrical M18
• Supply voltage: 12 to 24 VDC
• Output type: PNP discrete, 3-wire
• Nominal sensing distance: 0.12 m diffuse with background suppression, 0.3 m diffuse, 3 m polarized reflex, 20 m thru-beam
• Switching current: ≤ 100 mA
• Switching frequency: ≤ 250 Hz
• Enclosure material: PBT
• Lens material: PMMA
• Electrical connection: 1 male M12 connector, 4 pins
• Output function: 1 NO or 1 NC programmable
• Detection system: Multimode (infrared diffuse, diffuse with background suppression, thru-beam, red polarized reflex)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XUB0APSNM12
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Automation
• Item Subcategory : Sensor
• Section : Photoelectric

Product Data

• UPC : 038911014834
• GTIN : 00389110148346
• Weight : 0.02
