Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description

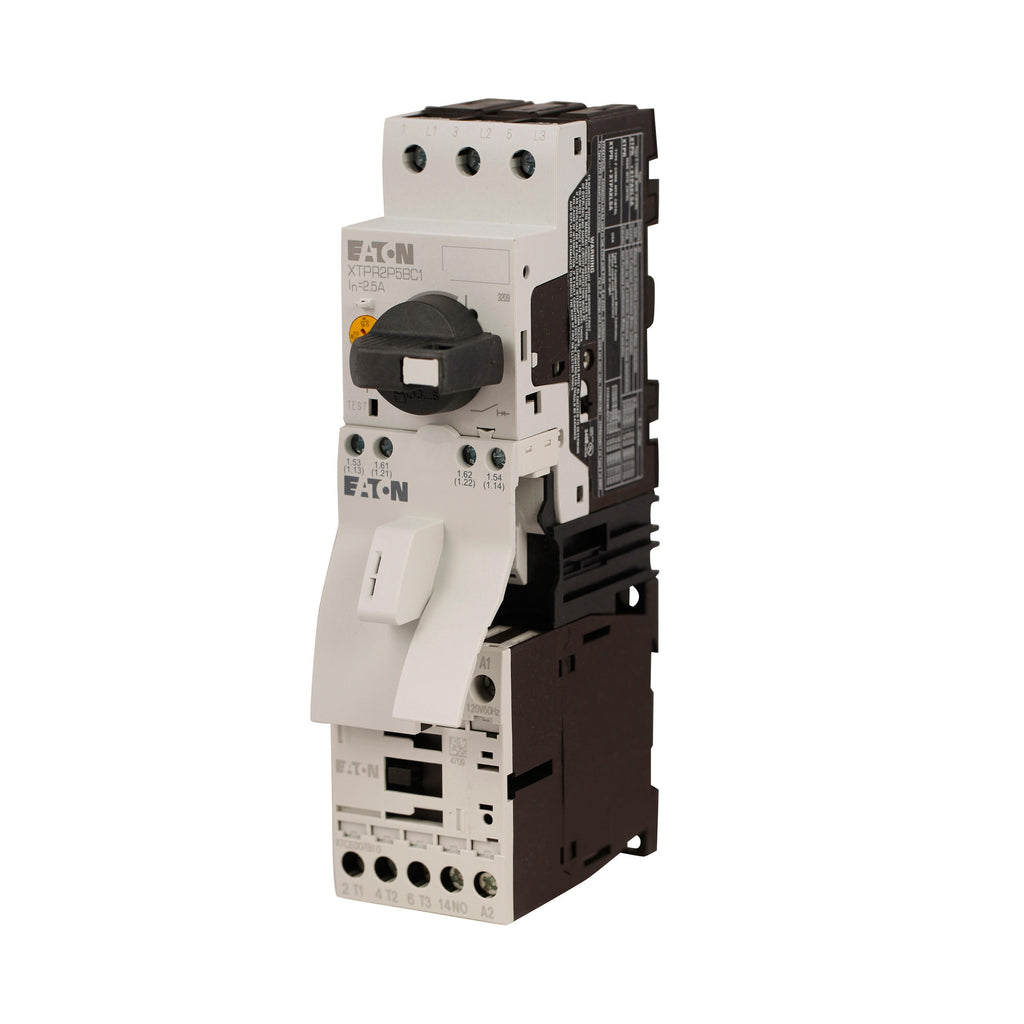

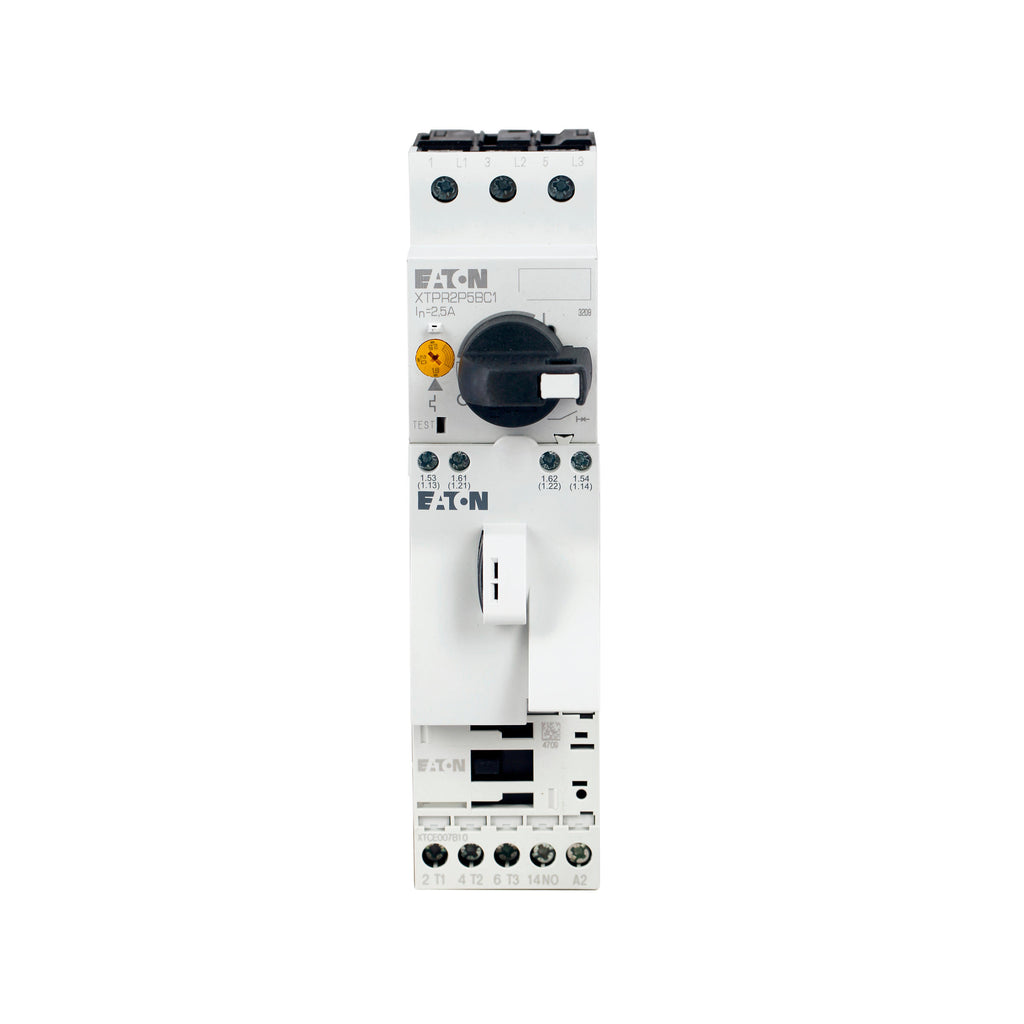

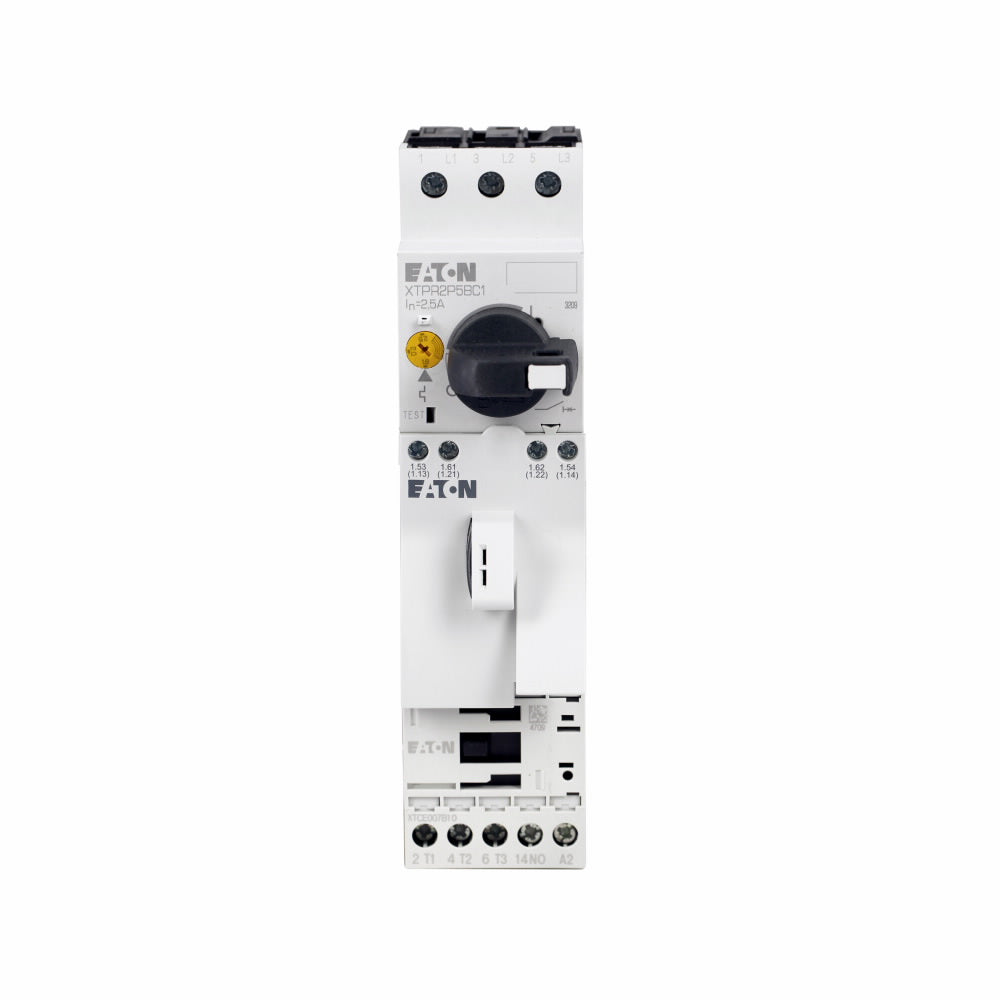

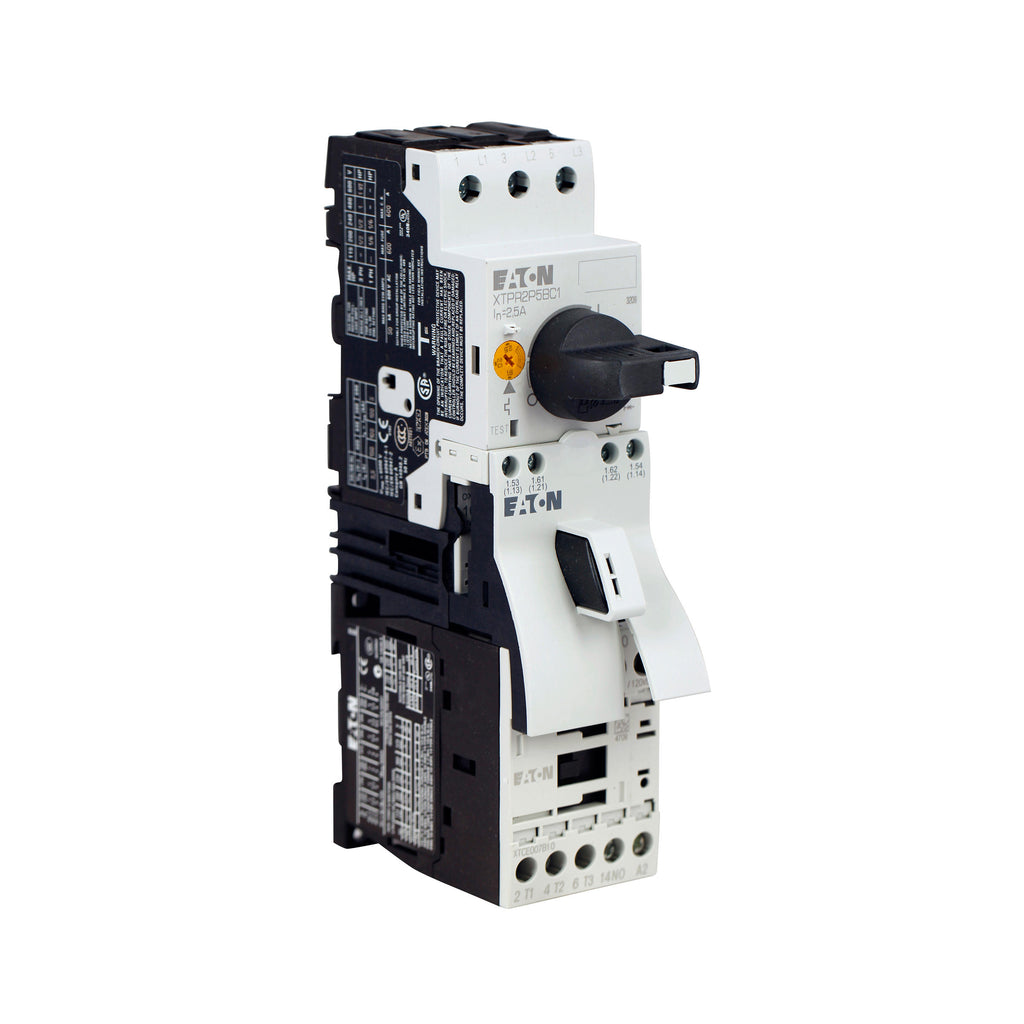

XTSC2P5BBT
XTSC2P5BBT is a three-phase combination motor starter and controller designed for reliable motor protection and control in industrial applications. This manual motor controller features an adjustable amperage range and 24 volt AC coil voltage for flexible motor circuit protection. XTSC2P5BBT combines a thermal overload relay with a 7 AMP contactor, providing integrated motor starting and protection in a compact assembly. The unit is rated for 1 HP at 460V three-phase and includes an adjustment dial for setting motor full load amperage. Non-reversing design ensures safe, unidirectional motor operation.
- Amperage Range: 1.6 to 2.5 AMPS
- Coil Voltage: 24 VAC
- Contactor Rating: 7 AMPS
- Short Circuit Rating: 35 AMPS
- Motor Rating: 1 HP at 460V 3-Phase
- Configuration: Non-Reversing
- Frequency: 50 Hz
- Weight: 3.00 lbs
- Adjustment Dial: Motor FLA Setting
- Contacts: 1NO-1NC
Additional Information
Non-Reversing
Specifications
- Part Number: XTSC2P5BBT
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : XT Series
- Type : XTSC
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24 VAC
- Coil Voltage Minimum : 24
- Frequency : 50 Hz
Product Data
- UPC : 782116603794
- GTIN : 00782116603794
- Country of Origin : Germany
- Dimensions : 3.77 in x 7.03 in x 1.77 in (Length/Depth x Height x Width)
- Weight : 0.001 lb
