Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
XTSC004BBT

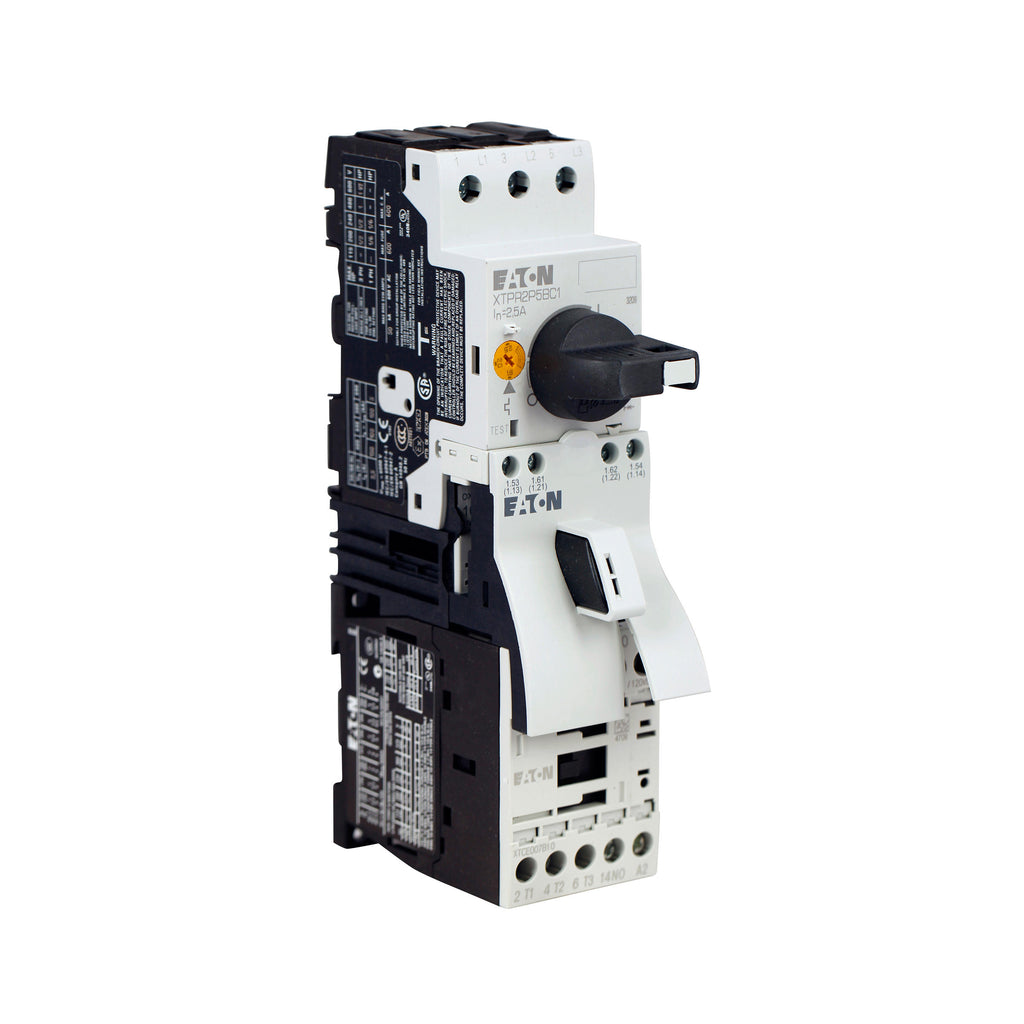

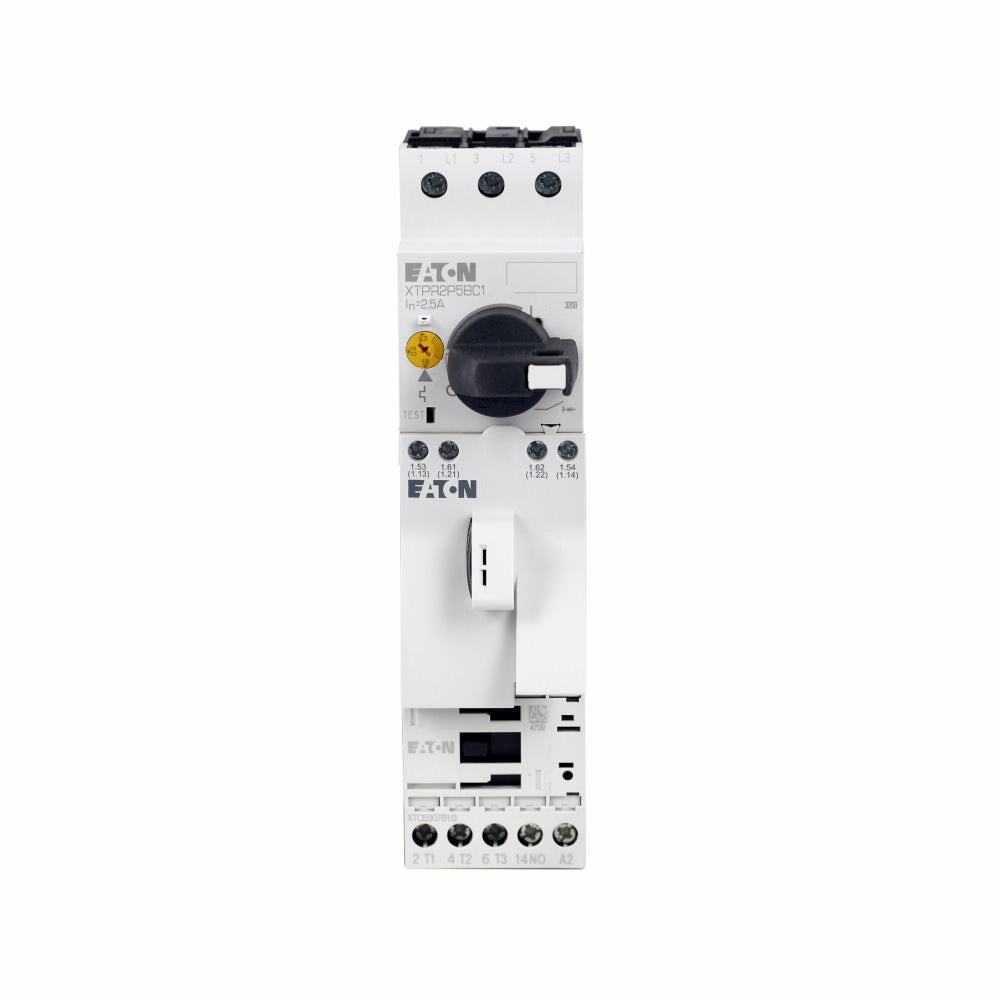

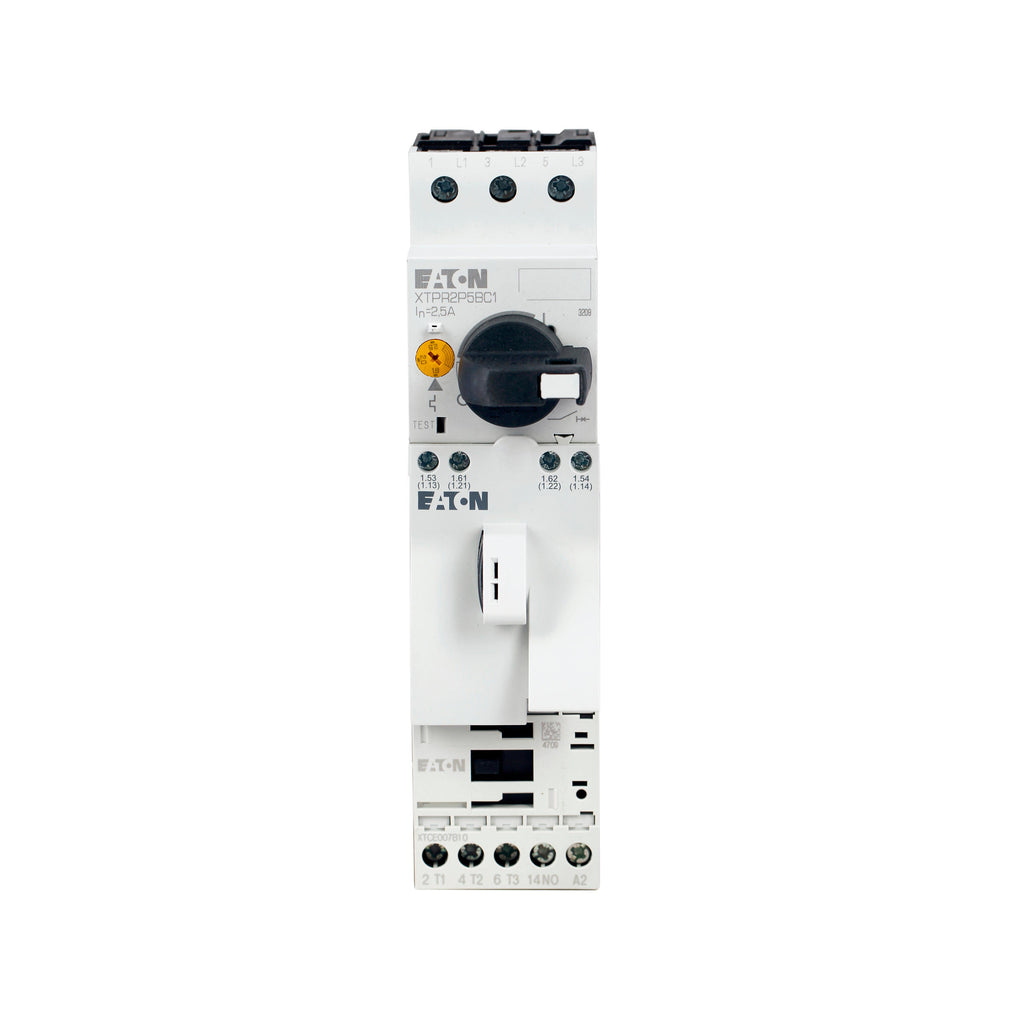

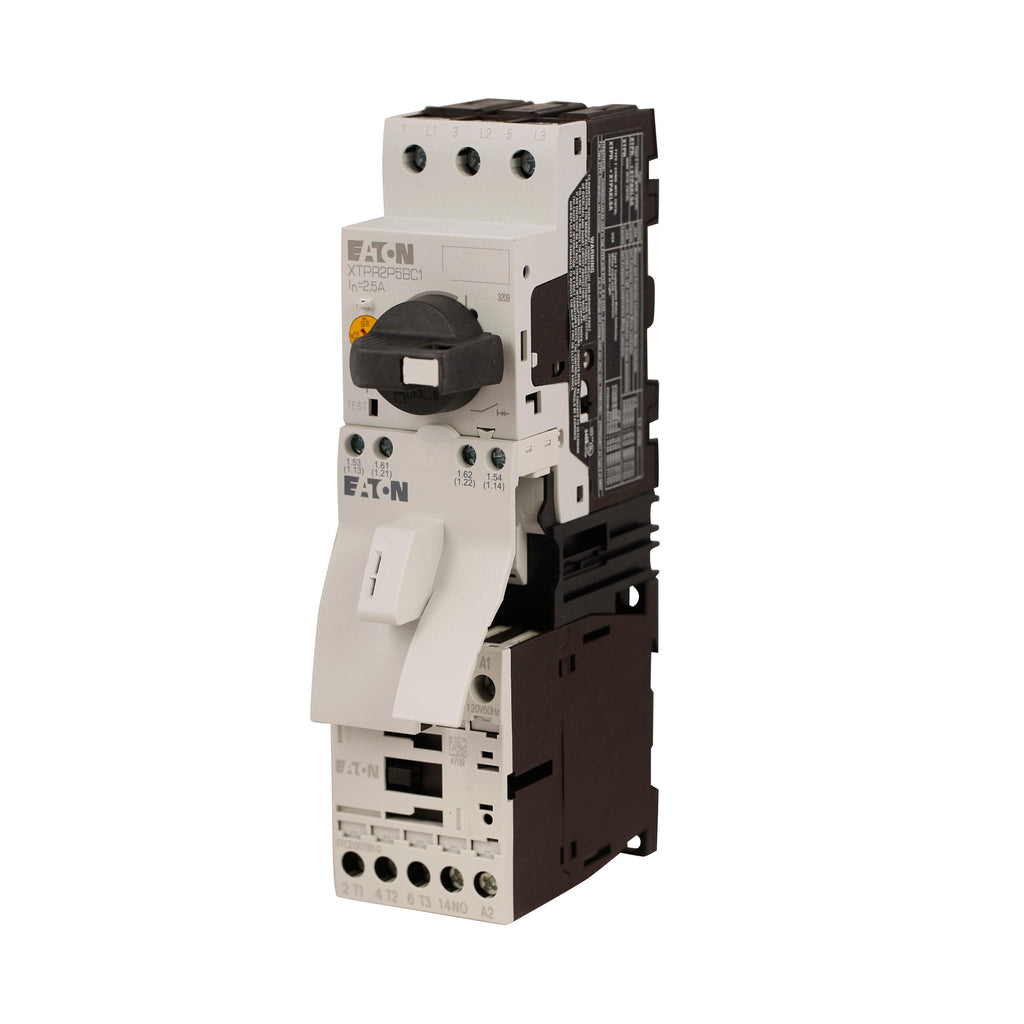

XTSC004BBT is a non-reversing manual motor controller designed for three-phase motor applications, featuring an adjustable current range and a 24V AC coil for reliable operation. This Cutler Hammer XT Series controller provides manual start/stop control for motors up to 2.5-4 amps and is suitable for use in industrial environments requiring dependable motor protection and control. The unit includes an adjustment dial for setting motor full load amps and offers a compact frame for easy installation.
- Part Number: XTSC004BBT
- Manufacturer: Cutler Hammer
- Series: XT Series
- Controller Type: Non-Reversing Manual Motor Controller
- Phase: 3 Phase
- Poles: 3 Pole
- Adjustable Amperage Range: 2.5 to 4 Amps
- Coil Voltage: 24V AC
- Short Circuit Rating: 56 Amps
- Motor Rating: 2 HP at 460V 3 Phase
- Frame Size: 45 mm
- Mounting Type: Panel Mount
Additional Information
Non-Reversing
Specifications
- Part Number: XTSC004BBT
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : XT Series
- Type : XTSC
- Voltage : 600
- Amperage : 2.5
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24 VAC
- Coil Voltage Minimum : 24
- Frequency : 50 Hz
Product Data
- UPC : 782116602742
- GTIN : 00782116602742
- Country of Origin : Germany
- Dimensions : 3.77 in x 7.03 in x 1.77 in (Length/Depth x Height x Width)
- Weight : 0.001 lb
