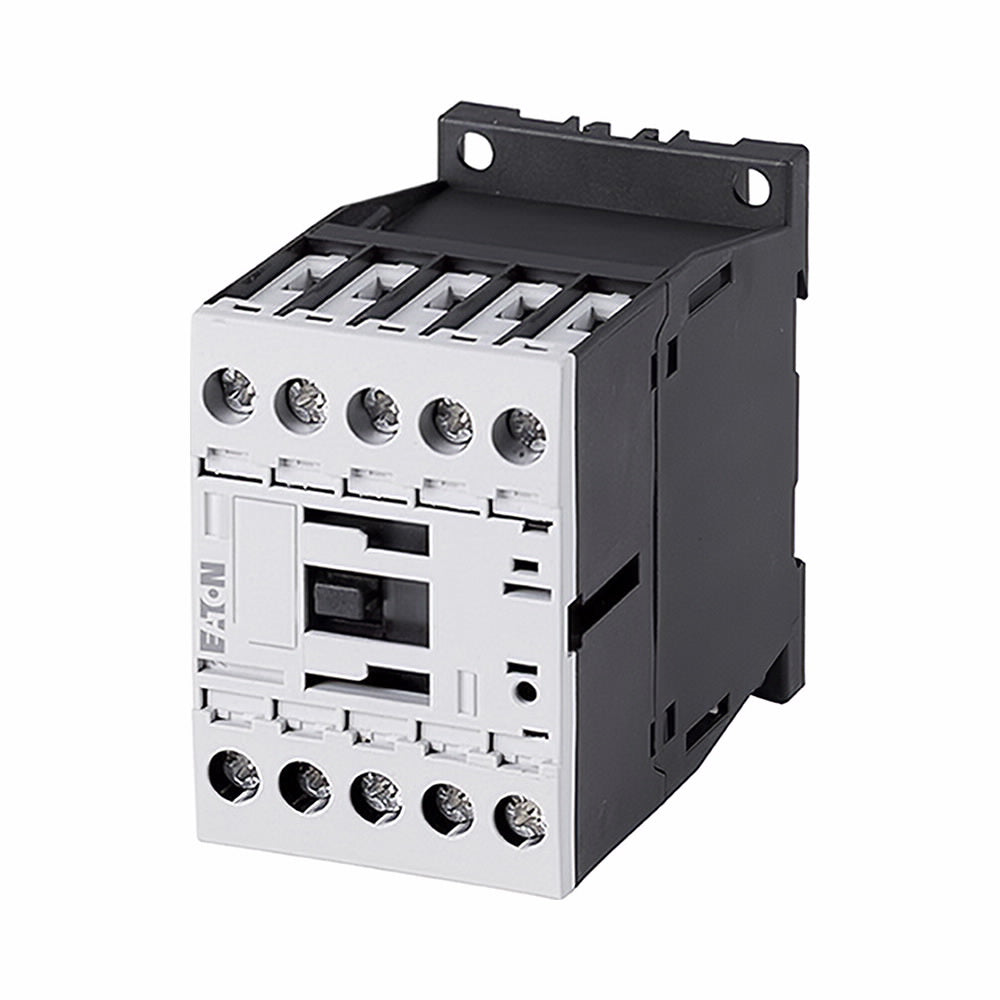

XTRM10A40TD - Eaton 10 Amp 24 VDC 4-Pole Miniature Control Relay with Screw Terminals

XTRM10A40TD

XTRM10A40TD is a 10 Amp, 24 VDC coil, 4-pole miniature control relay from Eaton designed for reliable motor control applications.This Eaton XT IEC miniature control relay features a 45 mm mini frame size with four normally open (4 NO) contacts and screw terminals for secure wiring. It supports mounting on a standard 35 mm DIN rail or base mounting. Rated for 10A conventional thermal current, it is UL listed and meets IEC EN 60947 standards, making it suitable for global industrial use. The relay can be expanded with auxiliary contacts for up to 8 poles, and it operates within a wide ambient temperature range.

Key Specifications
• Amperage: 10 Amp conventional thermal rating
• Coil Voltage: 24 VDC
• Contact Configuration: 4 Normally Open (4 NO)
• Frame Size: 45 mm mini frame
• Mounting Type: DIN rail or base mount
• Terminals: Screw type
• Interrupt Rating: 6A at 220-240V, 3A at 380-415V operational voltage
• Certifications: UL Listed, CE, CSA, IEC EN 60947 compliant
• Auxiliary Contacts: Optional 2 and 4-pole auxiliaries available
• Ambient Temperature Range: -25°C to 50°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTRM10A40TD
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Contactor

Product Data

• UPC : 01508010223
• GTIN : 04015080102236
• Country of Origin : Germany
• Dimensions : 2.5 in x 2 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : UL Listed
