Product Info
- Manufacturer:Eaton
Description
XTRM10A22A

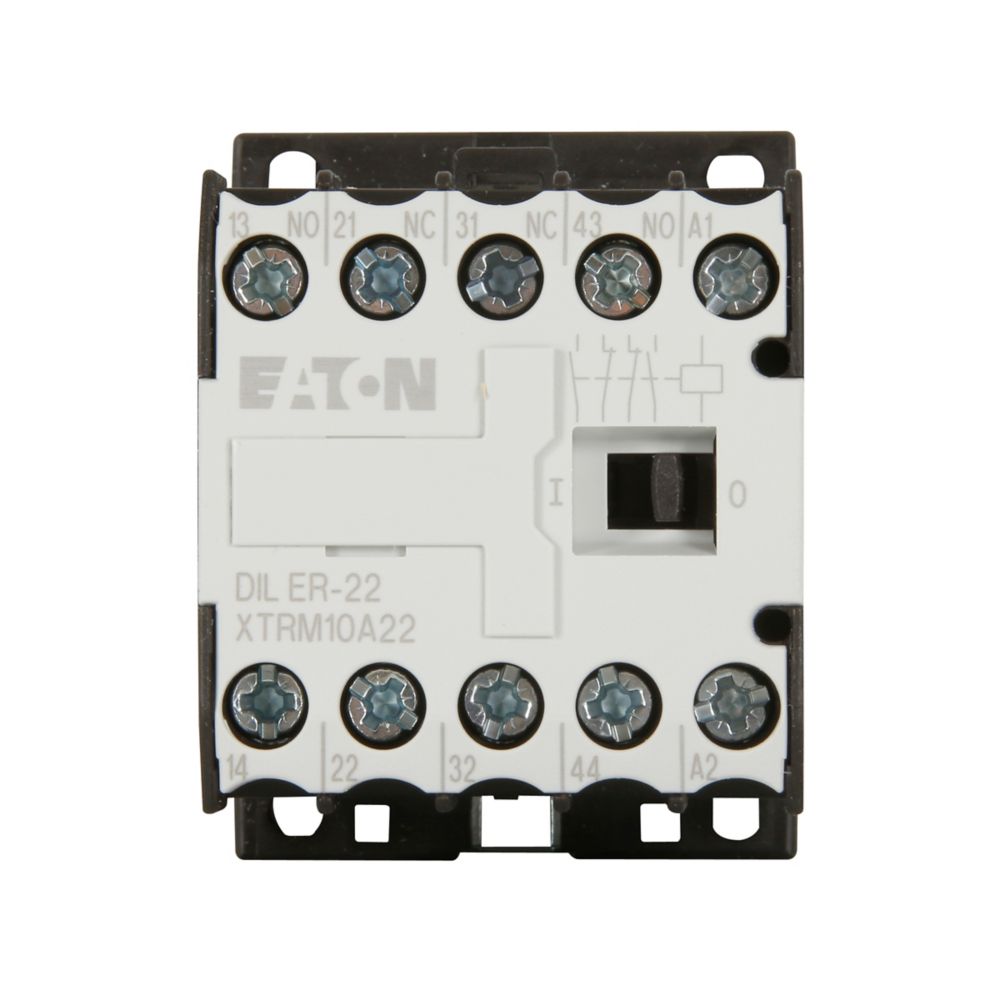

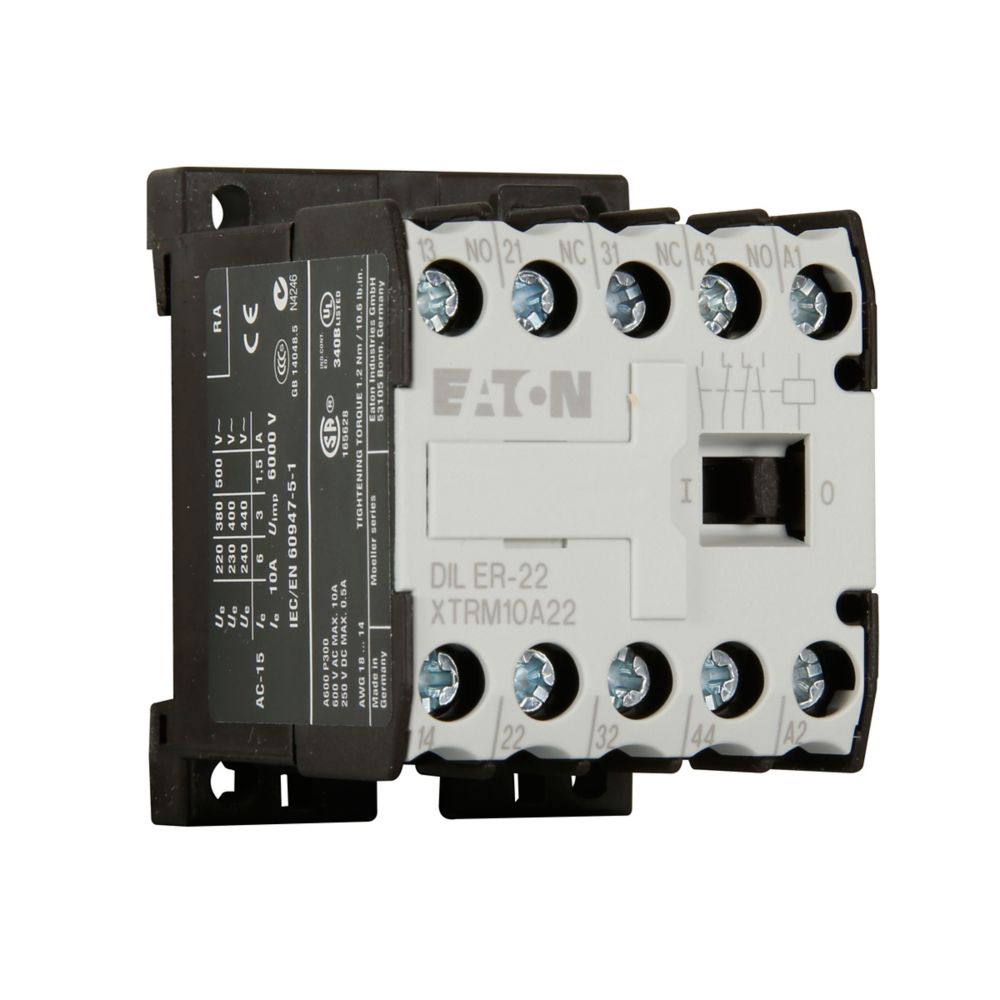

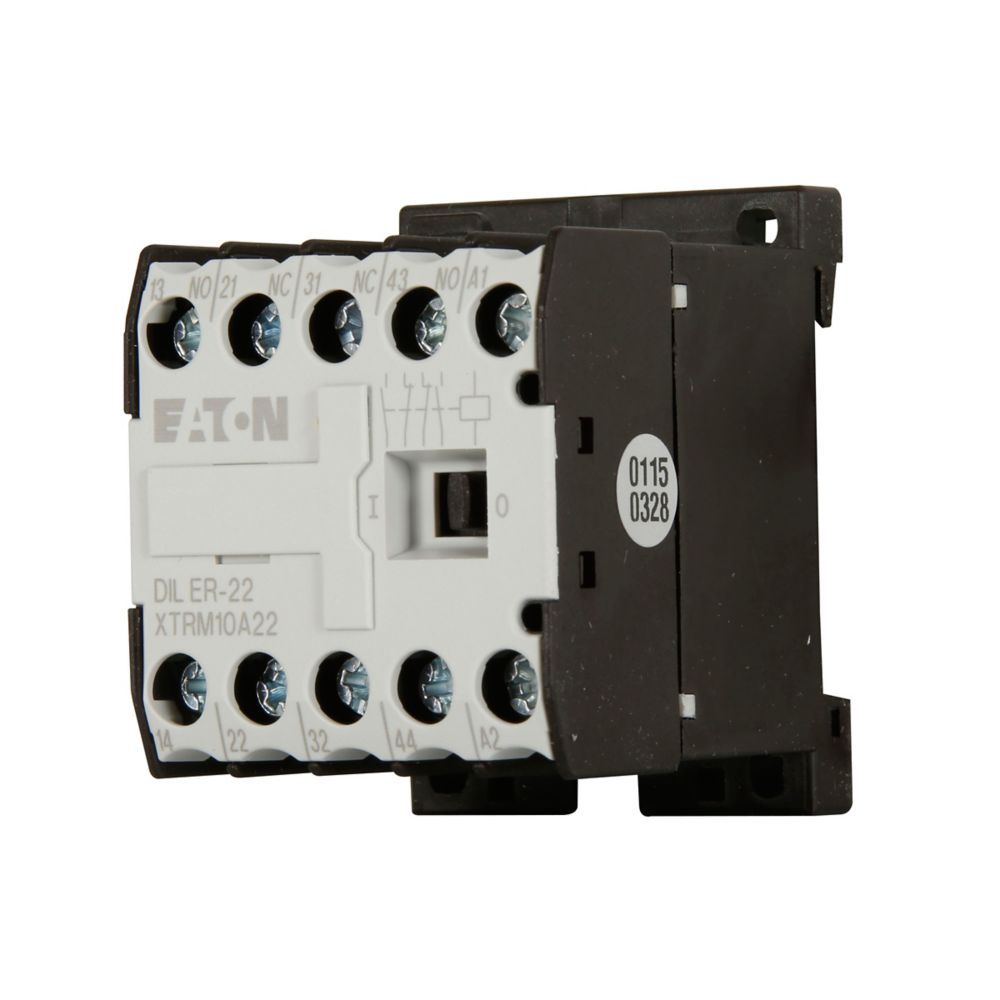

XTRM10A22A is a 4 pole miniature control relay from Eaton, designed for reliable switching in industrial control applications. This relay features a 110V 50Hz / 120V 60Hz AC coil, screw terminals for secure connections, and a compact 45 mm frame for easy DIN rail mounting. It offers a 2NO/2NC contact configuration and is suitable for a wide range of control circuits. The XTRM10A22A relay is built to meet international standards and provides dependable performance in demanding environments. Its compact design allows for space-saving installations, while the screw terminal termination ensures quick and secure wiring. The relay is compatible with standard DIN rails and can be back panel mounted as needed.
- Part Number: XTRM10A22A
- Manufacturer: Eaton
- Series/Frame: XT IEC Miniature, 45 mm
- Poles: 4
- Amperage: 10 A
- Coil Voltage: 110V 50Hz / 120V 60Hz AC
- Contact Configuration: 2NO/2NC
- Mounting Type: DIN Rail or Back Panel
- Terminal Type: Screw
- Interrupt Rating: 600V AC
- Certifications: UL, CSA, CE, CCC, ATEX
- Standards: IEC EN 60947
Specifications
- Part Number: XTRM10A22A
- Manufacturer : Eaton
- Brand : Eaton
Product Data
- UPC : 786685353593
- Country of Origin : Germany
- Dimensions : 2.5 in x 2 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 0.3 lb
- Certification : UL Listed
