Product Info
- Manufacturer:Eaton
Description
XTRE10B40A

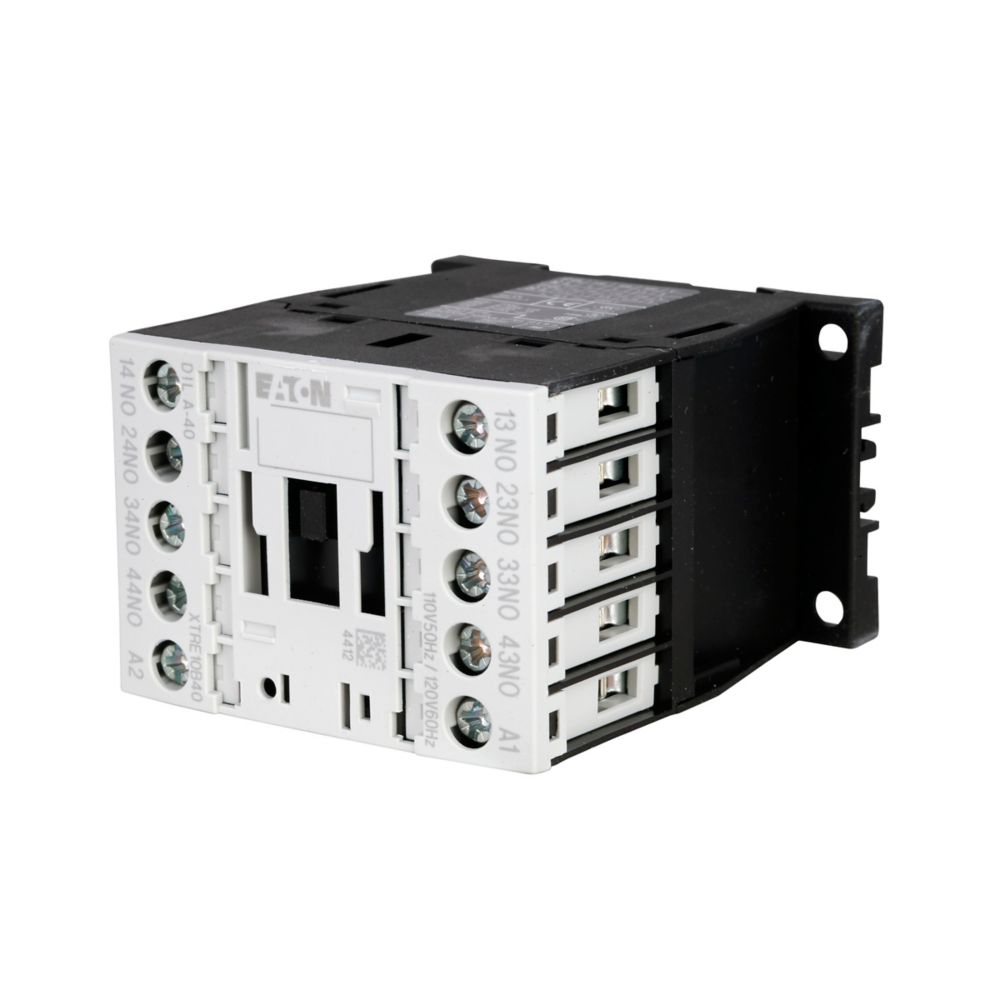

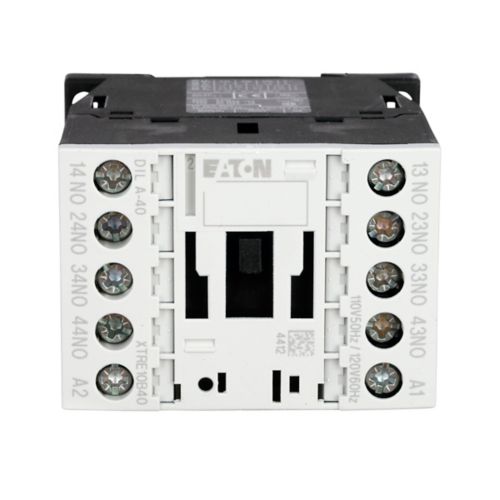

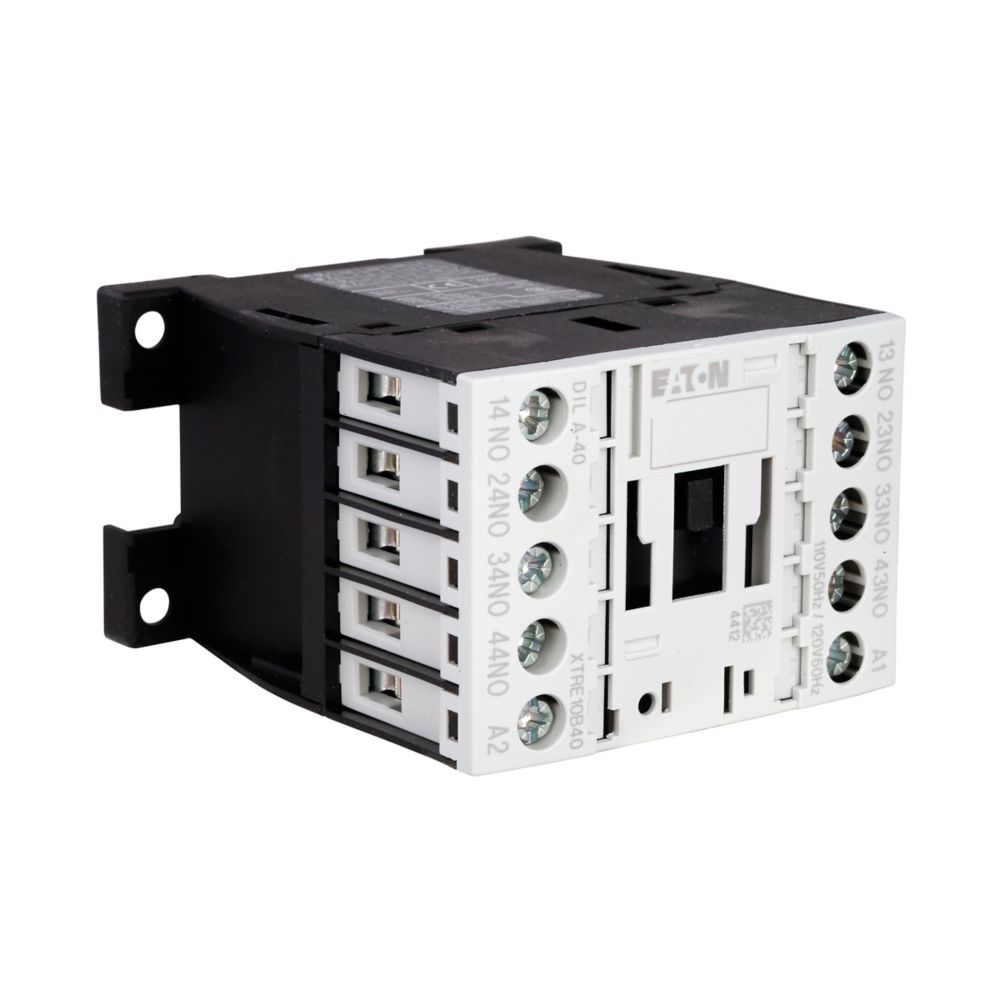

XTRE10B40A is a 10 amp control relay from Eaton featuring a 4 normally open (4NO) contact configuration and a 110-120V 50/60Hz coil.This Eaton XT IEC control relay has a 45mm standard frame size with screw terminals for secure mounting. It supports a 10A thermal rating, with current ratings of 4A at 380/400/415V and 6A at 220/230/240V. The relay is designed for industrial control applications requiring reliable switching.
- Coil Voltage: 110V 50Hz / 120V 60Hz AC
- Contact Configuration: 4 Normally Open (4NO)
- Thermal Current Rating: 10A
- Current Ratings: 4A at 380-415V, 6A at 220-240V
- Frame Size: 45mm standard
- Mounting Type: Screw terminals
- Series: Eaton XT IEC Control Relay
- Application: Industrial control
Specifications
- Part Number: XTRE10B40A
- Manufacturer : Eaton
- Brand : Eaton
Product Data
- UPC : 786685364629
- Country of Origin : Romania
- Dimensions : 4 in x 2 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 0.5 lb
- Certification : UL Listed
