XTPR016BC1NL

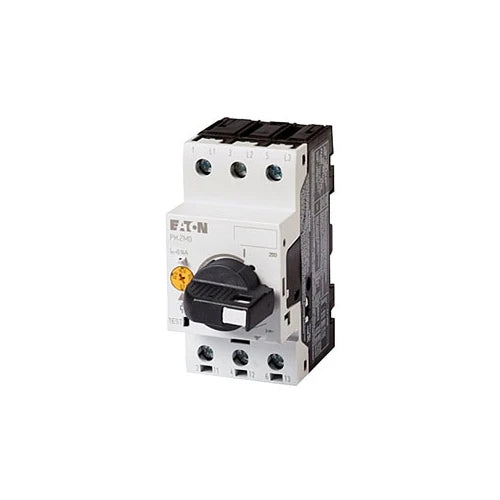

XTPR016BC1NL is a 16 amp, 690 volt, 3-pole thermal-magnetic motor protector from Eaton designed for motor overload and short circuit protection.This Eaton XTPR016BC1NL motor protector features adjustable overload settings from 10 to 16 amps, Class 10 trip rating, and mounts on a standard 35mm DIN rail. It provides phase loss sensitivity, visible trip indication, and includes a rotary ON/OFF handle with lockout provision. Certified to UL 508 and CSA C22.2 standards, it offers IP20 degree of protection and a rated impulse withstand voltage of 6000 Vac.
- Key Specifications
- Amperage: Adjustable 10-16 A
- Voltage: Rated operational voltage 690 Vac
- Poles: 3-pole configuration
- Mounting Type: Standard 35mm DIN rail
- Interrupt Rating: Fixed short-circuit trip at 14x overload setting
- Series/Frame: XTPR Series, 45 mm size
- Trip Unit: Thermal-magnetic with Class 10 overload protection
- Certifications: UL 508, CSA Std. C22.2
- Degree of Protection: IP20
- Rated impulse withstand voltage: 6000 Vac
- Phase loss sensitivity and ambient temperature compensation
- Mechanical and electrical lifespan: 100,000 operations
Specifications
- Part Number: XTPR016BC1NL
