Product Info
- Manufacturer:Eaton
- Sub-Category:Motor Control Part And Accessory
Description
XTPB2P5BC1

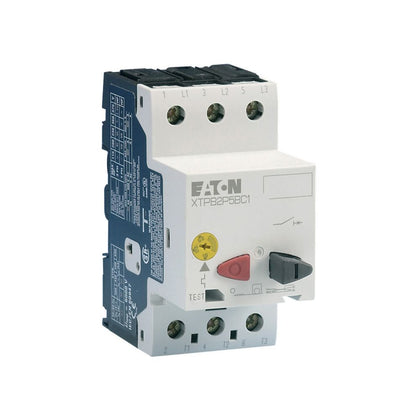

XTPB2P5BC1 is a 3-pole manual motor protector from Eaton's XT Series, designed for reliable motor protection and control in industrial applications. This Eaton B-Frame manual motor protector features a 2.5A adjustable overload range, Class 10 trip characteristic, and rotary ON/OFF handle for manual operation. It is suitable for use in motor circuits up to 690VAC and provides thermal-magnetic protection with ambient temperature compensation. The unit mounts easily on standard 35mm DIN rail and is ideal for both single and three-phase motor applications.
- Part Number: XTPB2P5BC1
- Manufacturer: Eaton
- Series/Frame: XT Series, B-Frame (45 mm)
- Amperage Rating: 2.5A (adjustable 1.6–2.5A)
- Number of Poles: 3
- Mounting Type: DIN Rail
- Voltage Rating: 690VAC
- Interrupt Rating: 100 kA
- Trip Unit: Class 10, Bimetallic Thermal Overload
- Handle Type: Rotary ON/OFF with lockout
- Certifications: UL Listed, CSA Certified
- Frequency: 40–60 Hz
Specifications
- Part Number: XTPB2P5BC1
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Voltage : 2
Product Data
- UPC : 4015082784812
- GTIN : 04015082784812
- Country of Origin : Germany
- Dimensions : 4 in x 2 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 0.5 lb
- Certification : ATEX Compliant, CE, CSA, UL 508 Group Motor Type E Compliant, UL Listed
