XTOE100DCS - Cutler Hammer 20-100A Electronic Overload Relay, 55mm Frame, Direct Mount, Selectable Trip Class

XTOE100DCS

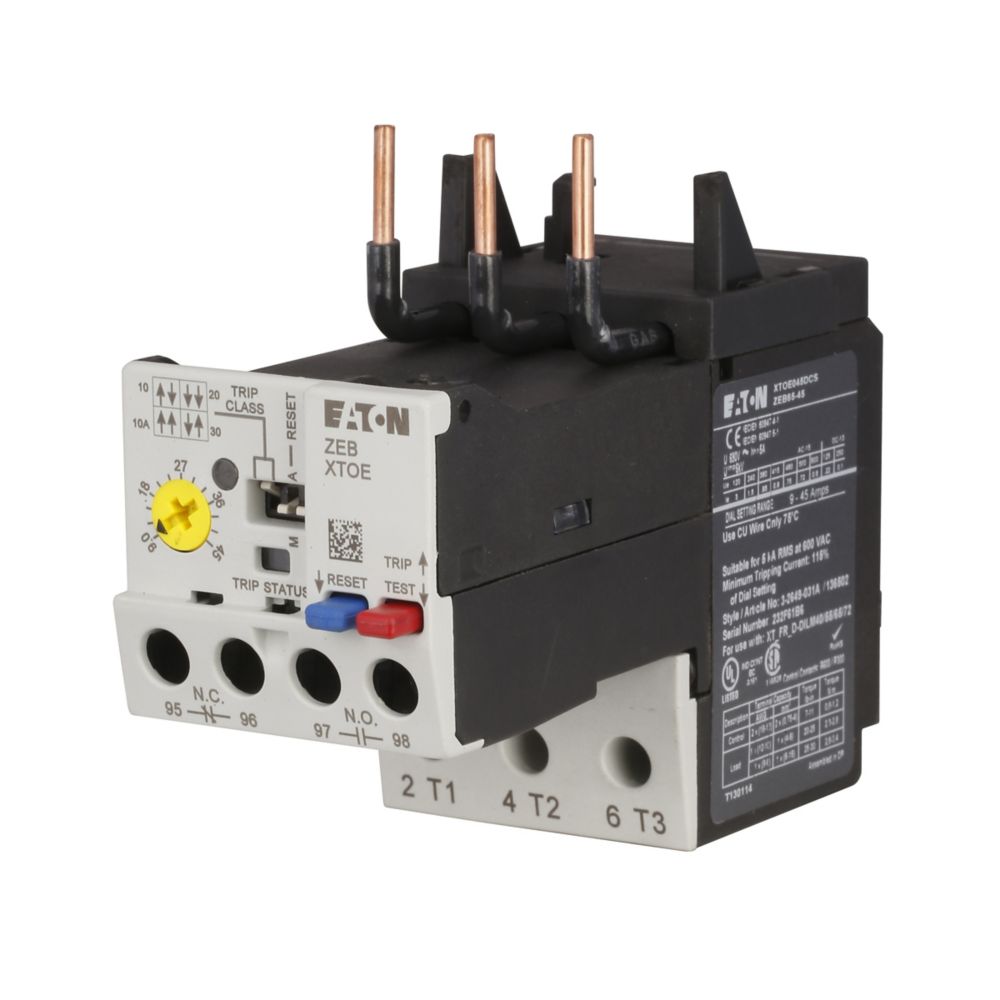

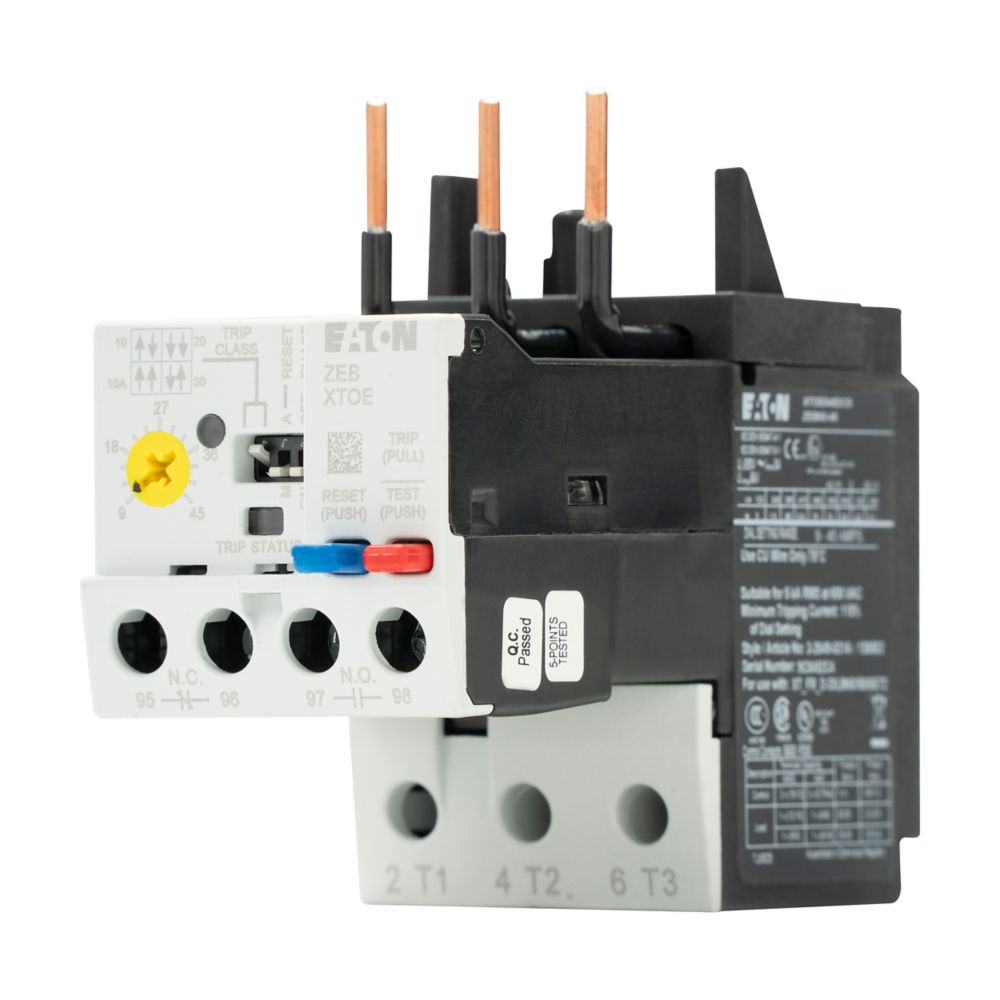

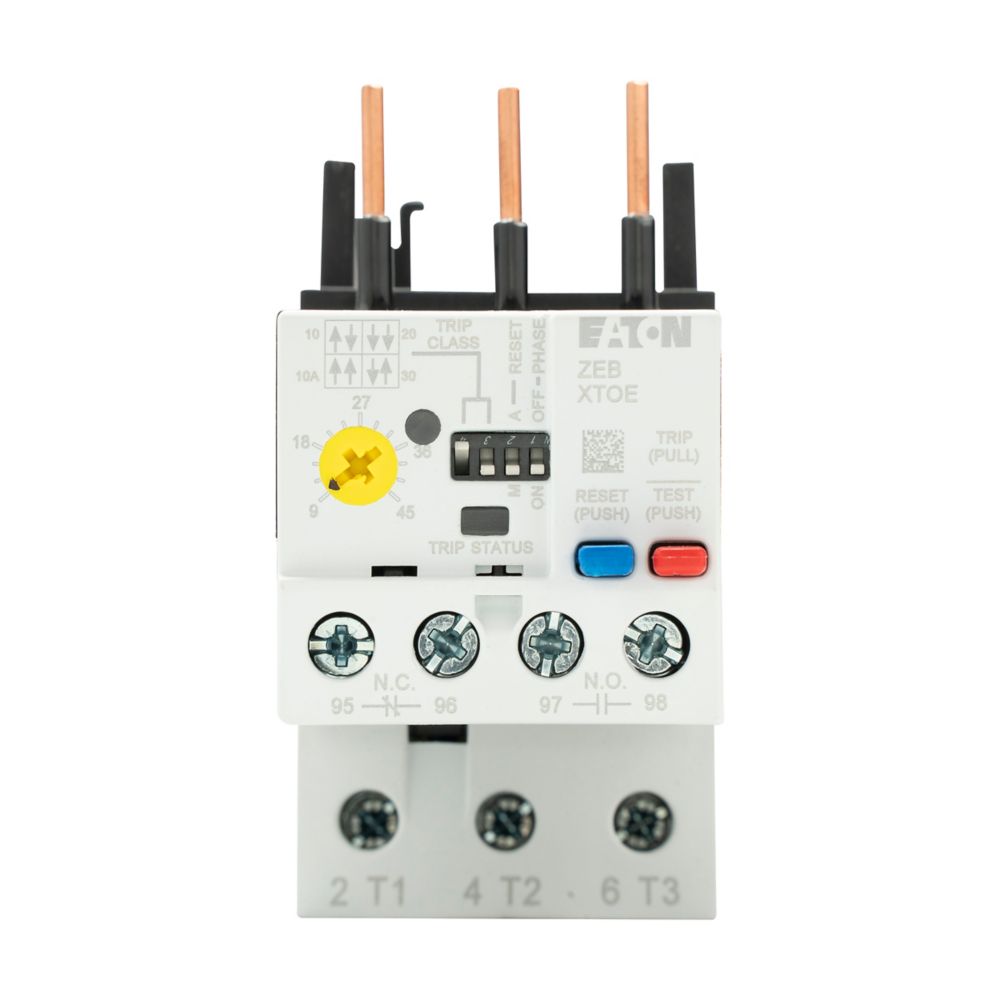

XTOE100DCS is a Cutler Hammer electronic overload relay designed for motor control applications with an adjustable overload range of 20-100 amps.This relay features a 55 mm frame size and mounts directly to XTCE contactors. It includes selectable trip classes (10A, 10, 20, 30) for flexible motor protection, and has one normally open (NO) and one normally closed (NC) auxiliary contact. The device is CE marked, RoHS compliant, ATEX certified, CSA certified, UL listed, and meets IEC 60947 and EN 60947 standards.

Key Specifications
• Overload Range: 20-100 Amps
• Frame Size: 55 mm
• Mounting Type: Direct to Contactor
• Contact Configuration: 1 NO, 1 NC
• Trip Class: Selectable 10A, 10, 20, 30
• Phase Loss Sensitivity: Yes
• Certifications: CE, RoHS, ATEX, CSA, UL, IEC 60947, EN 60947
• Product Weight: 0.87 lb
• Dimensions: Height 4.3 in, Width 1.42 in, Depth 1.8 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOE100DCS
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 786685416557
• GTIN : 00786685416557
• Country of Origin : Dominican Republic
• Dimensions : 1.8 in x 4.3 in x 1.42 in (Length/Depth x Height x Width)
• Weight : 0.87 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
