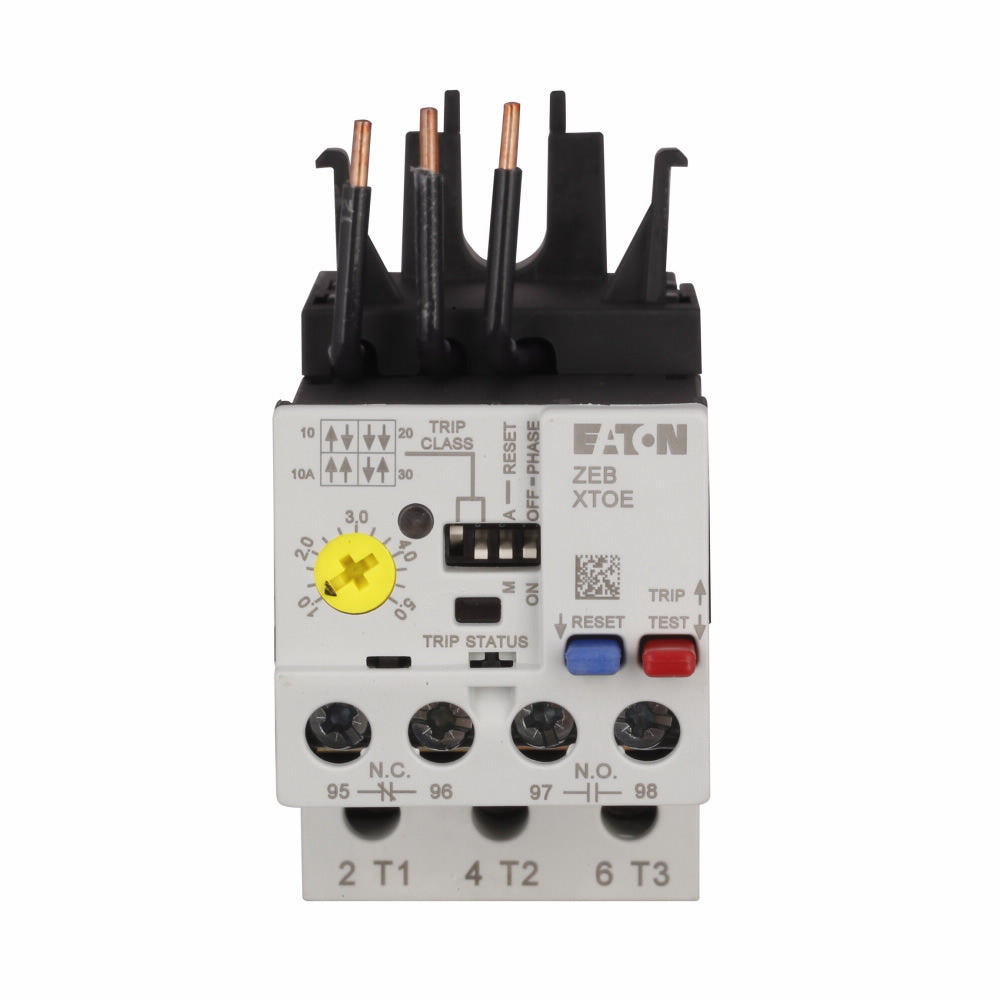

XTOE005BCS - Cutler Hammer 1-5A Electronic Overload Relay, 45mm Frame, IEC, Direct Mount

XTOE005BCS

XTOE005BCS is a Cutler Hammer electronic overload relay designed for motor control applications with a 1-5 amp adjustable overload range and 45 mm frame size.XTOE005BCS features selectable trip settings, NO-NC contact configuration, and direct mounting to frame B contactors. It provides phase loss protection and complies with IEC standards, making it suitable for global power control needs.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Overload Range: 1-5 Amps adjustable
• Frame Size: 45 mm
• Trip Type: Selectable electronic trip (10A, 10, 20, 30 settings)
• Contact Configuration: Normally Open - Normally Closed (NO-NC)
• Mounting Type: Direct to contactor (Frame B)
• Standards: IEC compliant
• Phase Loss Protection: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOE005BCS
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOE
• Relay Style : Solid State
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 5
• Amperage Minimum : 1

Product Data

• UPC : 786685416403
• GTIN : 00786685416403
• Country of Origin : Dominican Republic
• Dimensions : 1.77 in x 4.33 in x 1.42 in (Length/Depth x Height x Width)
• Weight : 0.87
• Certification : ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
