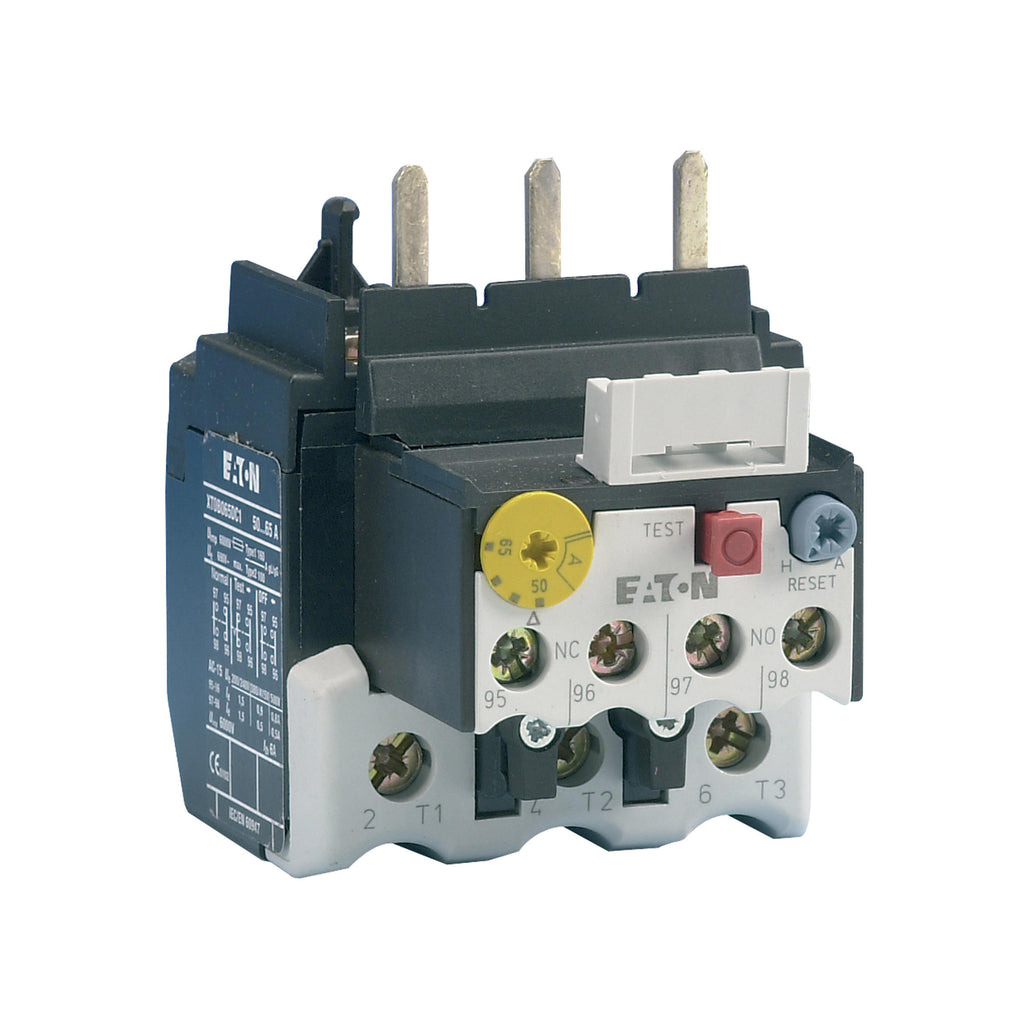

XTOB065DC1 - Cutler Hammer 50-65A 690V 1NO-1NC 55mm Frame IEC Bimetallic Overload Relay Direct Mount

XTOB065DC1

XTOB065DC1 is a Cutler Hammer IEC bimetallic overload relay designed for motor and power control applications with a 50-65 amp overload range.This thermal overload relay features a 55 mm frame size, 1NO-1NC contact configuration, and direct mounting type, suitable for use with 65-72A contactors.

• Overload range: 50-65 Amps
• Voltage rating: up to 690 VAC
• Frame size: 55 mm
• Contact configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
• Mounting type: Direct mount
• Trip type: 10 A
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant, ATEX Compliant
• Complies with IEC 60947 and EN 60947 standards
• Weight: approximately 0.6 lb
• Designed for protection of EEx e-motors with EC prototype test certificate available

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOB065DC1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Temp Rating : -13–158 °F (-25–70 °C)
• Relay Style : Thermal
• Amperage Maximum : 65
• Amperage Minimum : 50

Product Data

• UPC : 015082784607
• GTIN : 04015082784607
• Dimensions : 2.36 in x 3.58 in x 3.27 in (Length/Depth x Height x Width)
• Weight : 0.6 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, ATEX, UL, CSA, IEC, EN
