Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description
XTOB050GC1

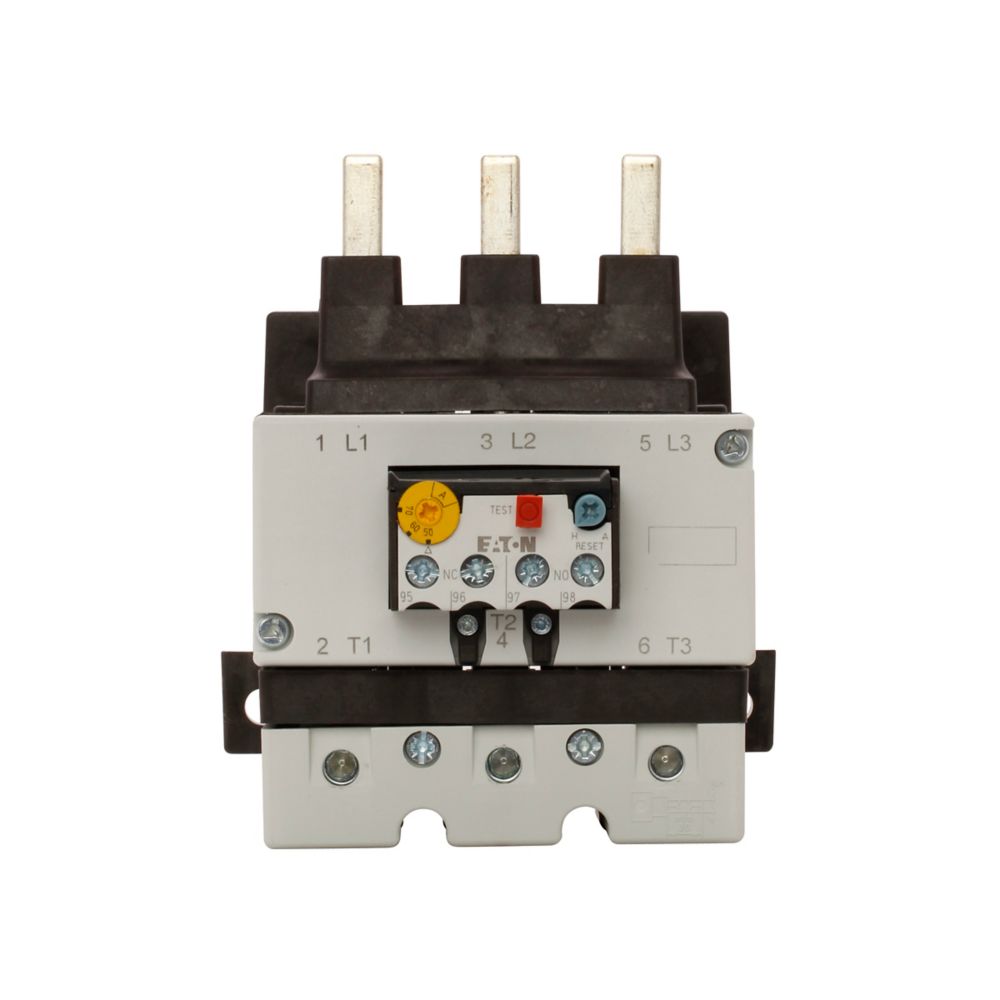

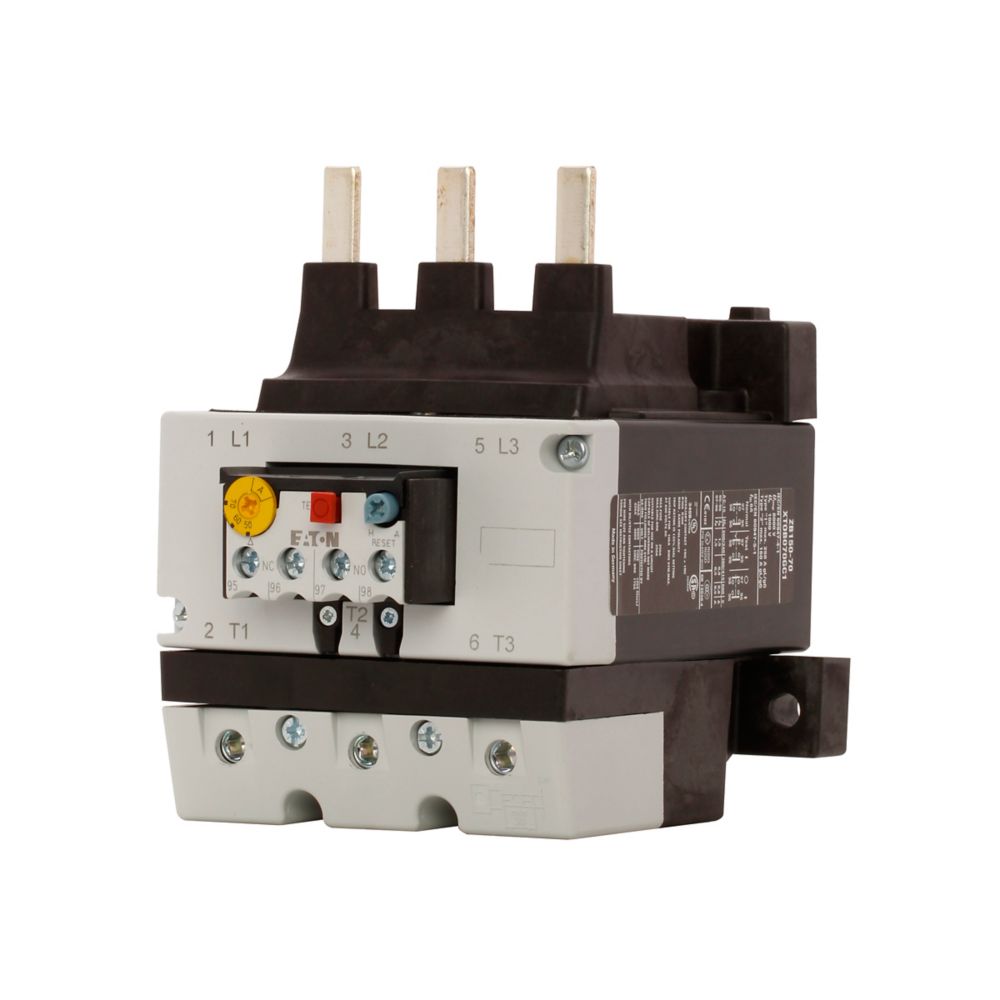

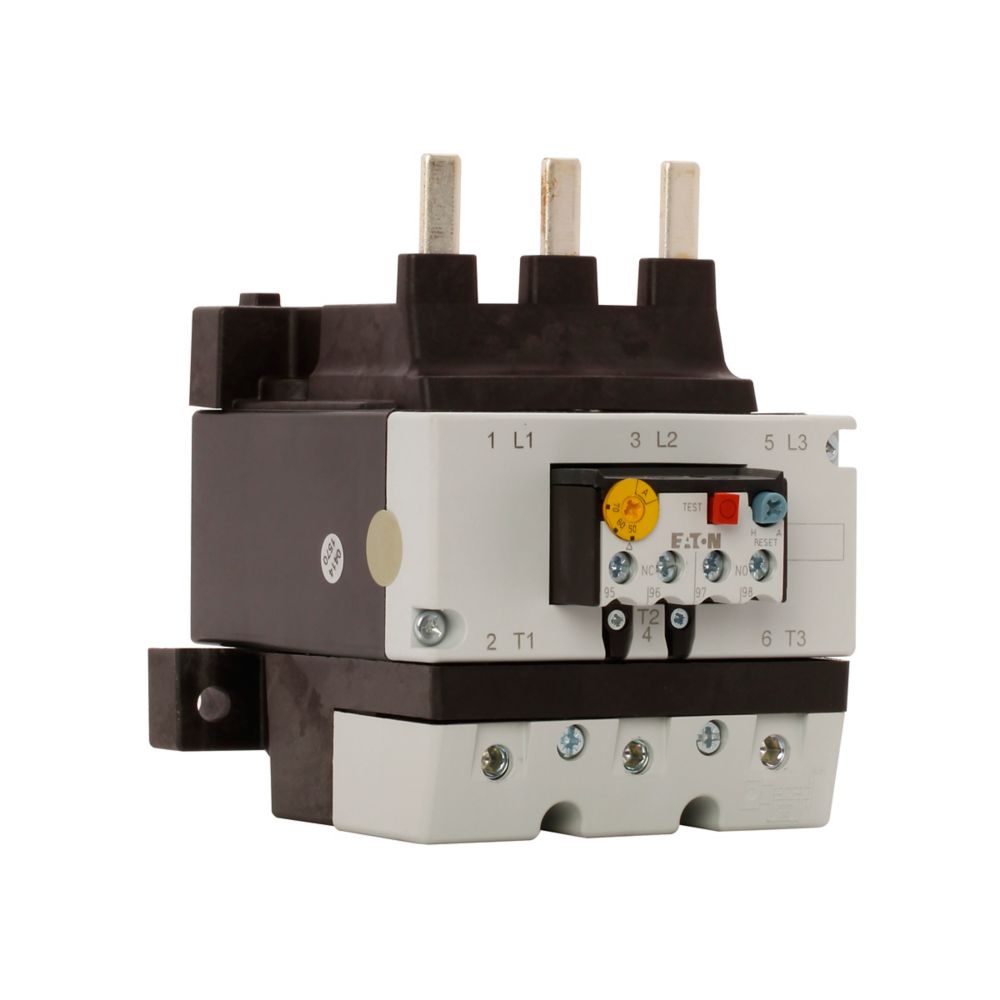

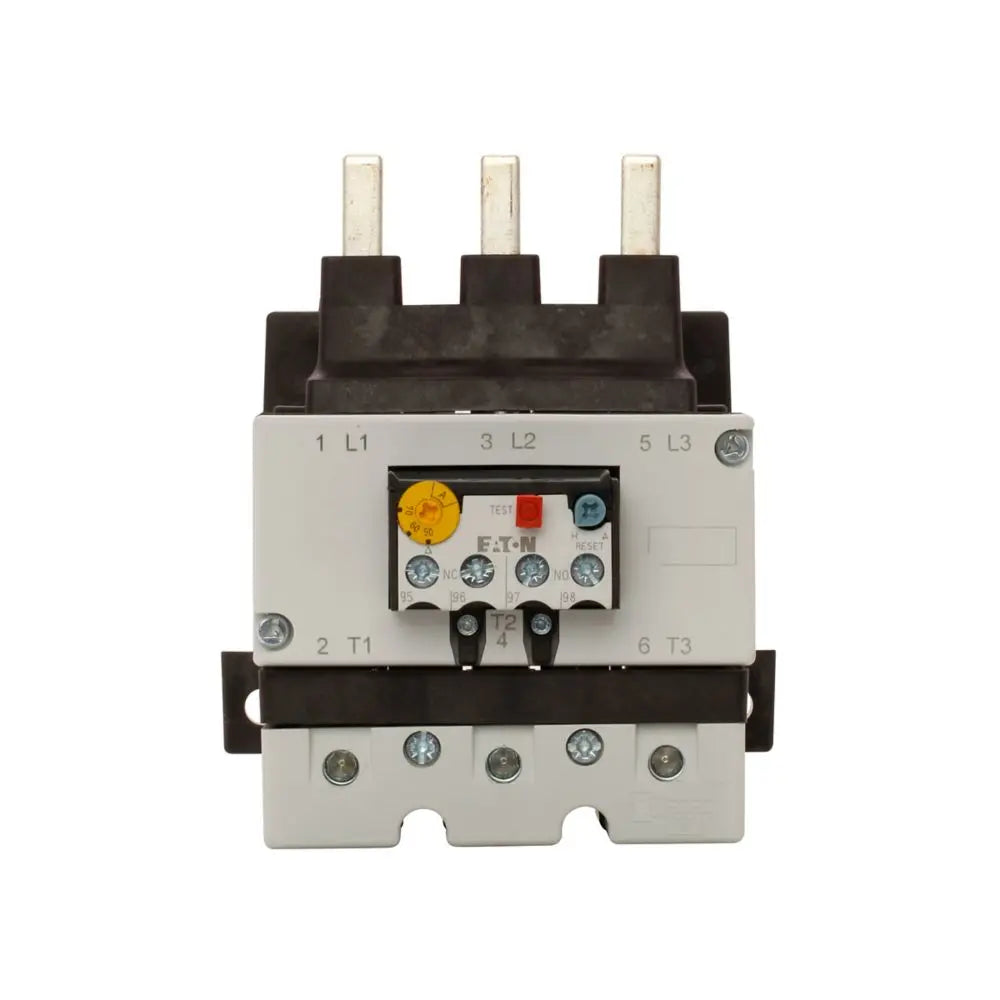

XTOB050GC1 is a Cutler Hammer IEC bimetallic overload relay designed for motor protection with adjustable current from 35 to 50 amps.This 3-pole overload relay features a Frame G design with 1NO-1NC auxiliary contacts and direct mounting capability, providing reliable thermal motor protection compliant with IEC standards.
- Amperage range: 35-50A adjustable
- Voltage rating: up to 690 VAC
- Poles: 3-pole configuration
- Mounting type: Direct mount
- Frame: G-frame
- Contact configuration: 1NO-1NC auxiliary contacts
- Trip class: 10A (Class 10)
- Thermal overload type: Bimetallic
- Ambient temperature compensated
- IEC rated for motor protection
- Interrupt rating suitable for motor control applications
- Certifications: IEC compliant
Specifications
- Part Number: XTOB050GC1
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : XT Series
- Type : XTOB
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- Amperage Maximum : 50
- Amperage Minimum : 35
Product Data
- UPC : 015082784625
- Dimensions : 5.28 in x 5.43 in x 4.65 in (Length/Depth x Height x Width)
- Weight : 2
