Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description
XTOB024DC1DP

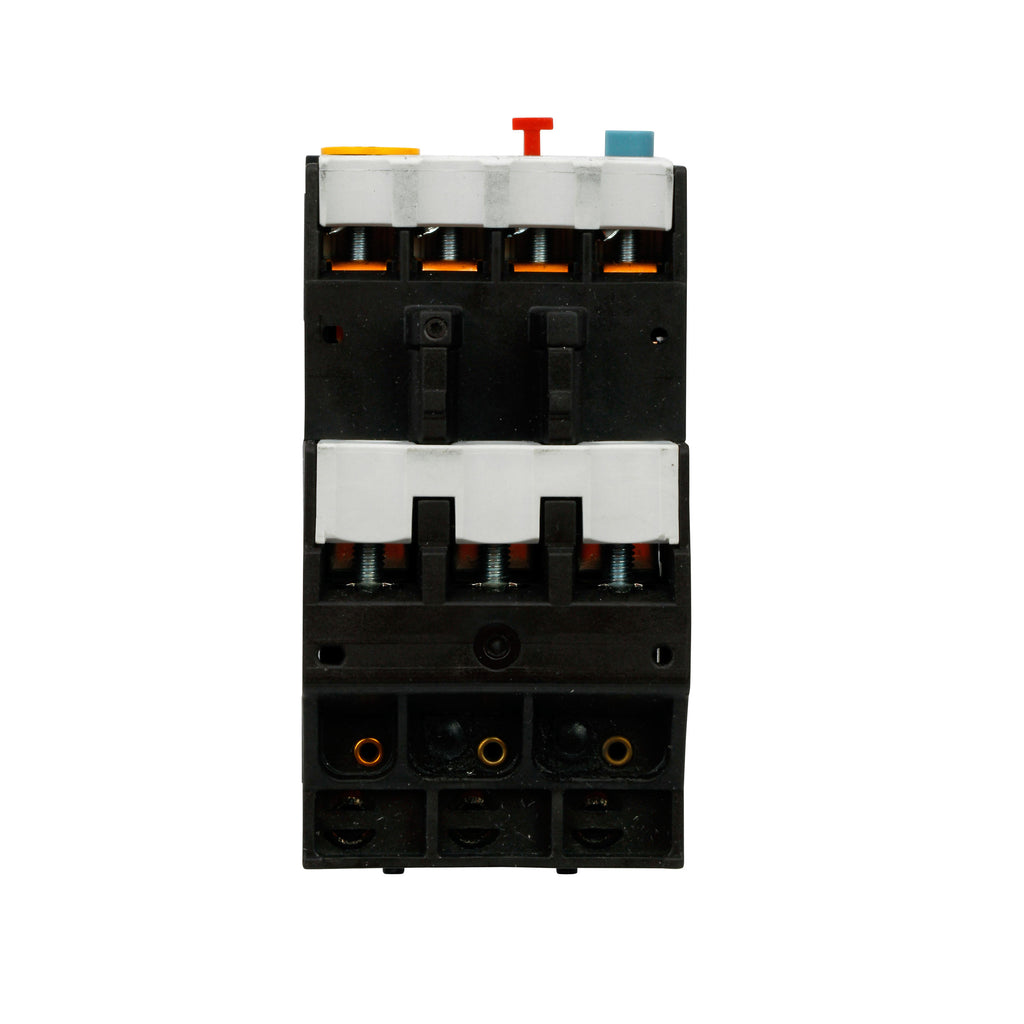

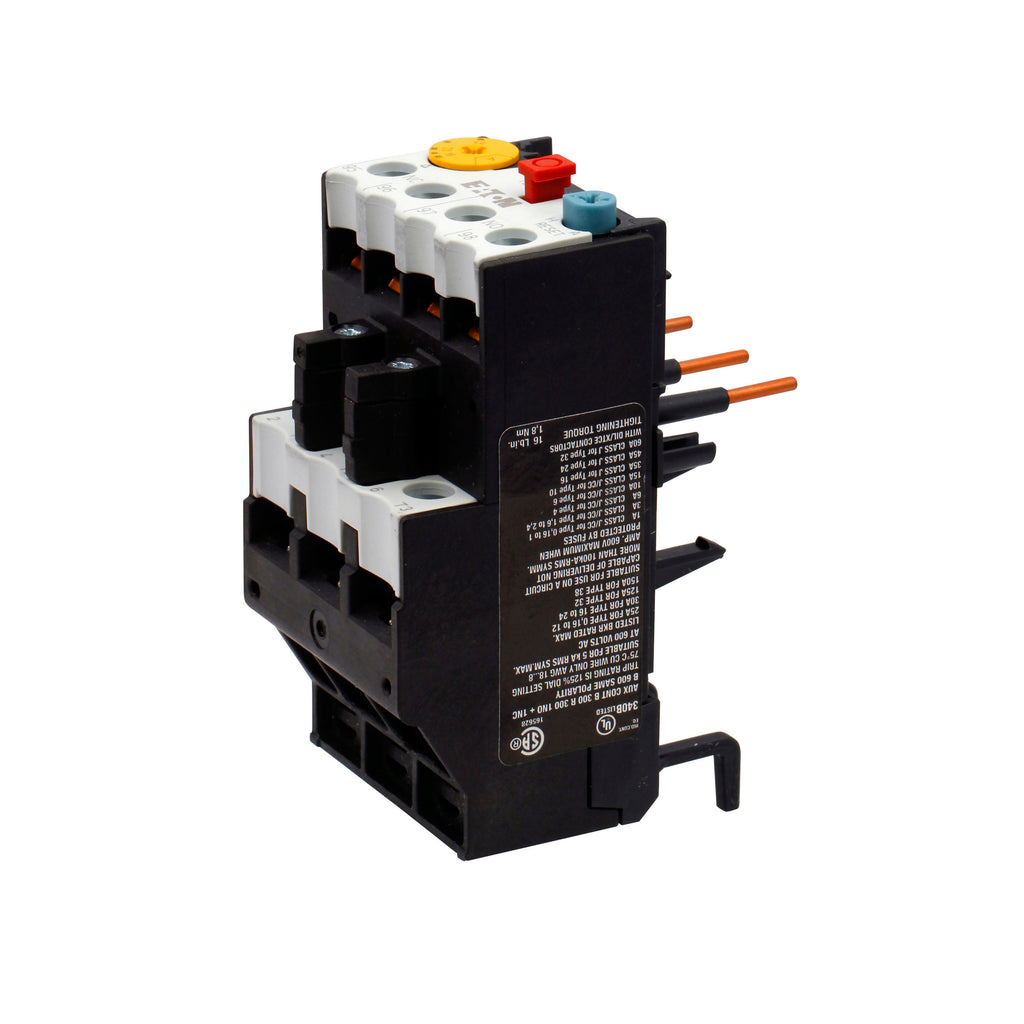

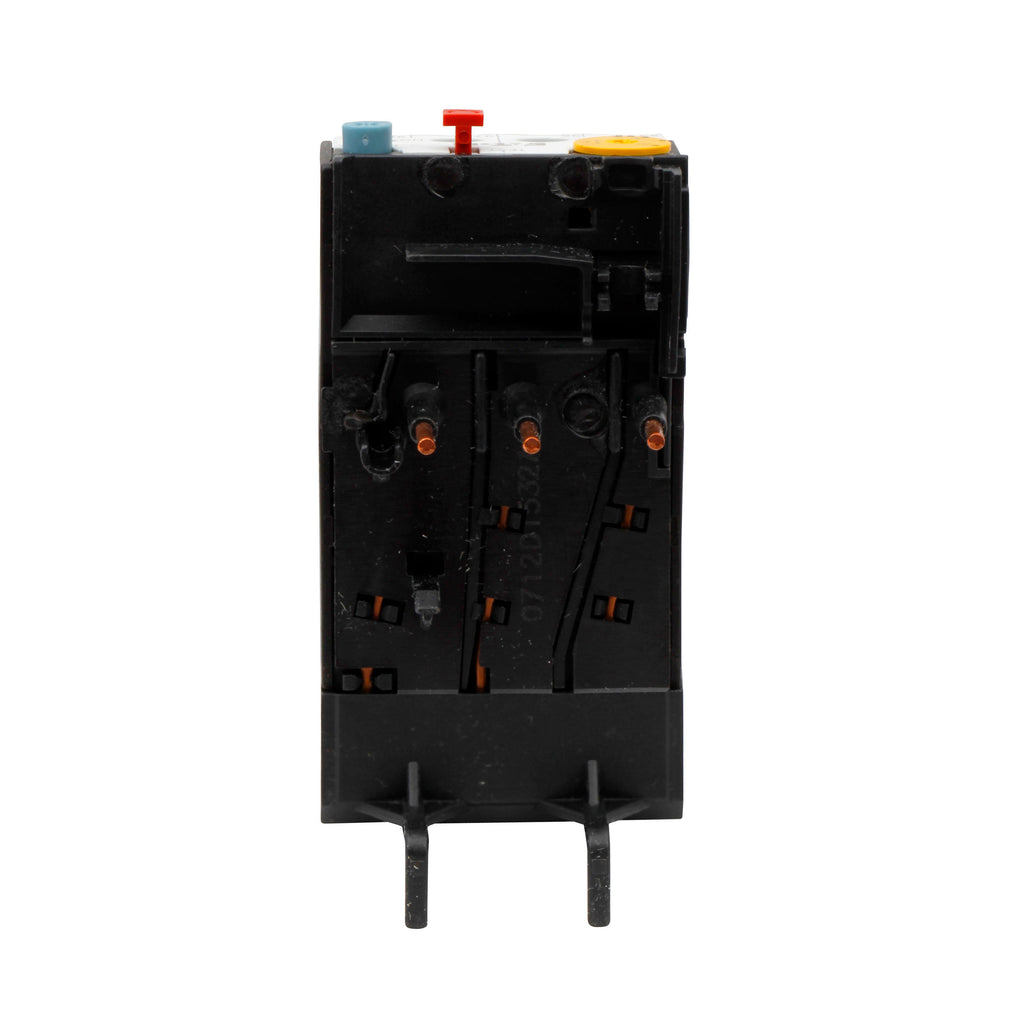

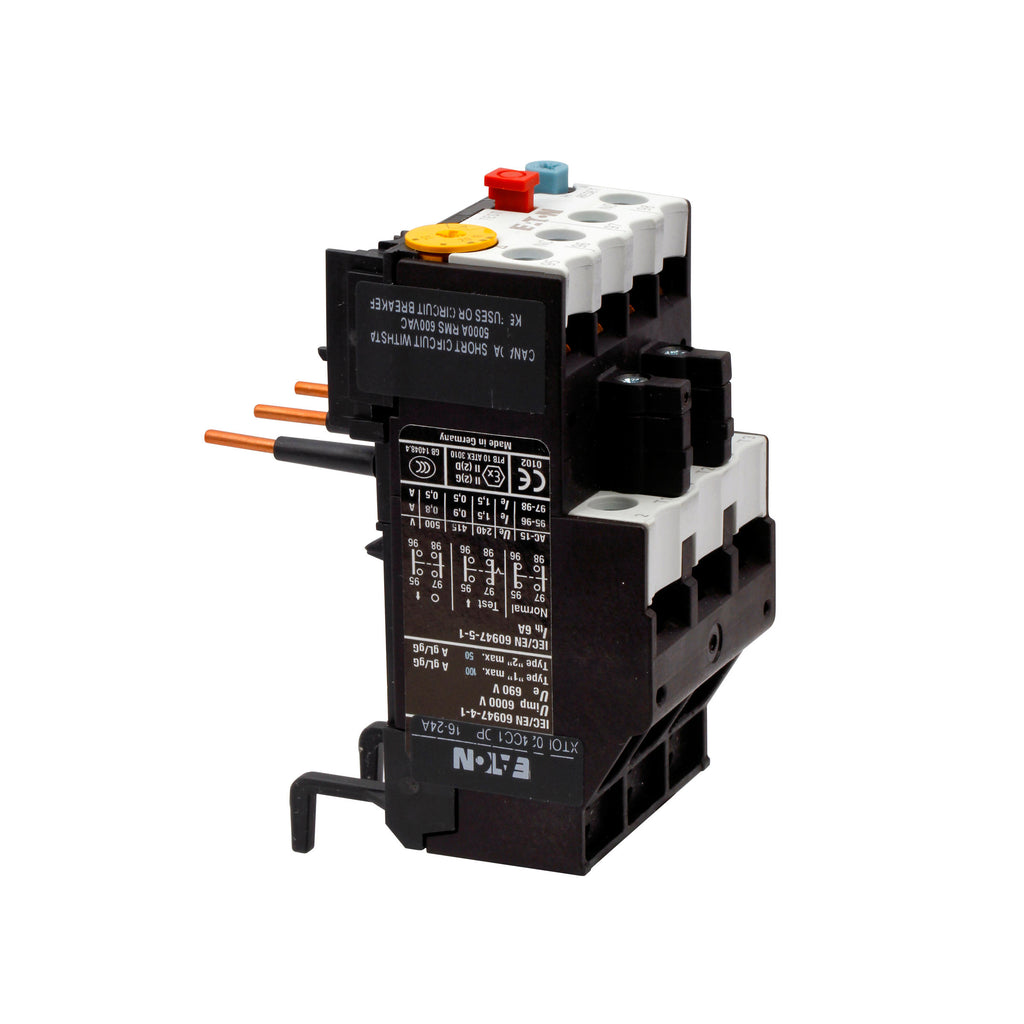

XTOB024DC1DP is an Eaton XT IEC bimetallic overload relay designed for motor protection in industrial applications. This relay provides reliable thermal overload protection for motors operating within its rated current range. The XTOB024DC1DP features a frame D design and is compatible with 30-45A contactors. It offers a current adjustment range of 16 to 24 amps and is built for use in IEC motor control circuits. The relay includes one normally open (NO) and one normally closed (NC) auxiliary contact for signaling and control functions. Its robust construction ensures dependable operation in demanding environments.
- Part Number: XTOB024DC1DP
- Manufacturer: Cutler Hammer (Eaton)
- Series: Eaton XT IEC
- Frame: D
- Current Range: 16-24A
- Voltage Rating: 690VAC
- Contact Rating: 6A
- Mounting Type: Contactor Frame
- Auxiliary Contact: 1NO/1NC
- Compatible Contactor Range: 30-45A
- Protection Type: Bimetallic Thermal Overload
- Application: Motor Control
Specifications
- Part Number: XTOB024DC1DP
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : XT Series
- Type : XTOB
- Relay Style : Thermal
- Amperage Maximum : 24
- Amperage Minimum : 16
Product Data
- UPC : 782116978250
- GTIN : 00782116978250
- Country of Origin : United States
- Dimensions : 2.36 in x 3.58 in x 3.27 in (Length/Depth x Height x Width)
- Weight : 0.6 lb
- Certification : UL/CUL listed
