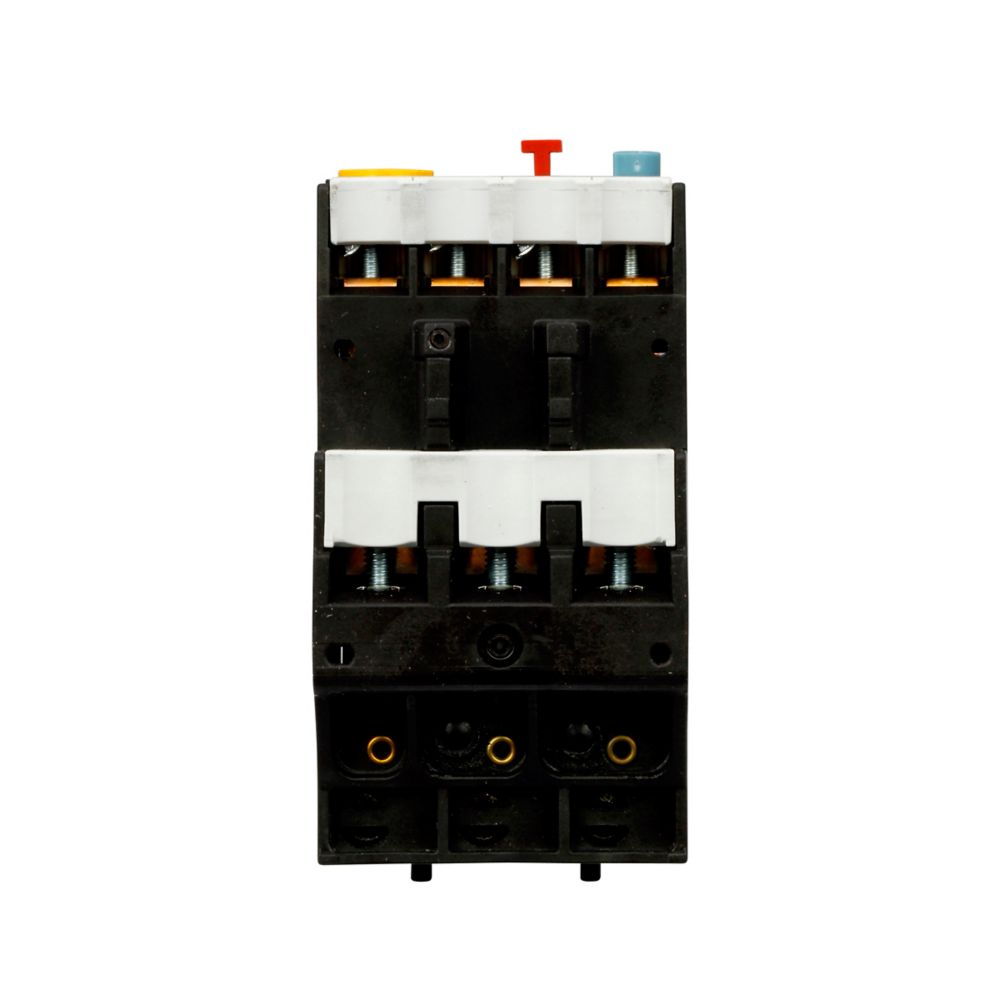

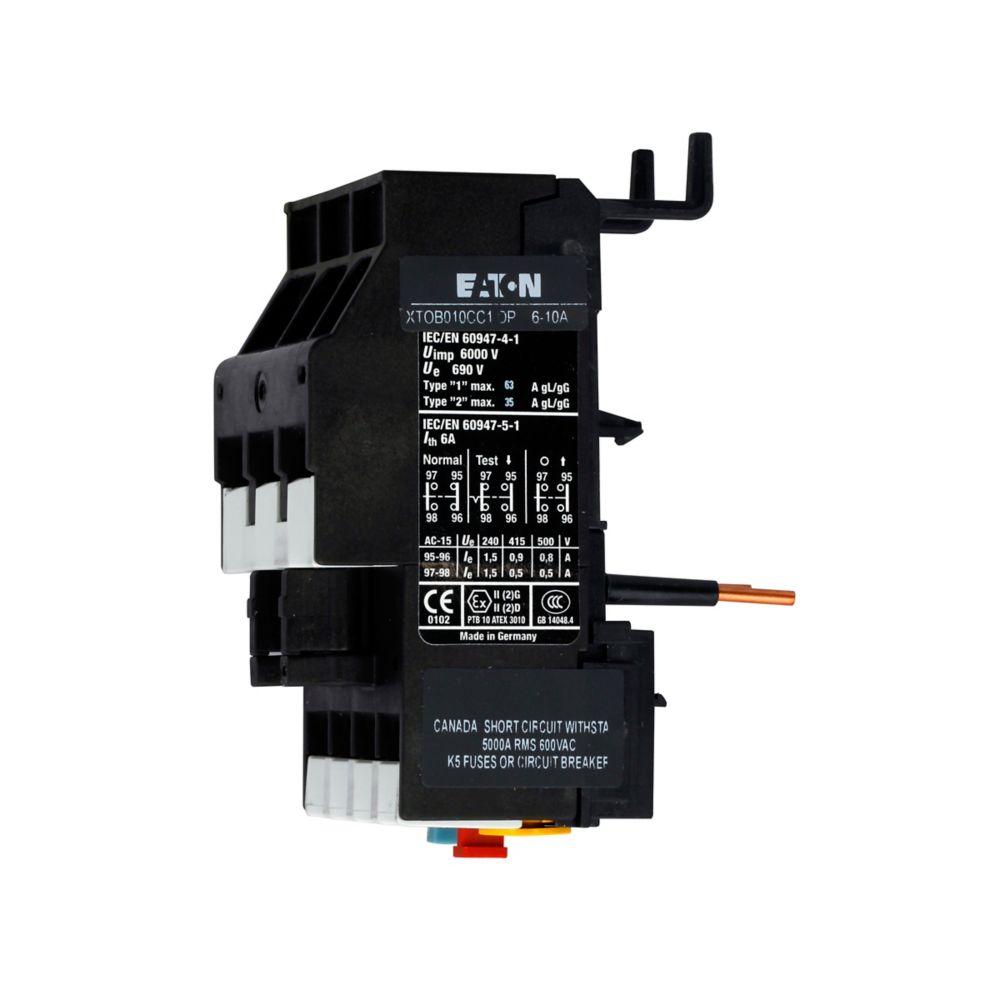

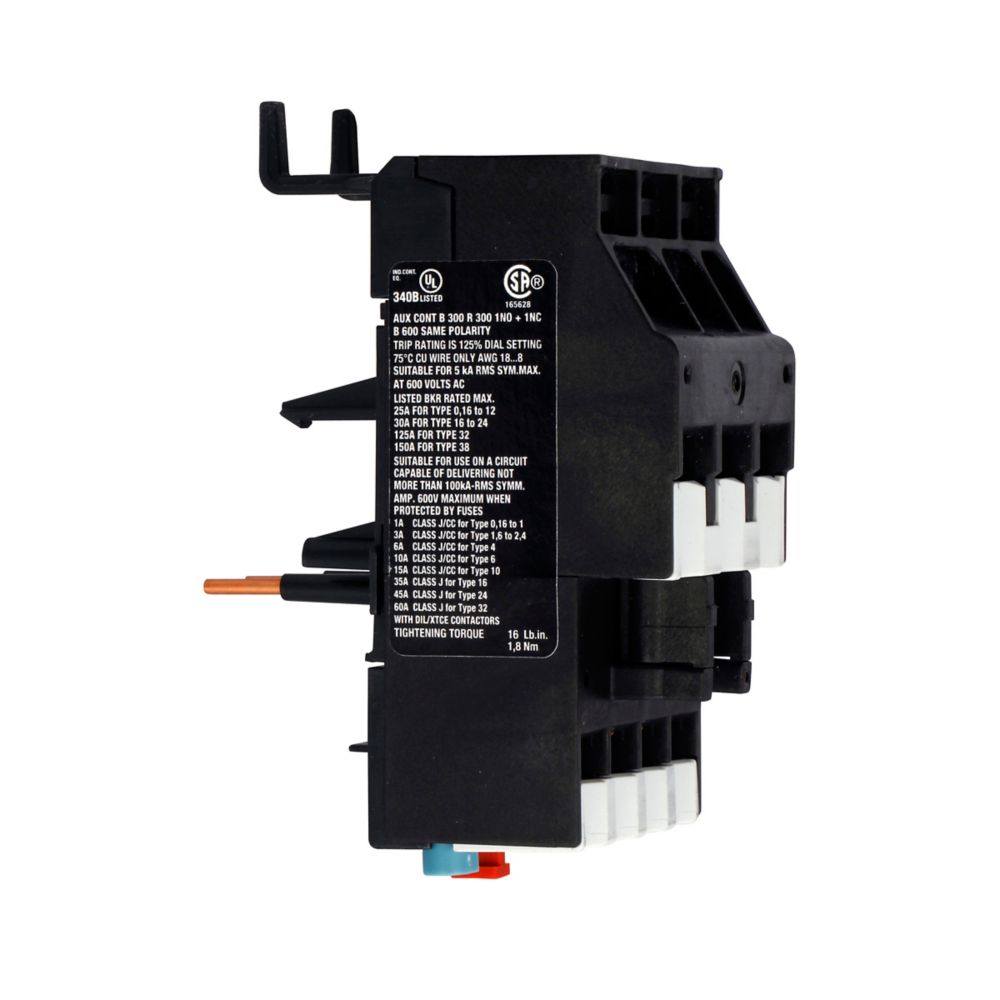

XTOB016DC1DP - Cutler Hammer Eaton 16A Thermal Overload Relay 1NO 1NC Screw Termination C25 Series

XTOB016DC1DP

This overload relay features a current range of 10-16 amps, 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, and screw-type terminations for both relay contacts and coil. It is part of the Eaton C25 series, suitable for definite purpose motor protection with a voltage rating up to 600V AC and frequency of 50/60 Hz. The relay provides reliable thermal protection with a bimetallic trip unit and is compatible with Eaton C25D contactors.

Key Specifications
• Manufacturer: Cutler Hammer Eaton
• Part Number: XTOB016DC1DP
• Current Range: 10-16 Amps adjustable
• Contact Form: 1 Normally Open (NO), 1 Normally Closed (NC)
• Termination Type: Screw
• Voltage Rating: Up to 600V AC
• Frequency: 50/60 Hz
• Series/Frame: C25 Series
• Trip Unit: Thermal (bimetallic)
• Mounting Type: Direct mount with compatible contactors
• Interrupt Rating: Not specified
• Certifications: Eaton standard industrial certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: XTOB016DC1DP
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Relay Style : Thermal
• Amperage Maximum : 16
• Amperage Minimum : 10



Product Data

• UPC : 78211697824
• GTIN : 00782116978243
• Country of Origin : United States
• Dimensions : 4 in x 2.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : UL/CUL listed
