XTOB006BC1 - Cutler Hammer 4-6A Thermal Overload Relay, 3 Poles, Class 10 Trip, Direct Mount, 45mm Frame

XTOB006BC1

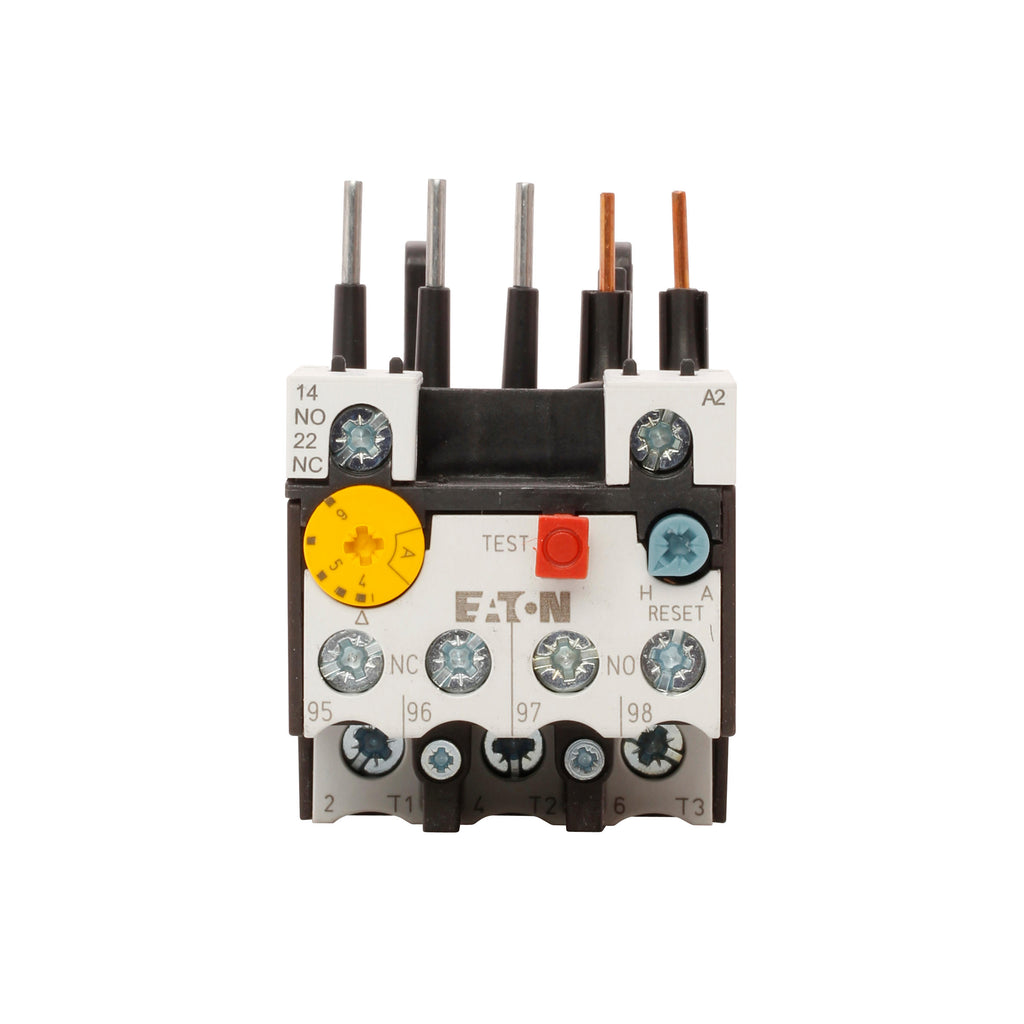

XTOB006BC1 is a Cutler Hammer thermal overload relay with an adjustable current range of 4 to 6 amps designed for motor control applications.This bimetallic overload relay features a 45mm frame size, 3 poles, and a Class 10 trip rating. It includes 1 normally open (N.O.) and 1 normally closed (N.C.) auxiliary contact, supports manual or automatic reset, and mounts directly to Eaton XT series B frame contactors rated 7-15 amps. The device provides phase loss protection and is certified to ATEX, CE, CSA, and UL standards.

Key Specifications
• Current Range: 4-6 Amps
• Poles: 3
• Frame Size: 45 mm
• Trip Class: 10 (10 seconds or less)
• Auxiliary Contacts: 1 N.O., 1 N.C.
• Reset Type: Manual or Automatic
• Mounting: Direct mount to Eaton XT B frame contactors (7-15A)
• Certifications: ATEX, CE, CSA, UL
• Trip Type: Thermal bimetallic
• Phase Loss Protection: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOB006BC1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Temp Rating : -13–158 °F (-25–70 °C)
• Relay Style : Thermal
• Amperage Maximum : 6
• Amperage Minimum : 4

Product Data

• UPC : 782116978175
• GTIN : 04015082784393
• Dimensions : 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
• Weight : 0.7 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, ATEX, UL, CSA, IEC, EN
