Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description
XTOB001BC1

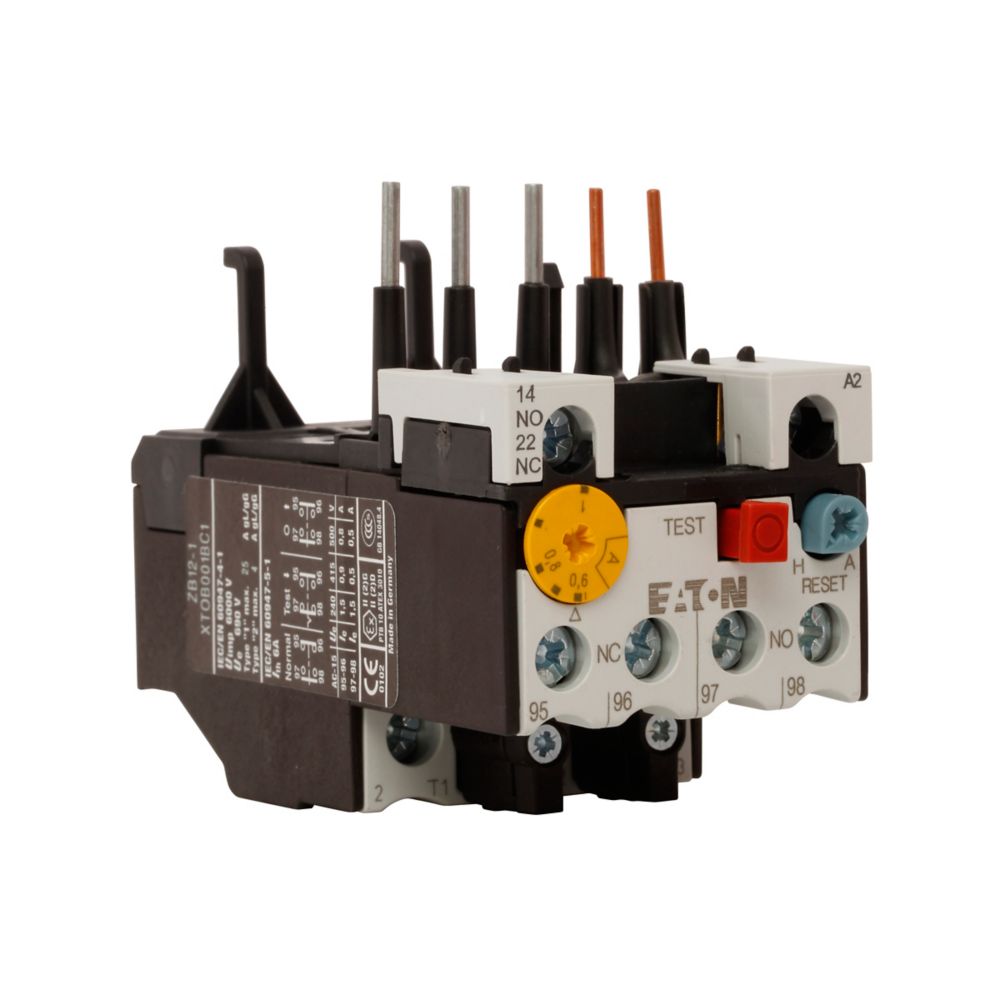

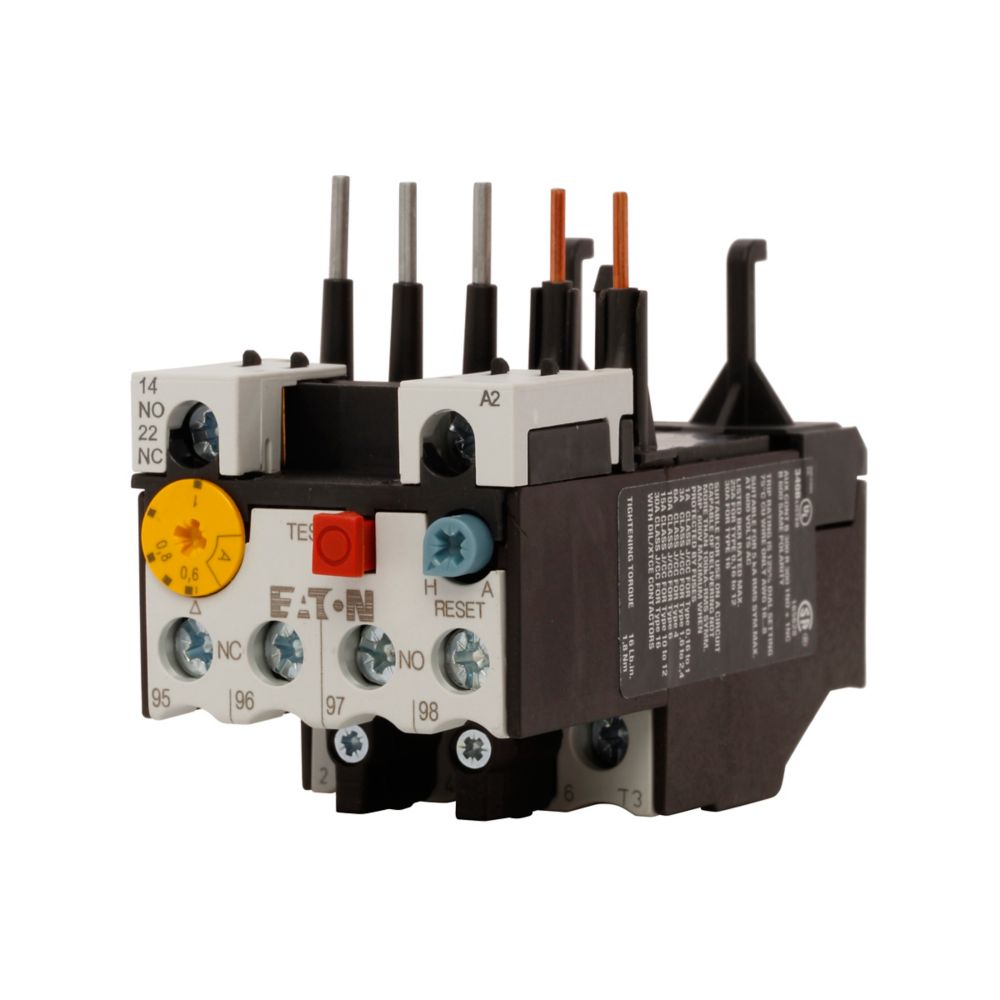

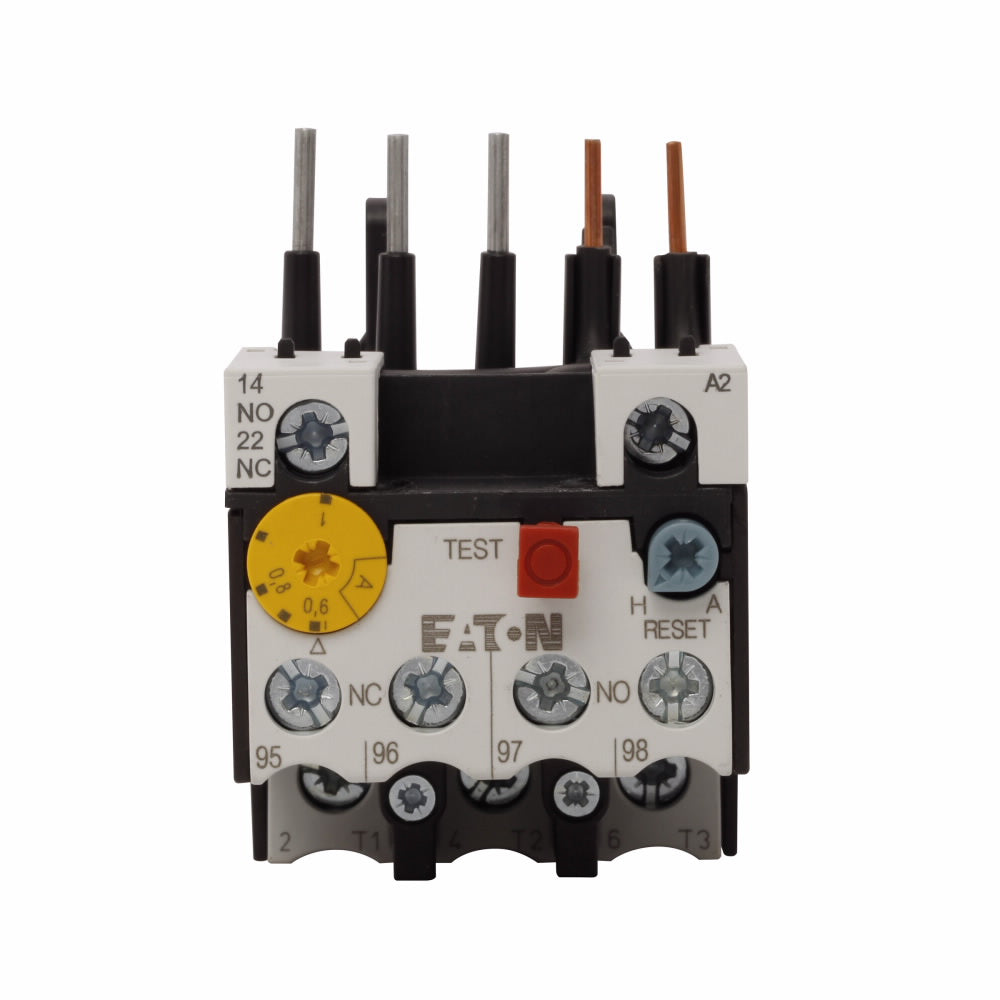

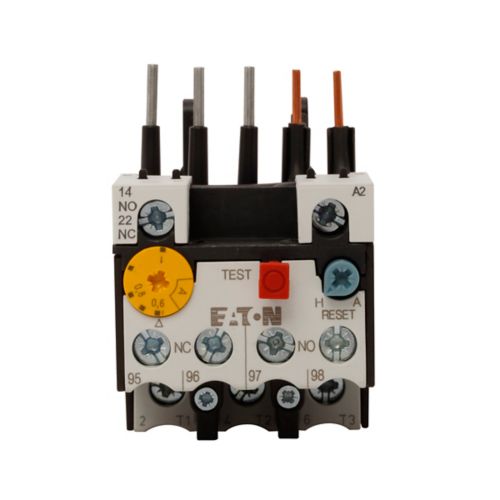

XTOB001BC1 is a Cutler Hammer XT Series IEC bimetallic overload relay designed for reliable motor protection in demanding applications.
This thermal overload relay offers adjustable overload protection with a 0.6-1A range, 45mm frame size, and direct mounting to contactors. It features 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts, manual and automatic reset options, and phase loss protection. Suitable for use with EEx e-motors and compliant with relevant IEC standards.
-
Key Specifications
- Part Number: XTOB001BC1
- Manufacturer: Cutler Hammer (Eaton)
- Series/Frame: XT Series, 45mm Frame
- Amperage Range: 0.6-1A
- Trip Unit: Bimetallic, Trip Class 10
- Contact Configuration: 1NO-1NC
- Mounting Type: Direct to contactor
- Certifications: Suitable for EEx e-motors, IEC compliant
- Reset: Manual and automatic
- Phase Loss Protection: Yes
- Voltage: Not specified in available data
- Poles: Not specified in available data
- Interrupt Rating: Not specified in available data
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: XTOB001BC1
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : XT Series
- Type : XTOB
- Relay Style : Thermal
- Amperage Maximum : 1
- Amperage Minimum : 0.6
Product Data
- UPC : 015082784359
- GTIN : 04015082784355
- Dimensions : 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
- Weight : 0.5
