Description
XTMF9A00TD

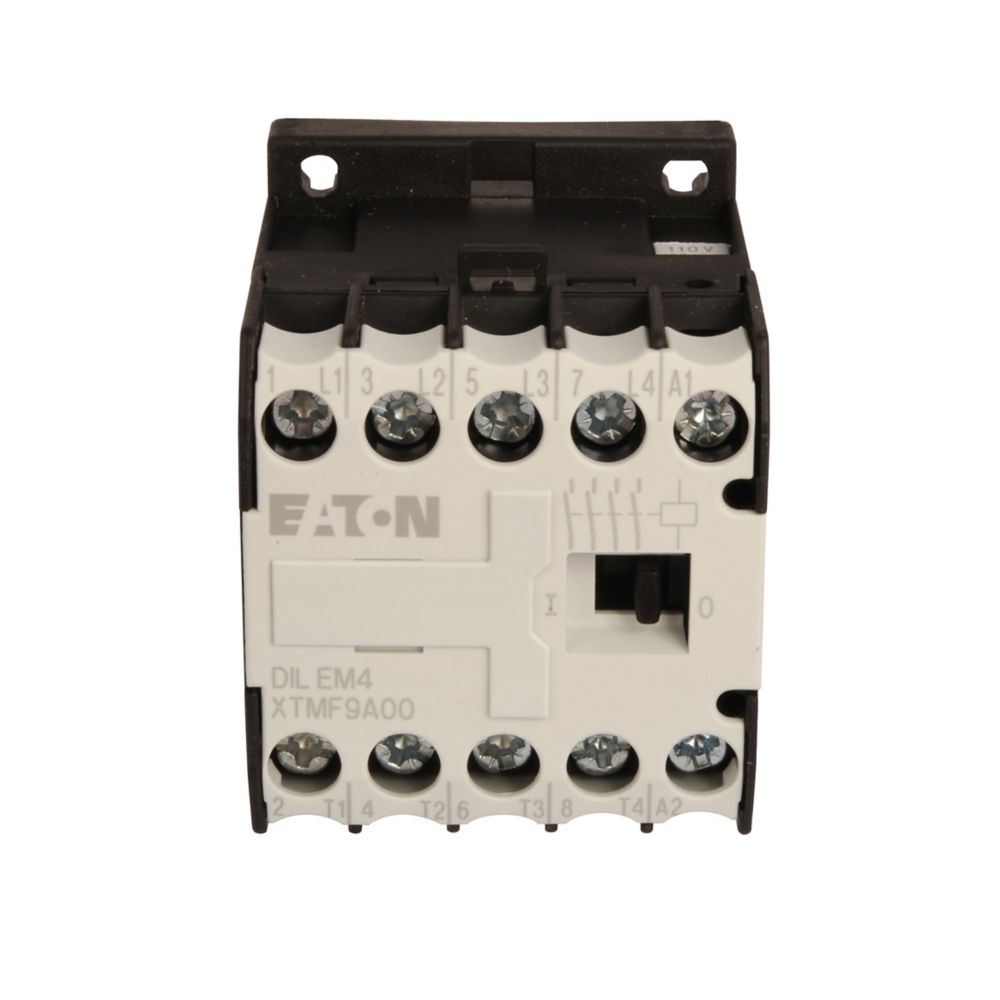

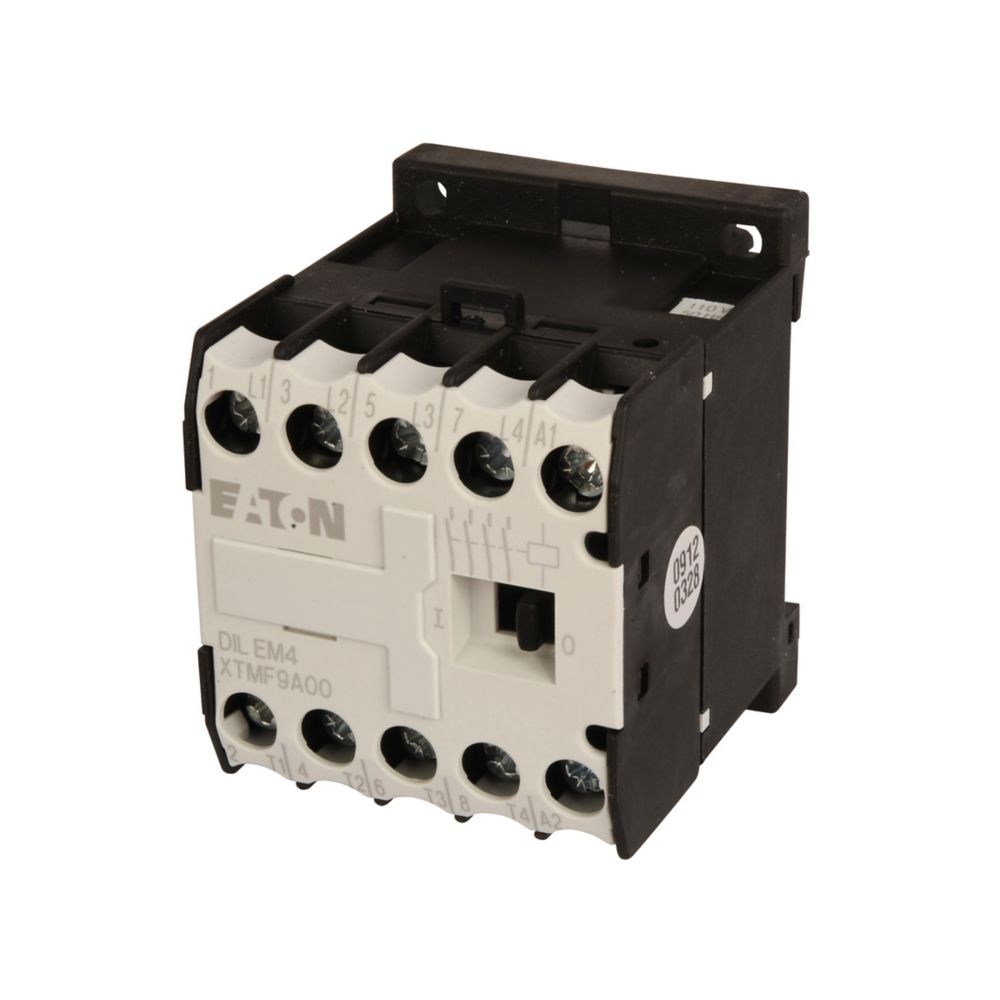

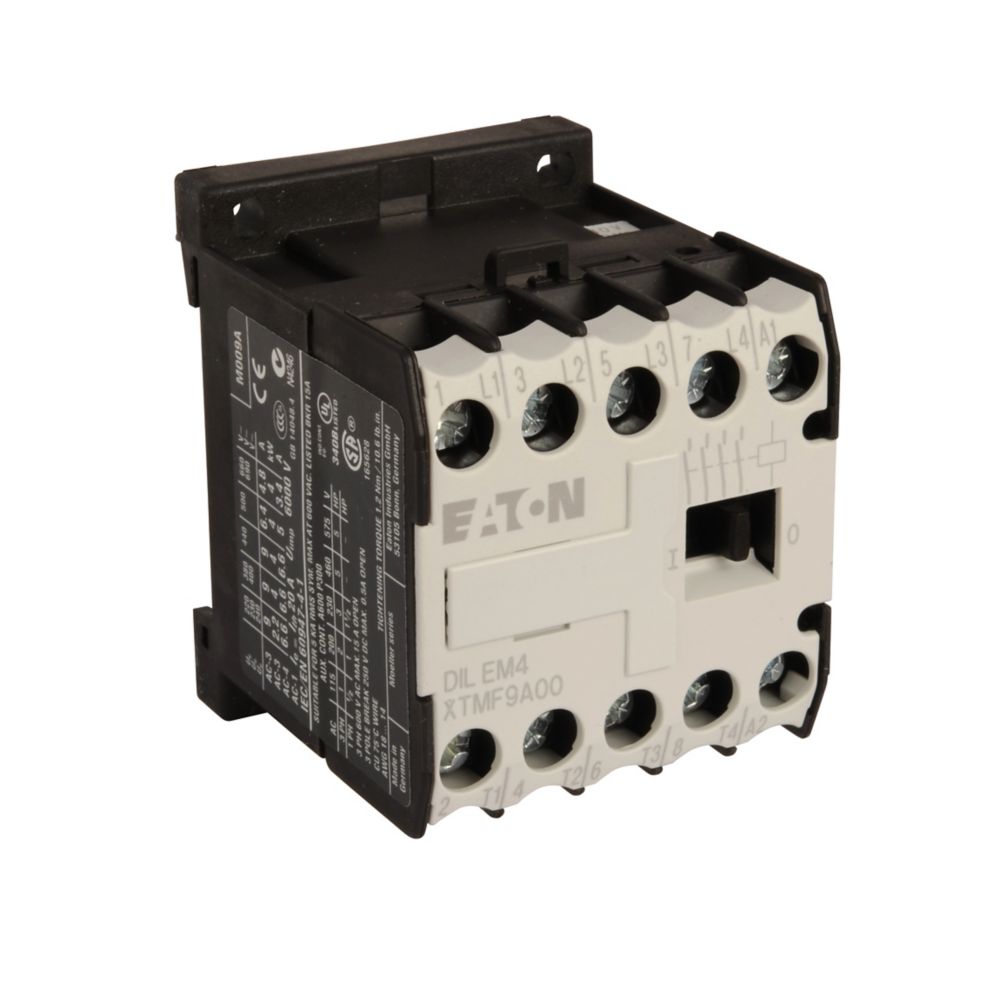

XTMF9A00TD is an Eaton XT IEC mini contactor designed for full voltage non-reversing motor control applications.This compact 45 mm wide contactor features a 4-pole configuration with a coil voltage of 24 VDC and a rated operational current of 8.8 amps. It supports screw terminal connections and is part of Eaton's XT IEC series, offering reliable switching performance with a 20A interrupt rating. The device is non-reversing and suitable for control voltages from 24 V to 600 V AC or DC drives.
- Amperage: 8.8 A
- Voltage: 24 VDC coil
- Poles: 4
- Mounting Type: Panel mount (45 mm width)
- Interrupt Rating: 20 A
- Series/Frame: XT IEC
- Trip Unit: Full voltage non-reversing
- Terminal Type: Screw terminals
- Enclosure Type: IP20
- Certifications: Eaton standard industrial certifications
Additional Information
This XT IEC Mini Contactor includes a 24 VDC coil.
Specifications
- Part Number: XTMF9A00TD
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 25kA@600V
- Connection : Bolt-On
- Functions : I - Instantaneous
- Configuration : Non-Reversing
- Aux Contacts : 0 NO + 0 NC
- Protection : Magnetic Only
Product Data
- UPC : 786685364018
- Country of Origin : Germany
- Dimensions : 2 in x 1.5 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
